Consult-II Basic Operation

CAUTION: If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be detected in self-diagnosis depending on control unit which carry out CAN communication.
  1. With the ignition switch OFF, connect CONSULT-II and CONSULT-II CONVERTER to the data link connector, then turn ignition switch ON.

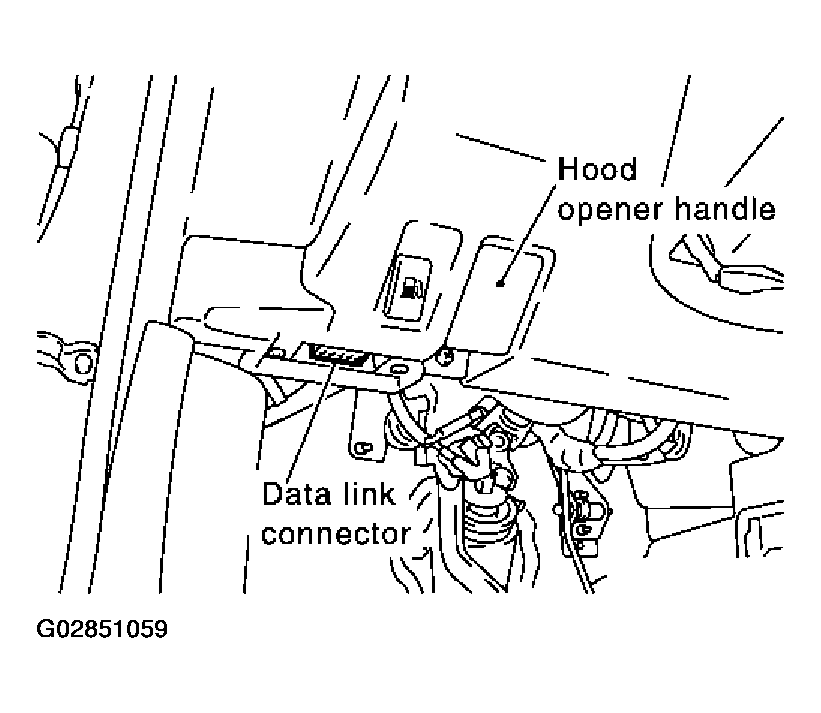

    Fig 1: Connecting Consult-II And Consult-II Converter To Data Link Connector
    G02851059Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Touch "START (NISSAN BASED VHCL)".
    Fig 2: Displaying Consult-II
    G02851060Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Touch "BCM" on "SELECT SYSTEM" screen.
    1. If "BCM" is not indicated, go to CONSULT-II DATA LINK CONNECTOR (DLC) CIRCUIT .
    Fig 3: Displaying Select System
    G02851061Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Touch "FLASHER" on "SELECT TEST ITEM" screen.
    Fig 4: Displaying Select Test Item
    G02851062Courtesy of NISSAN MOTOR CO., U.S.A.
