Can Communication Unit: Schematic

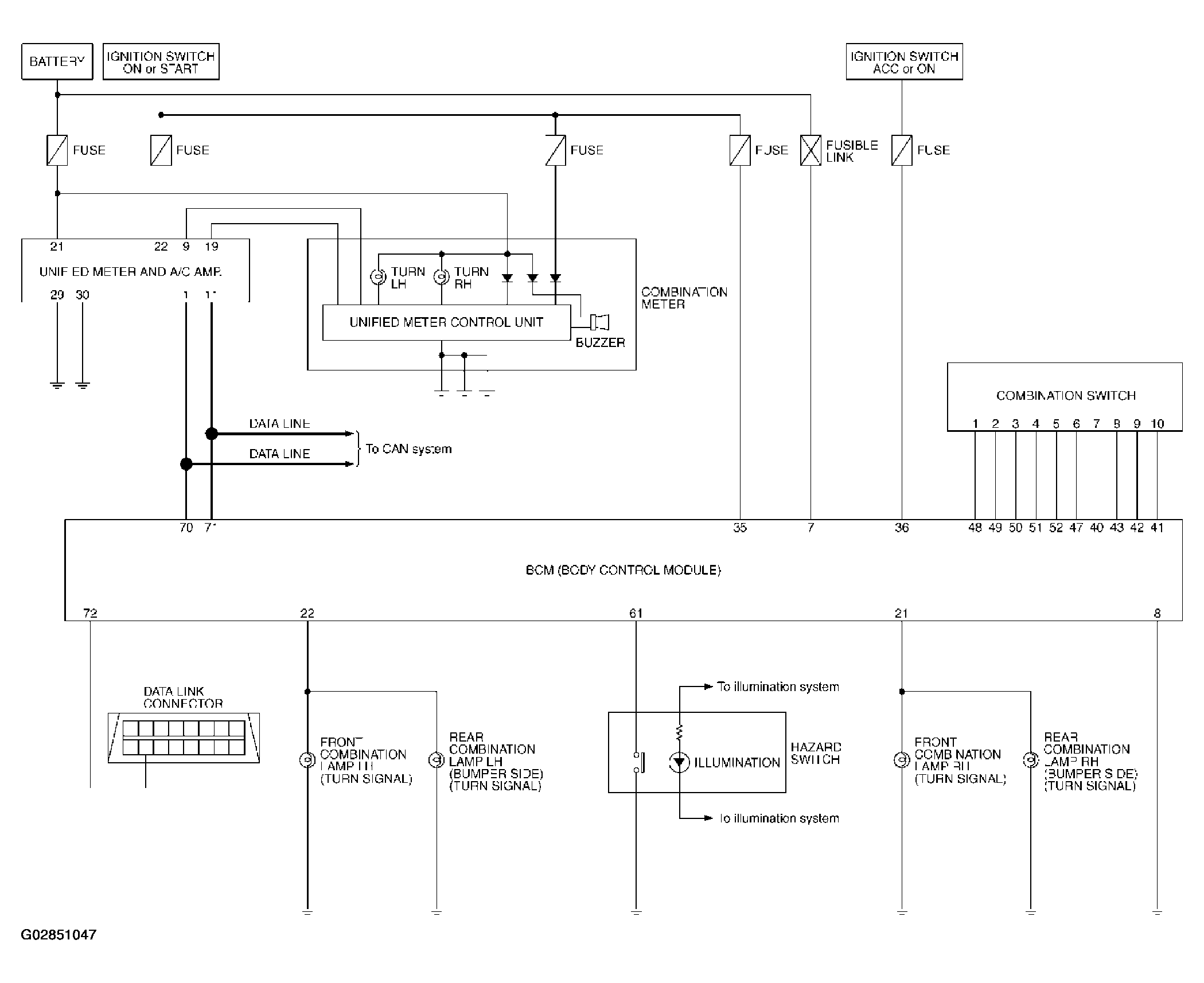

Fig 1: Schematic Diagram Of Turn Signal And Hazard Warning Lamps

G02851047

Courtesy of NISSAN MOTOR CO., U.S.A.
