2003 - Accessories & Equipment - Audio Antenna System
>>
Audio Antenna
>>
Wiring Diagram-M/ANT-
Wiring Diagram-M/ANT-
NOTE:
For "PG-POWER", refer to
SYSTEM WIRING DIAGRAMS
.

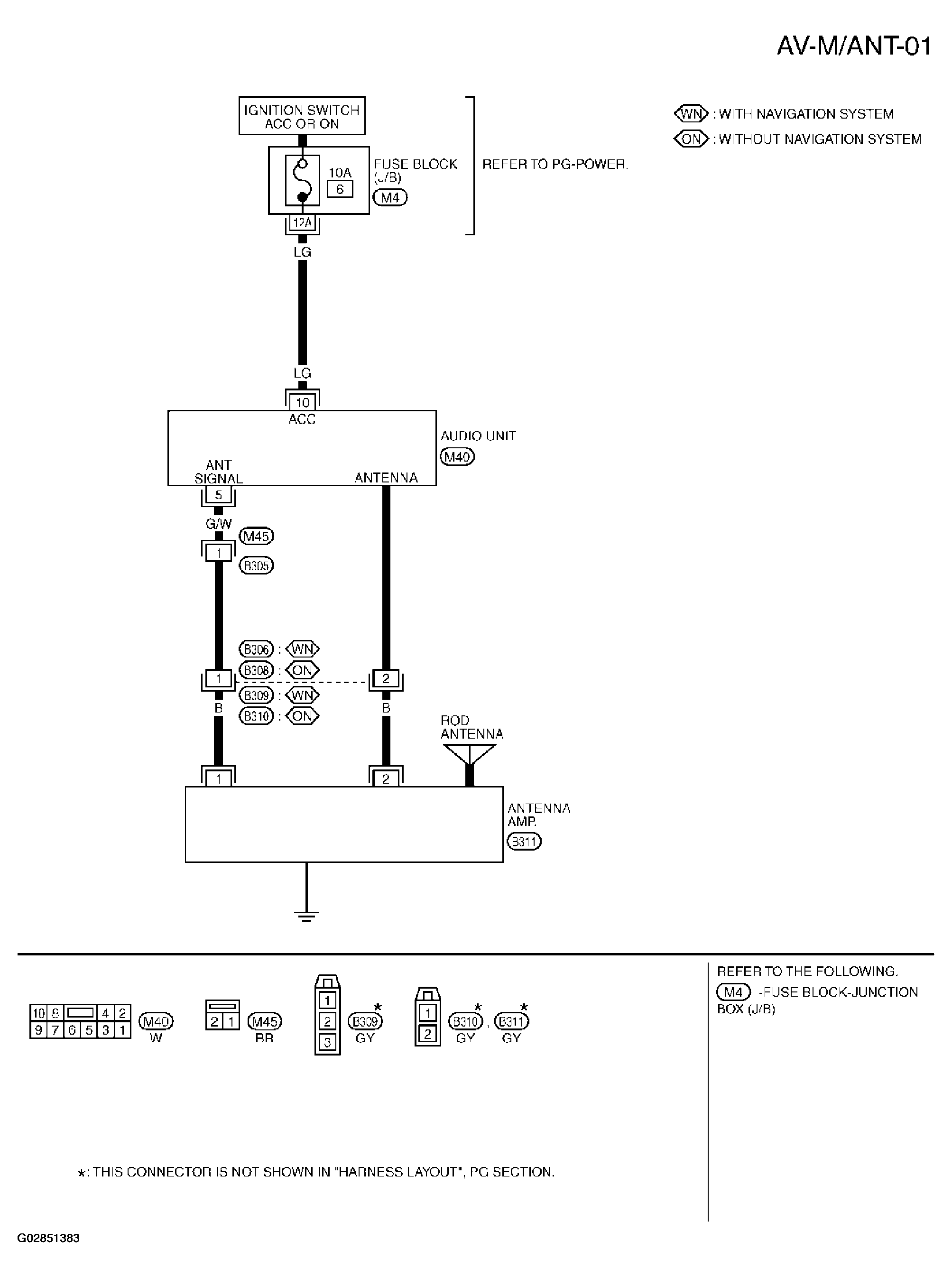

Fig 1: Wiring Diagram (AV-M/ANT-01)
Courtesy of NISSAN MOTOR CO., U.S.A.
