Removal and Installation of Antenna Amp.: Removal

  1. Remove luggage side finisher lower (LH). Refer to , "LUGGAGE FLOOR TRIM LUGGAGE FLOOR TRIM"
  2. Remove luggage floor carpet and spare tire cover. Refer to , "LUGGAGE FLOOR TRIM ".
  3. Remove screw (1) and remove antenna amp.

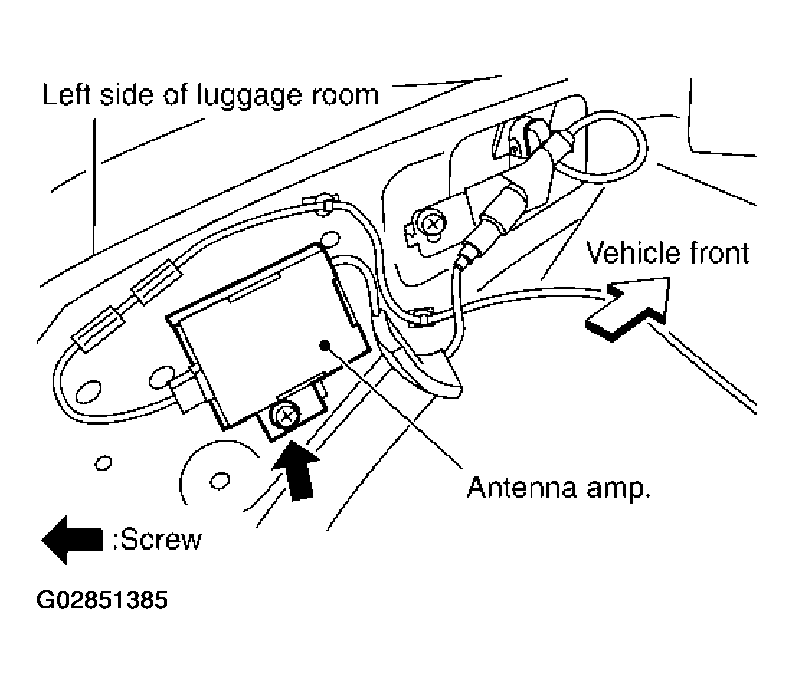

    Fig 1: Removing Screw And Antenna Amp
    G02851385Courtesy of NISSAN MOTOR CO., U.S.A.


  1. Remove luggage side finisher lower (LH). Refer to , "LUGGAGE FLOOR TRIM ".
  2. Remove antenna rod and remove antenna nut.
  3. Disconnect antenna amp. plug.
  4. Remove screw and remove antenna assembly.
  5. Remove antenna base.
