Warning Lamps: Schematic

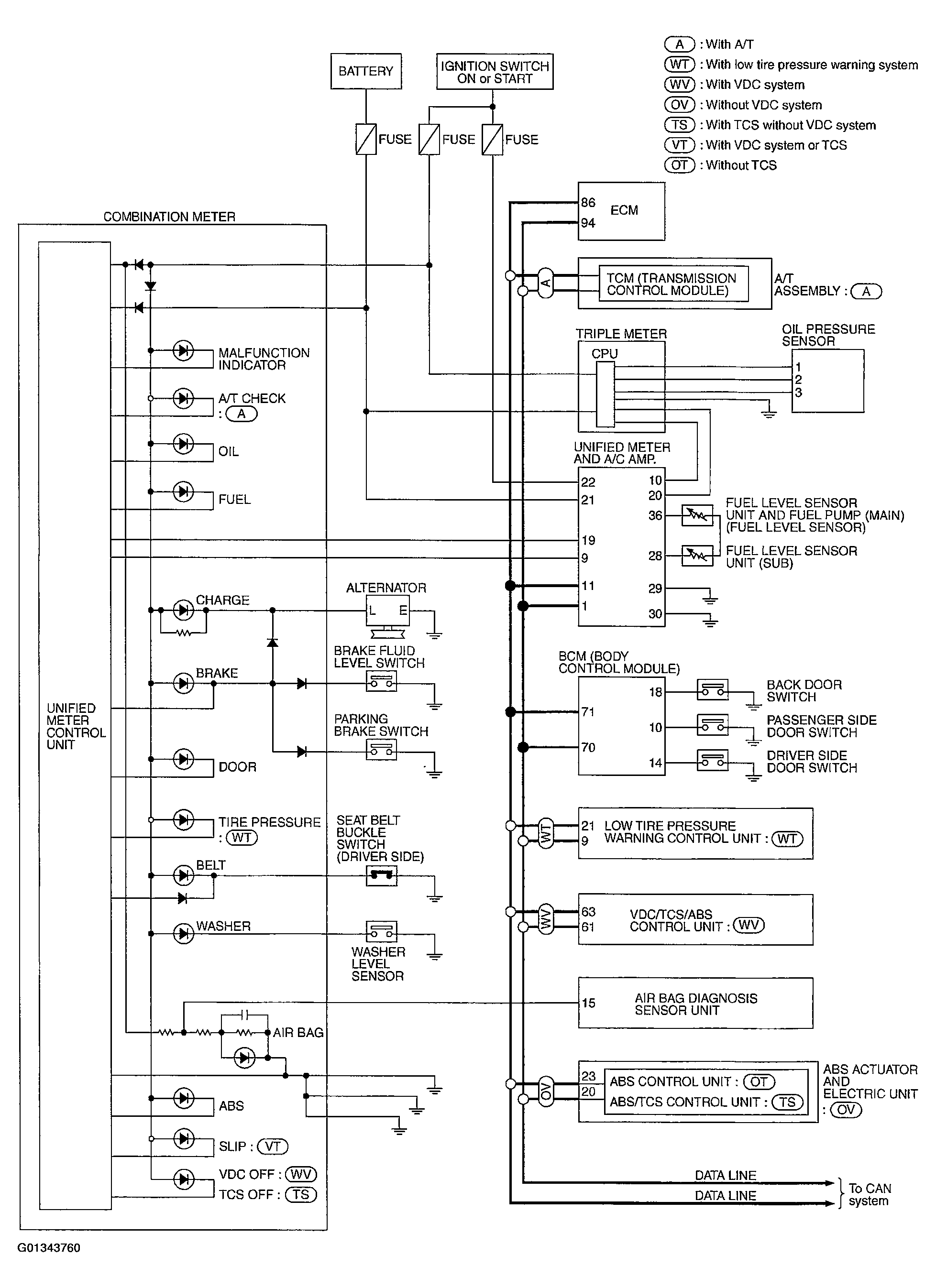

Fig 1: Warning Lamps Schematic

G01343760

Courtesy of NISSAN MOTOR CO., U.S.A.
