Light Warning Chime Does Not Operate

1. CHECK WARNING CHIME OPERATION

   Check except for headlamp warning chime operation.

   Does warning chime sound?

   Yes: GO TO 2.

   No: Go to "ALL WARNINGS ARE NOT OPERATED  ".

2. CHECK BCM INPUT SIGNAL

With "LIGHT WARN ALM" on the data monitor, confirm "TAIL LAMP SW" turn ON/OFF when lighting switch is operated.

When lighting switch is in 1st position: TAIL LAMP ON

When lighting switch is OFF: TAIL LAMP OFF

OK or NG

OK: Replace BCM. Refer to REMOVAL AND INSTALLATION OF BCM .

NG: Replace lighting switch. Refer to LIGHTING AND TURN SIGNAL SWITCH .

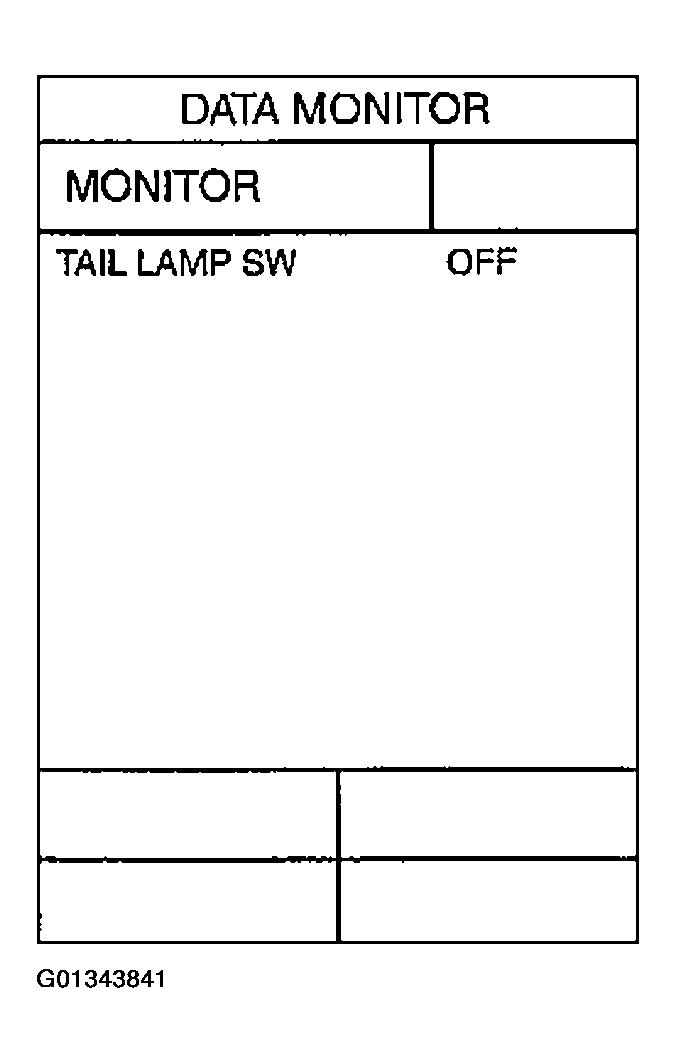

Fig 1: Monitor Tail Lamp SW Display

Courtesy of NISSAN MOTOR CO., U.S.A.
