Component Parts and Harness Connector Location

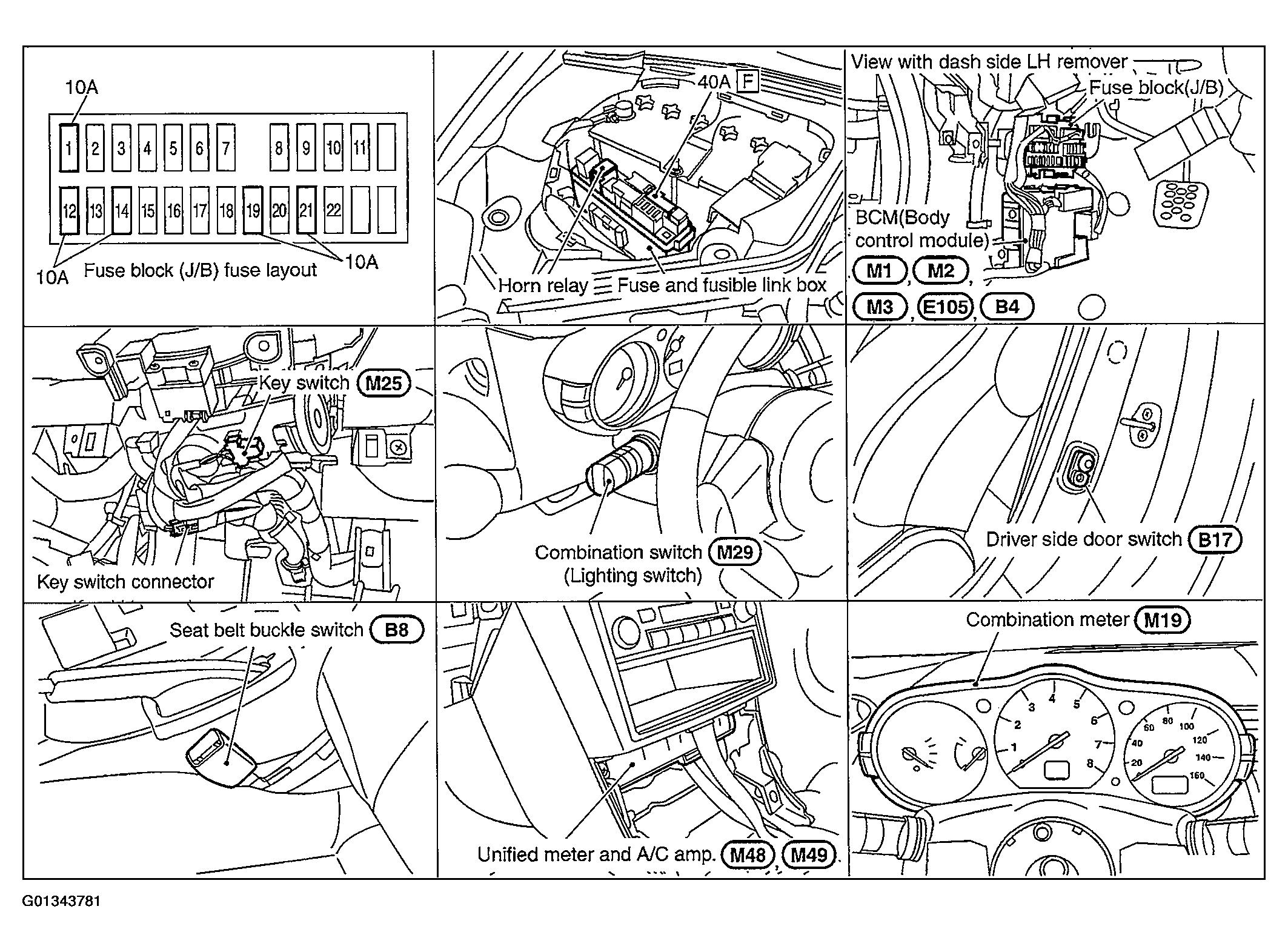

Fig 1: Locating Component Parts And Harness Connectors

G01343781

Courtesy of NISSAN MOTOR CO., U.S.A.
