All Warnings Are Not Operated

1. CHECK CHIME OPERATION

   Select "KEY WARN ALM", "LIGHT WARN ALM" or "SEAT BELT ALM" on CONSULT-II, and perform "CHIME" active test.

   Does chime sound?

   Yes: GO TO  3 .

   No: GO TO 2.

   Fig 1: Performing CHIME Active Test

   Courtesy of NISSAN MOTOR CO., U.S.A.
2. CHECK SELF-DIAGNOSIS OF BCM

   Select "BCM" on CONSULT-II, and perform "BCM C/U" self-diagnosis.

   Self-diagnostic results content

   No malfunction detected: GO TO 3.

   CAN communication or CAN communication system: Check CAN communication system. Go to BASIC DIAGNOSTIC PROCEDURES afterwood, print out CONSULT-II screen.

   Diagnosis 1 - 5 systems open circuit: Malfunction in combination switch system. Go to COMBINATION SWITCH INSPECTION ACCORDING TO SELF-DIAGNOSTIC RESULTS "" according to self-diagnostic results.

3. CHECK BCM INPUT SIGNAL

   Select BCM on CONSULT-II. Operate each switch with data monitor of "KEY WARN ALM", "LIGHT WARN ALM" or "SEAT BELT ALM" and check operation status of applicable switches.

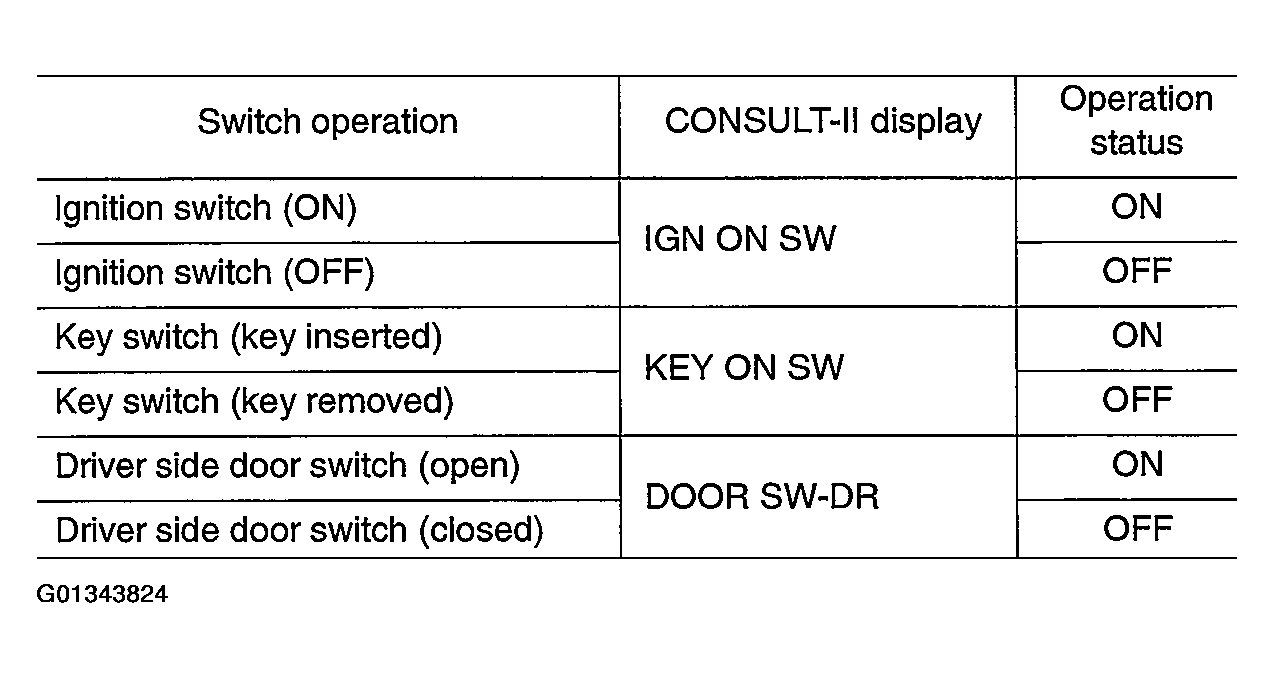

   KEY WARNING ALM

   Fig 2: Key Warning ALM Operation Chart

   Courtesy of NISSAN MOTOR CO., U.S.A.
   Fig 3: Data Monitor Display

   Courtesy of NISSAN MOTOR CO., U.S.A.

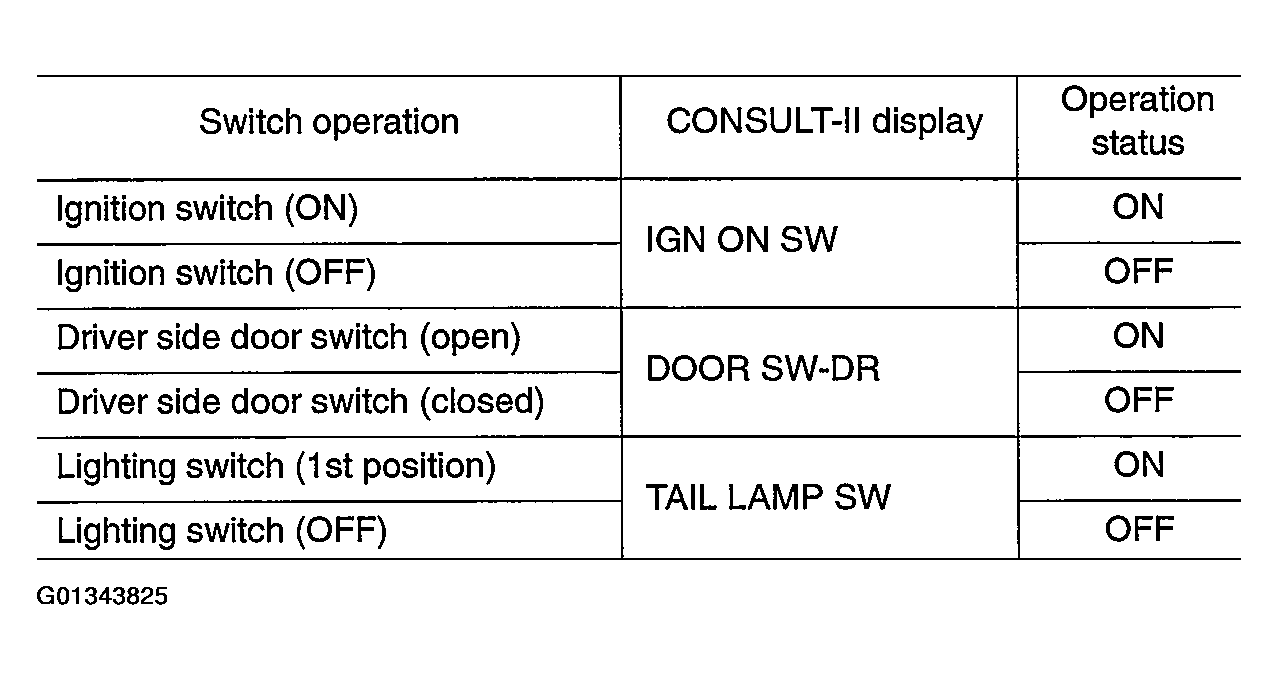

   LIGHT WARNING ALM

   Fig 4: Light Warning ALM Operation Chart

   Courtesy of NISSAN MOTOR CO., U.S.A.
   Fig 5: Data Monitor Display

   Courtesy of NISSAN MOTOR CO., U.S.A.

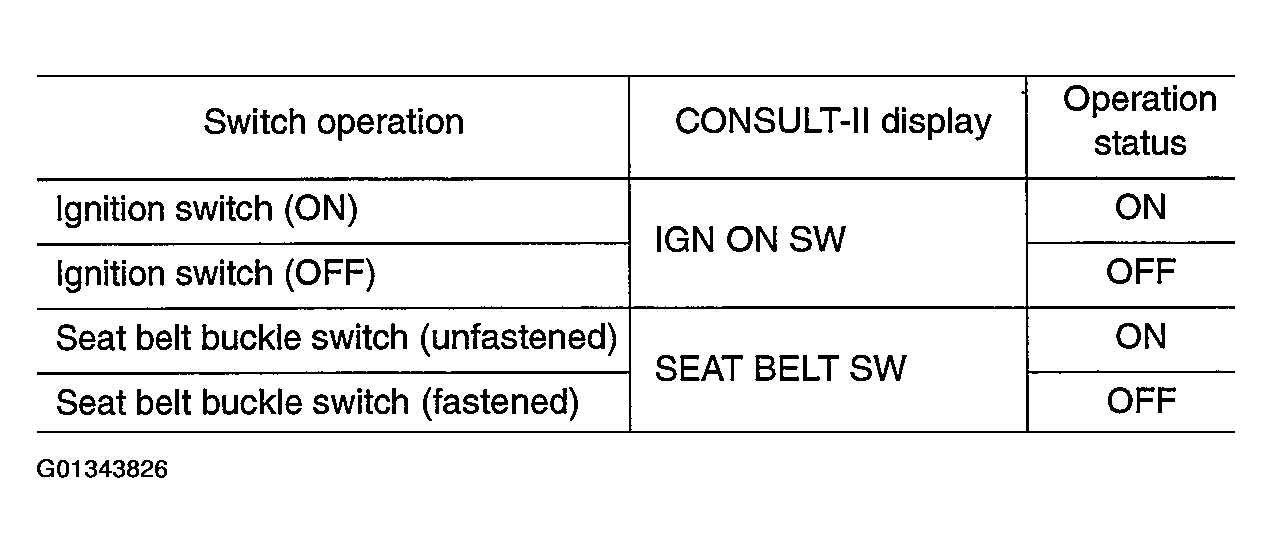

   SEAT BELT ALM

   Fig 6: Seat Belt ALM Operation Chart

   Courtesy of NISSAN MOTOR CO., U.S.A.
   Fig 7: Data Monitor Display

   Courtesy of NISSAN MOTOR CO., U.S.A.

   OK or NG

   OK: GO TO 4.

   NG: GO TO  5 .

4. CHECK UNIFIED METER AND A/C AMP. INPUT SIGNAL

   Select "METER A/C AMP" on CONSULT-II. Operate switches meet the requrements to sounds warning chime with "BUZZER" of data monitor and check operation status.

   When meet the requirements to sound warning chime: BUZZER ON

   Except above: BUZZER OFF

   OK or NG

   OK: Replace combination meter.

   NG: Replace unified meter and A/C amp. Refer to AUTO AMP .

   Fig 8: Data Monitor Buzzer Display

   Courtesy of NISSAN MOTOR CO., U.S.A.
5. CHECK DRIVER SIDE DOOR SWITCH CIRCUIT
   1. Turn ignition switch OFF.
   2. Disconnect BCM connector and driver side door switch connector.
   3. Check harness continuity (open circuit) between BCM harness connector B4 terminal 14 (W) and driver side door switch harness connector B17 terminal 1 (W).
      Fig 9: Checking Driver Side Door Switch Circuit Continuity

      Courtesy of NISSAN MOTOR CO., U.S.A.

      Continuity should exist.

   4. Check continuity (short circuit) between BCM harness connector B4 terminal 14 (W) and ground.

      Continuity should not exist.

   OK or NG

   OK: GO TO 6.

   NG: Repair harness or connector between BCM and driver side door switch.

6. CHECK DRIVER SIDE DOOR SWITCH

   Check continuity between driver side door switch and ground.

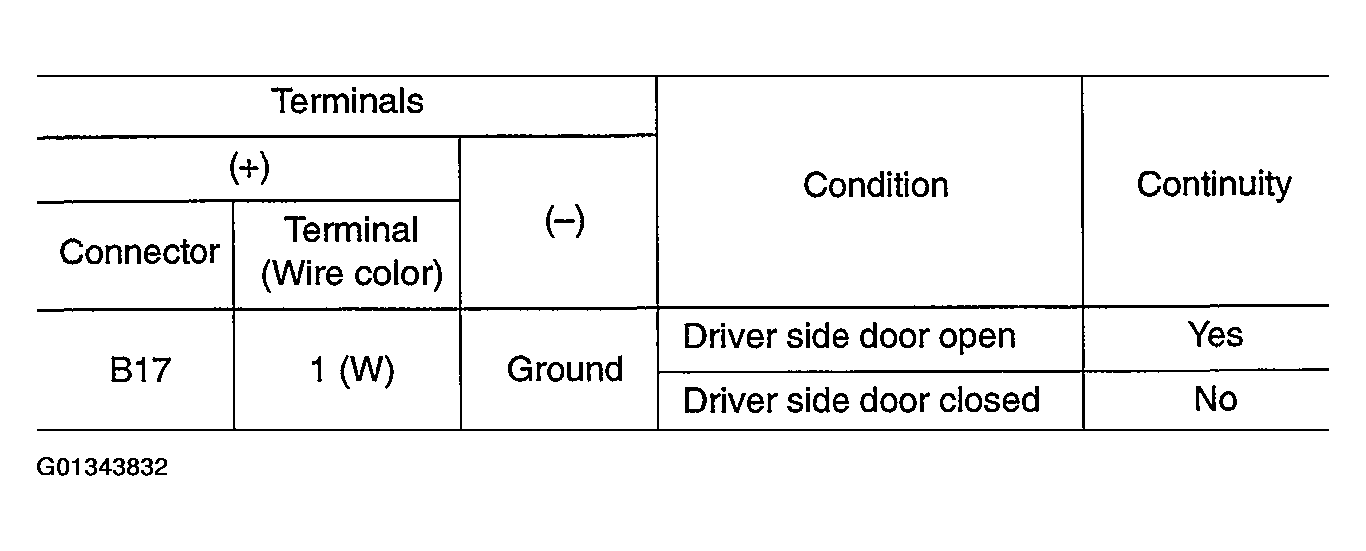

   Fig 10: Continuity Condition Chart

   Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK: Replace BCM. Refer to REMOVAL AND INSTALLATION OF BCM .

NG: Repair harness or connector.

Fig 11: Checking Continuity Between Driver Side Door Switch And Ground

Courtesy of NISSAN MOTOR CO., U.S.A.
