Input/Output Signals

Between Unified meter and A/C amp. and Combination Meter

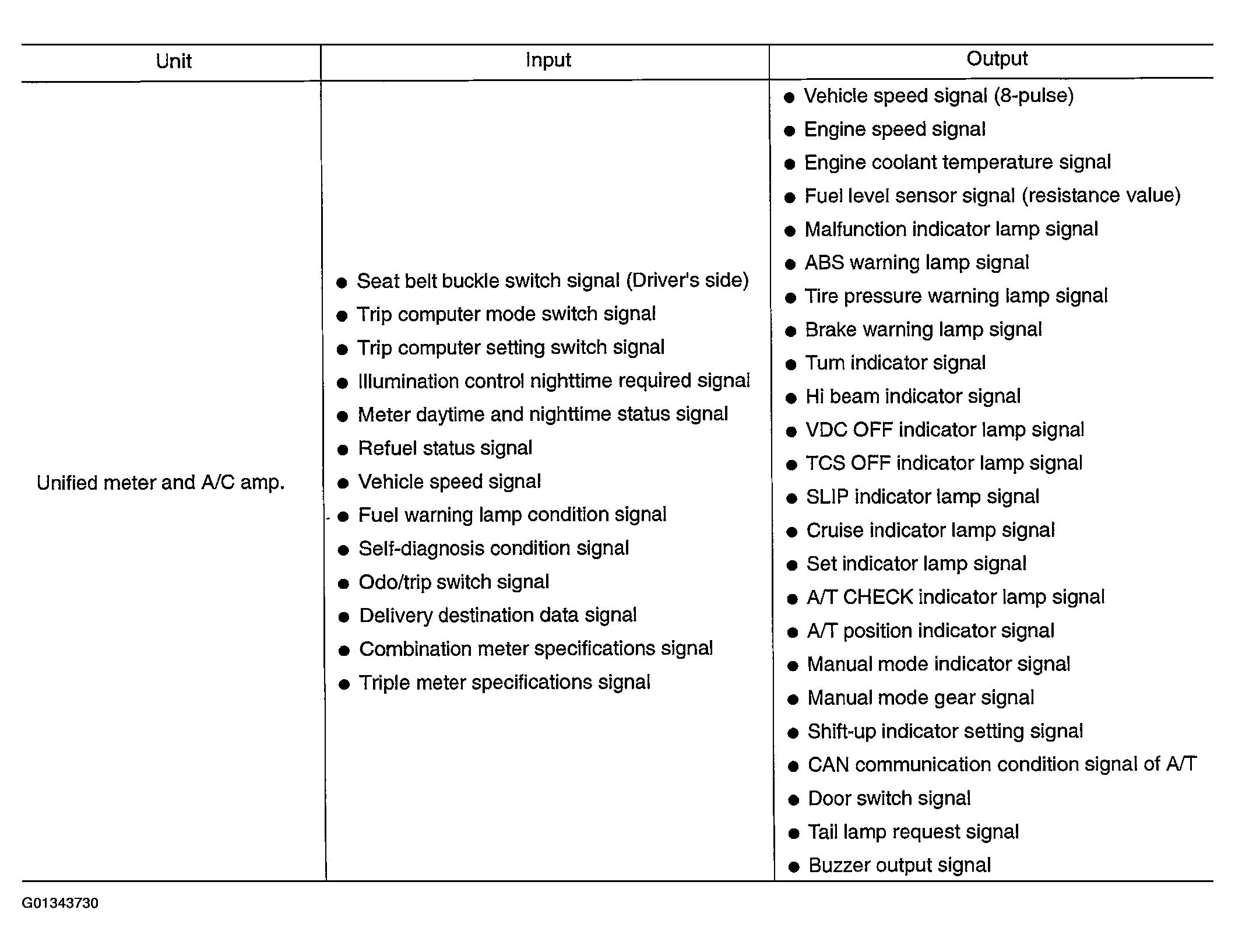

Fig 1: Input/Output Signals Chart Between Unified Meter A/C Amp And Combination Meter
G01343730Courtesy of NISSAN MOTOR CO., U.S.A.

Between Unified meter and A/C amp. and Triple Meter

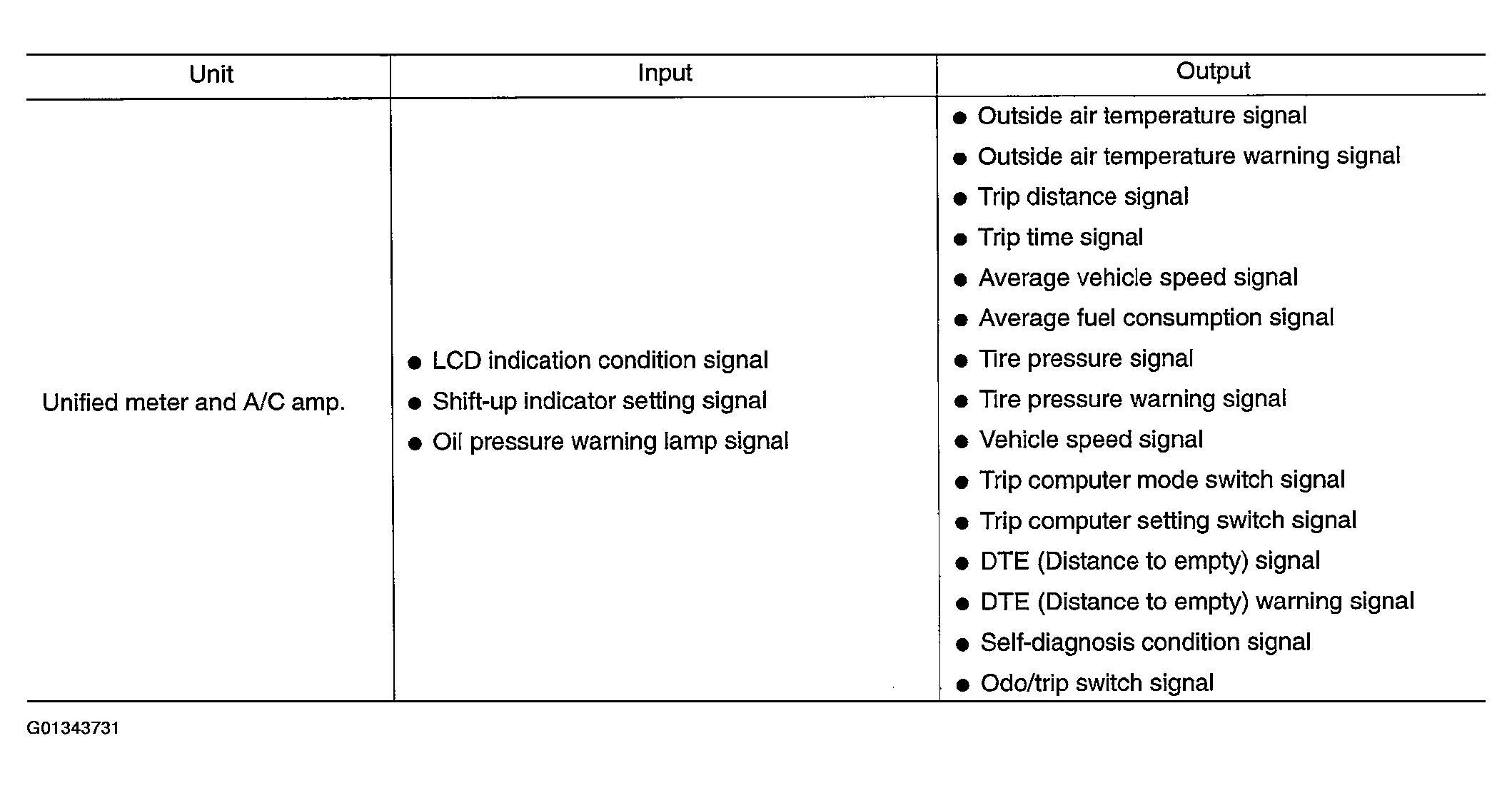

Fig 2: Input/Output Signals Chart Between Unified Meter A/C Amp And Combination Meter
G01343731Courtesy of NISSAN MOTOR CO., U.S.A.
