Oil Pressure Sensor Inspection

CHECK OIL PRESSURE SENSOR SIGNAL
1. Turn the ignition switch ON.
2. Check voltage between triple meter and ground.

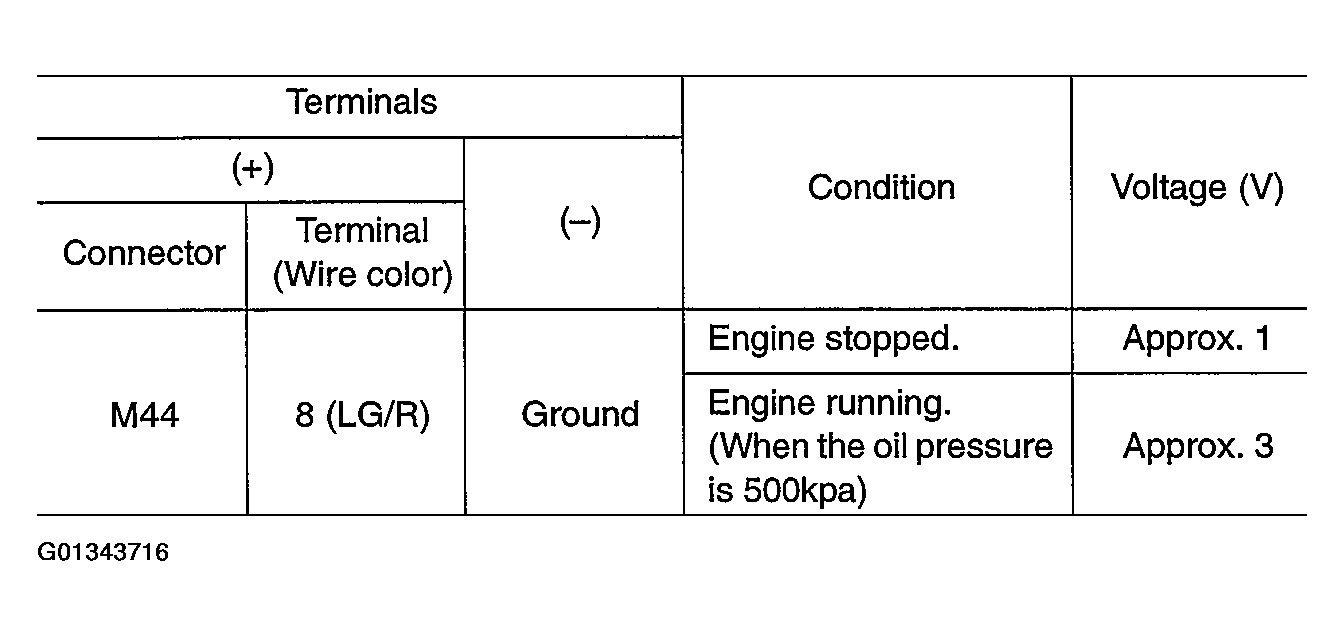

Fig 1: Terminals Voltage Condition Chart
Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK: Replace triple meter.

NG: GO TO 2.

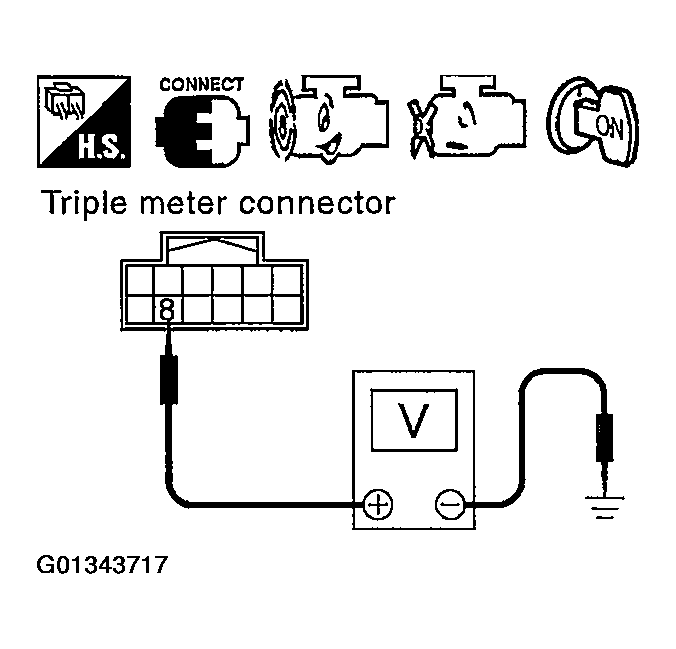

Fig 2: Checking Voltage Between Triple Meter Terminal 8 And Ground
Courtesy of NISSAN MOTOR CO., U.S.A.
CHECK OIL PRESSURE SENSOR POWER SUPPLY
Check voltage between triple meter harness connector M44 terminal 9 (R/L) and ground.

Approx. 5V

OK or NG

OK: GO TO 3.

NG: Replace triple meter.

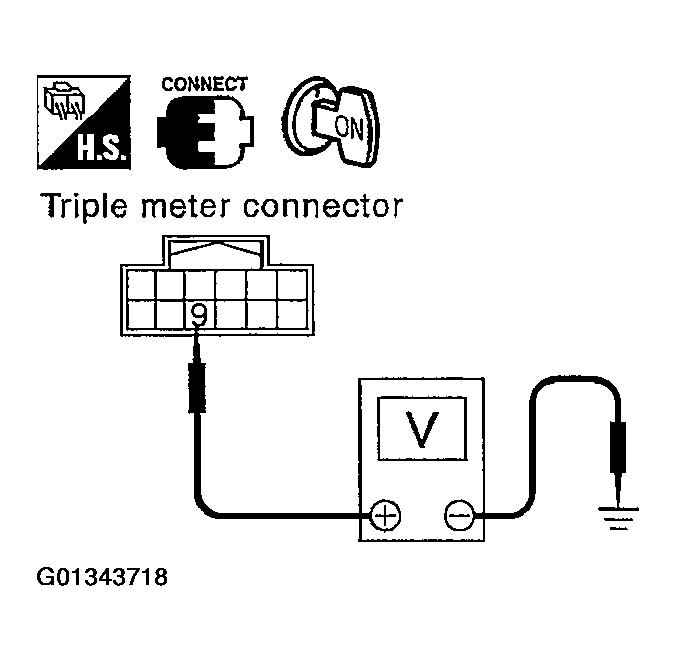

Fig 3: Checking Voltage Between Triple Meter Terminal 9 And Ground
Courtesy of NISSAN MOTOR CO., U.S.A.
CHECK OIL PRESSURE SENSOR POWER SUPPLY CIRCUIT
1. Disconnect triple meter and oil pressure switch connector.
2. Check harness continuity (open circuit) between triple meter harness connector M44 terminal 9 (R/L) and oil pressure sensor harness connector F21 terminal 1 (R/L).
  Continuity should exist.
3. Check harness continuity (short circuit) between triple meter harness connector M44 terminal 9 (R/L) and ground.
  Continuity should not exist.
OK or NG

OK: GO TO 4.

NG: Repair harness or connector between triple meter and oil pressure sensor.

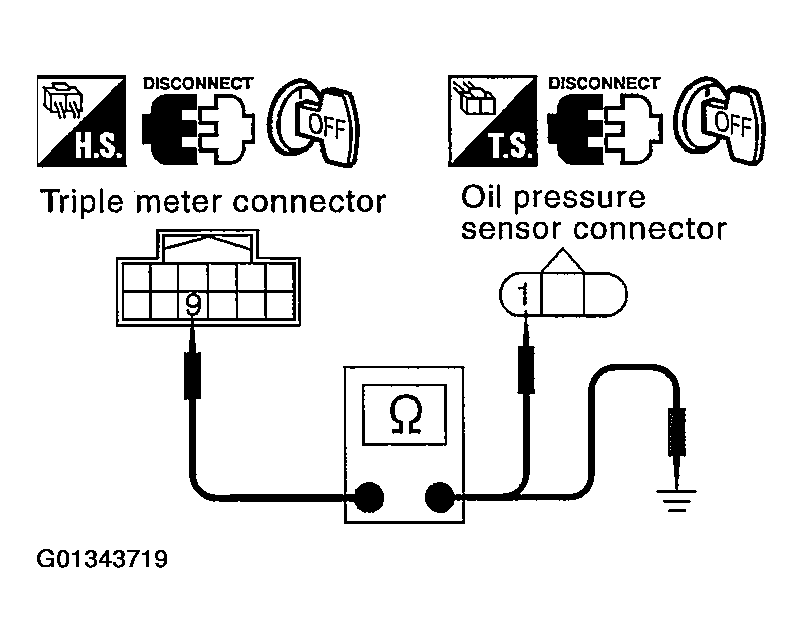

Fig 4: Checking Harness Continuity Between Triple Meter Terminal 9 And Oil Pressure Sensor Terminal 1
Courtesy of NISSAN MOTOR CO., U.S.A.
CHECK OIL PRESSURE SENSOR SIGNAL CIRCUIT
1. Check harness continuity (open circuit) between triple meter harness connector M44 terminal 8 (LG/R) and oil pressure sensor harness connector F21 terminal 2 (G).
  Continuity should exist.
2. Check harness continuity (short circuit) between triple meter harness connector M44 terminal 8 (LG/R) and ground.
  Continuity should not exist.
OK or NG

OK: GO TO 5.

NG: Repair harness or connector between triple meter and oil pressure sensor.

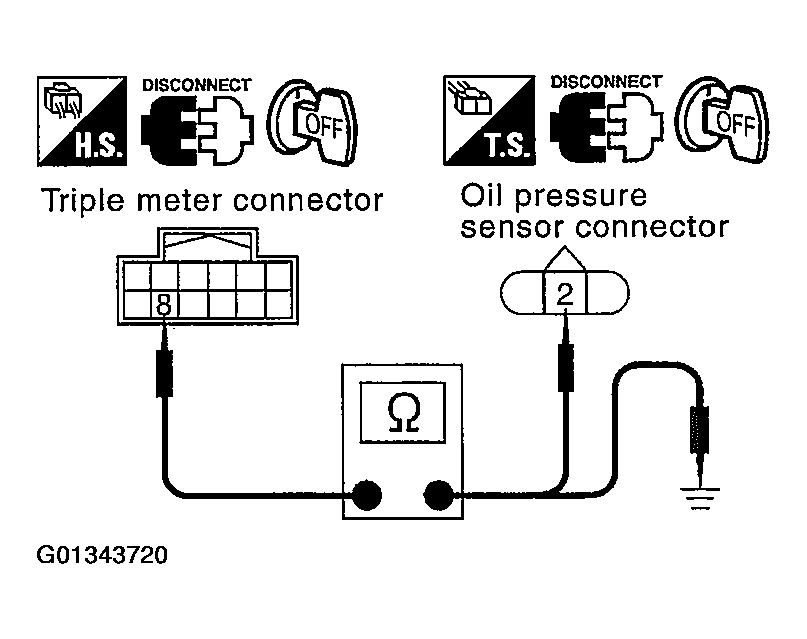

Fig 5: Checking Harness Continuity Between Triple Meter Terminal 8 And Oil Pressure Sensor Terminal 2
Courtesy of NISSAN MOTOR CO., U.S.A.
CHECK OIL PRESSURE SENSOR GROUND CIRCUIT
Check harness continuity (open circuit) between triple meter harness connector M44 terminal 7 (G/OR) and oil pressure sensor harness connector F21 terminal 3 (B).

Continuity should exist.

OK or NG

OK: Replace oil pressure sensor.

NG: Repair harness or connector between triple meter and oil pressure sensor.

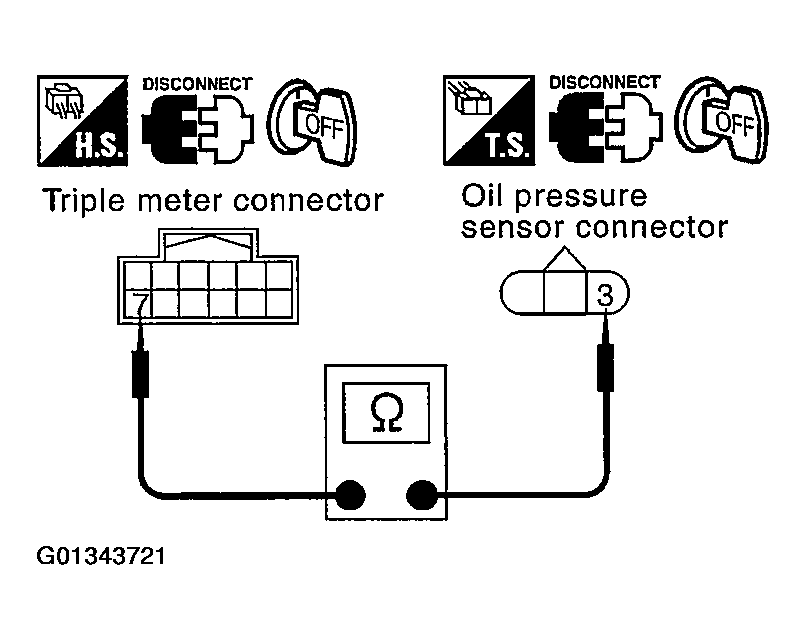

Fig 6: Checking Harness Continuity Between Triple Meter Terminal 7 And Oil Pressure Sensor Terminal 3
Courtesy of NISSAN MOTOR CO., U.S.A.
