Terminals and Reference Value for NAVI Switch

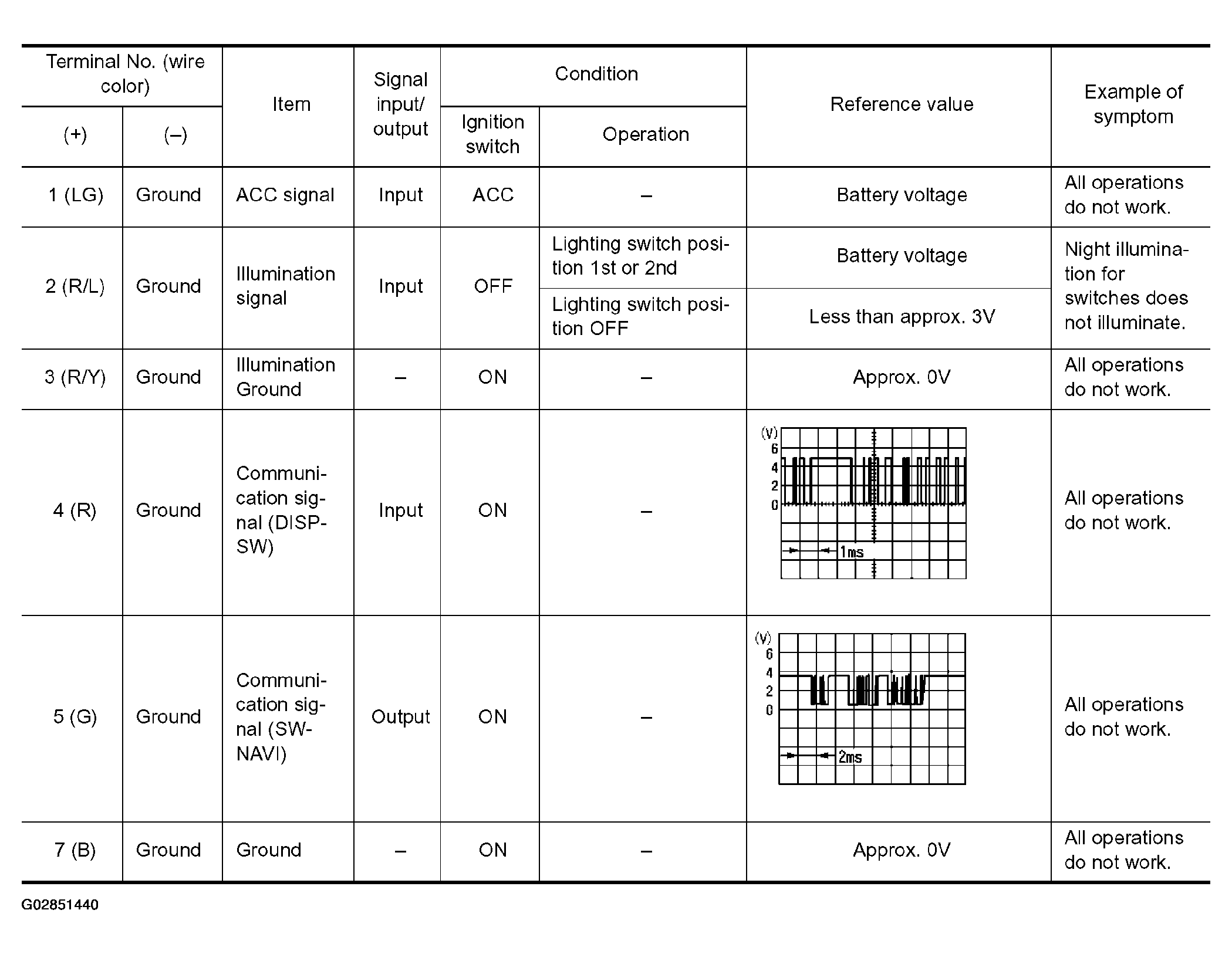

Fig 1: Terminals And Reference Value For Navi Switch

G02851440

Courtesy of NISSAN MOTOR CO., U.S.A.
