Terminals and Reference Value for BCM

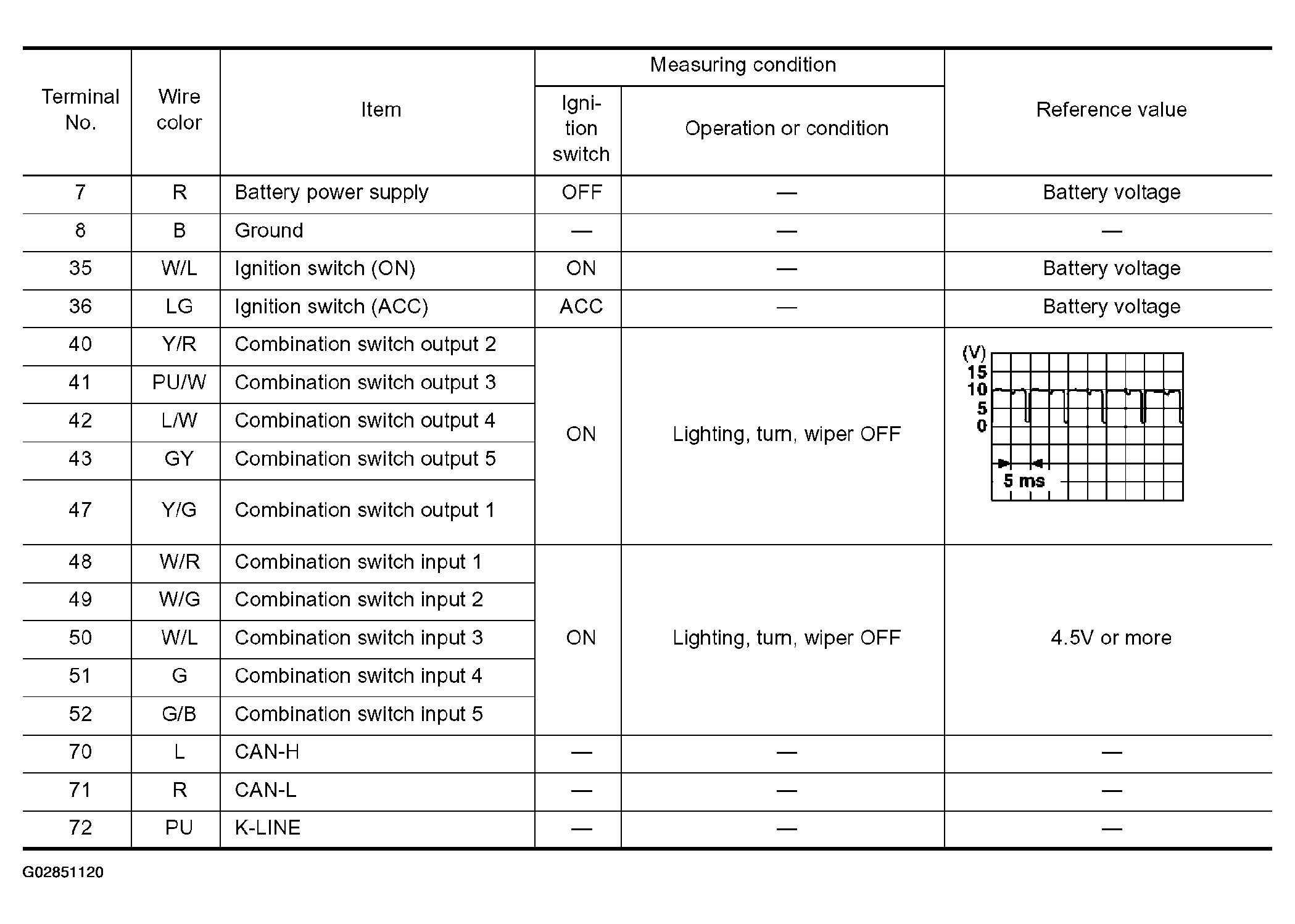

Fig 1: Identifying Terminals And Reference Value For BCM

G02851120

Courtesy of NISSAN MOTOR CO., U.S.A.
