Parking, License Plate and Tail Lamps Do Not Illuminate

1. Start auto active test. Refer to "AUTO ACTIVE TEST ", "Auto Active Test".
2. Check whether parking, license plate, side marker and tail lamps operate.
   1. Parking, license plate lamp, side marker and tall lamps should operate

OK or NG

1. OK : GO TO  4 .
2. NG : GO TO 2.

1. Disconnect IPDM E/R connector, license plate lamp connector and front/rear combination lamp connectors.

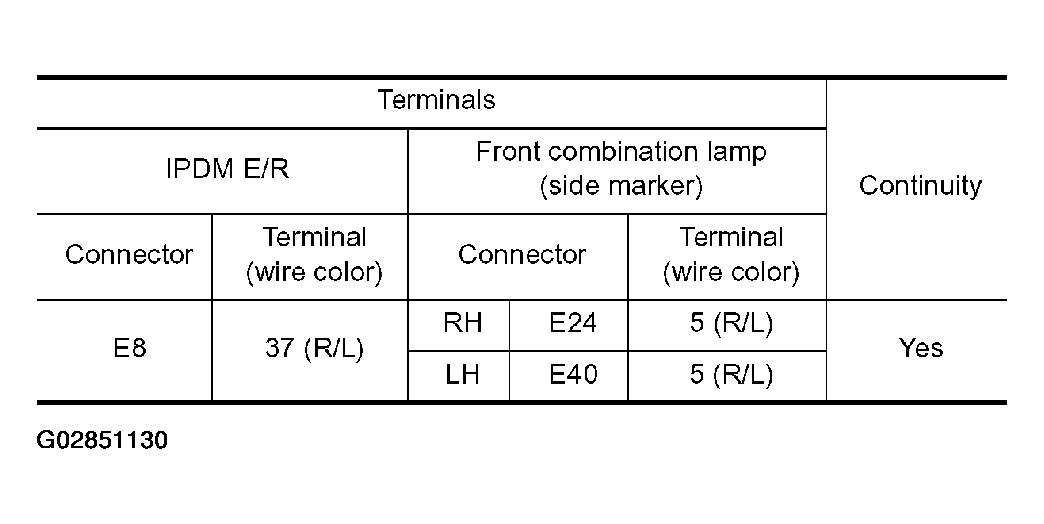

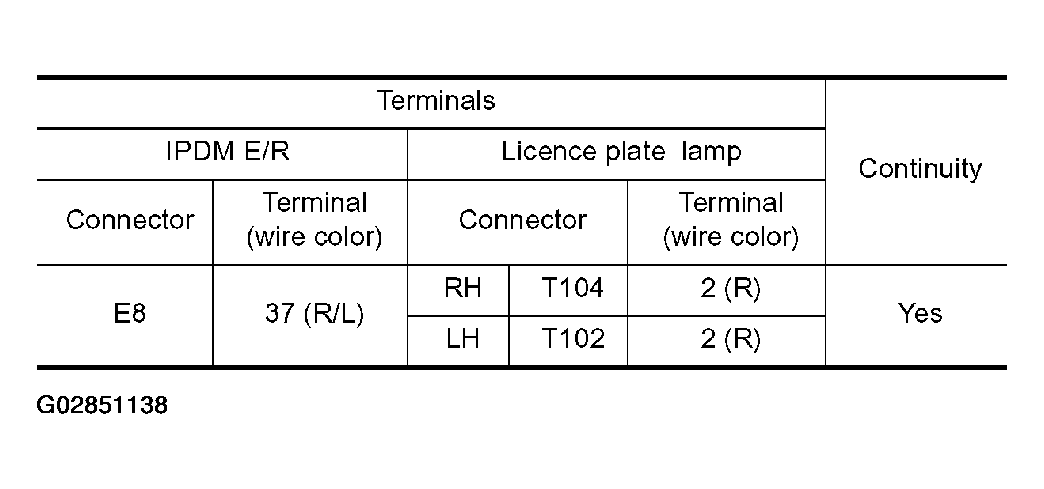

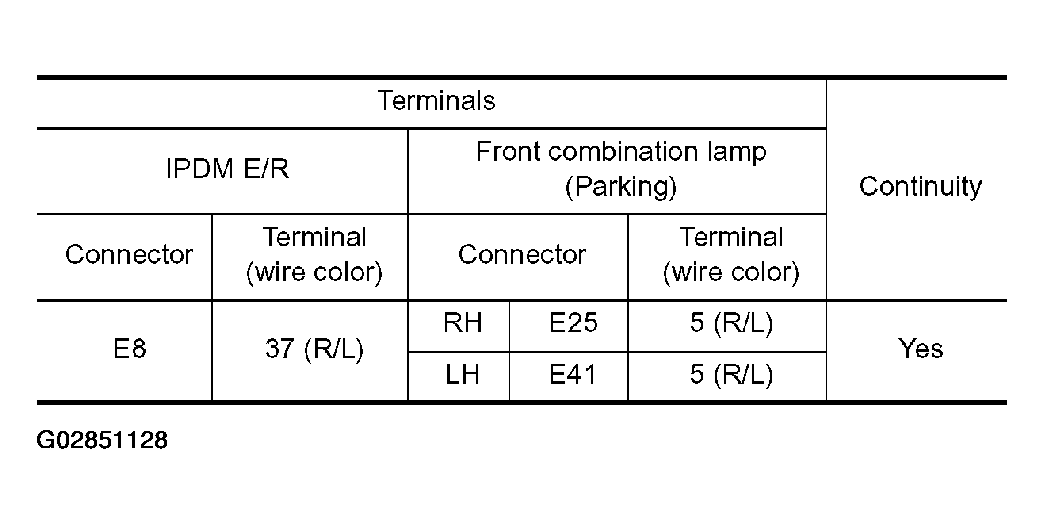

2. Check harness continuity between IPDM E/R connector and license plate lamp and front/rear combination lamp connectors.

With xenon headlamp

Fig 1: Terminal Chart (With Xenon Headlamp)

Courtesy of NISSAN MOTOR CO., U.S.A.

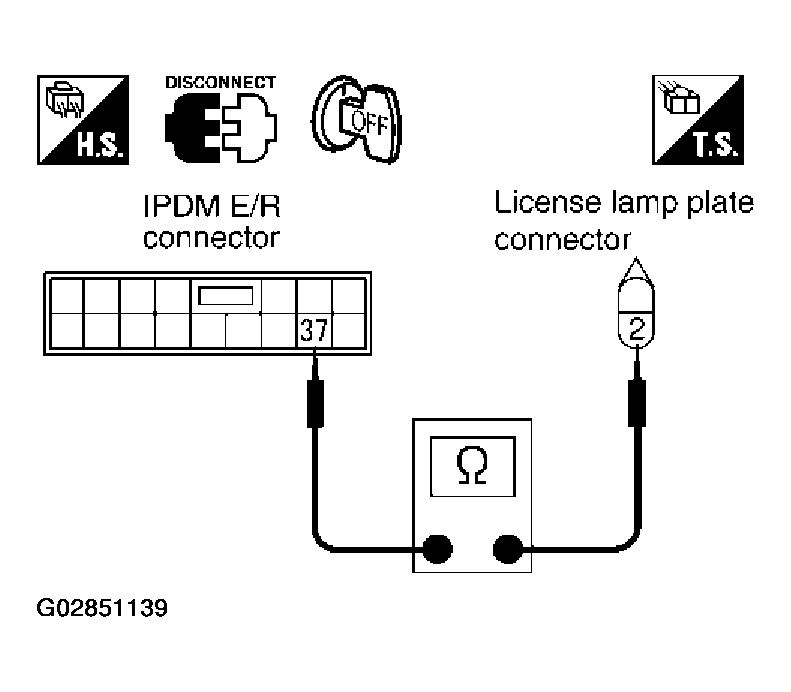

Fig 2: Checking Harness Continuity Between IPDM E/R Connector And License Plate Lamp Connector

Courtesy of NISSAN MOTOR CO., U.S.A.

With halogen bulb headlamp

Fig 3: Terminal Chart (With Halogen Bulb Headlamp)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 4: Checking Harness Continuity Between IPDM E/R Connector And License Plate Lamp Connector

Courtesy of NISSAN MOTOR CO., U.S.A.

With xenon headlamp

Fig 5: Terminal Chart (With Xenon Headlamp)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 6: Checking Harness Continuity Between IPDM E/R Connector And License Plate Lamp Connector

Courtesy of NISSAN MOTOR CO., U.S.A.

With halogen bulb headlamp

Fig 7: Terminal Chart (With Halogen Bulb Headlamp)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 8: Checking Harness Continuity Between IPDM E/R Connector And License Plate Lamp Connector

Courtesy of NISSAN MOTOR CO., U.S.A.

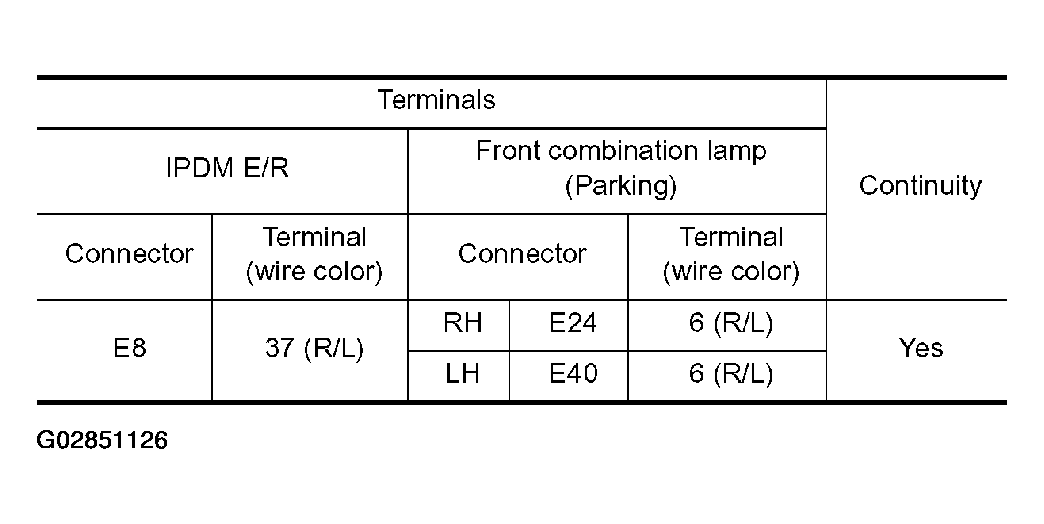

Fig 9: Terminal Chart

Courtesy of NISSAN MOTOR CO., U.S.A.

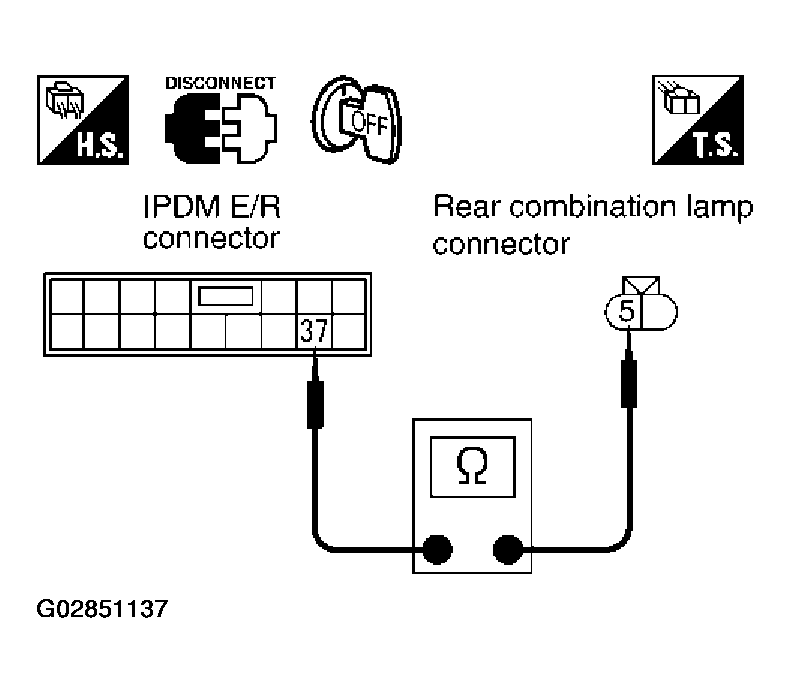

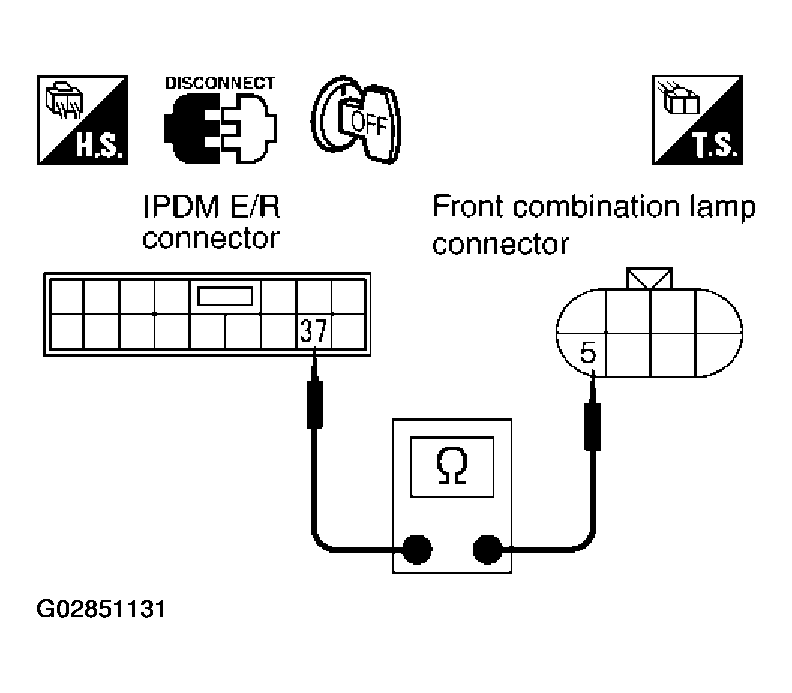

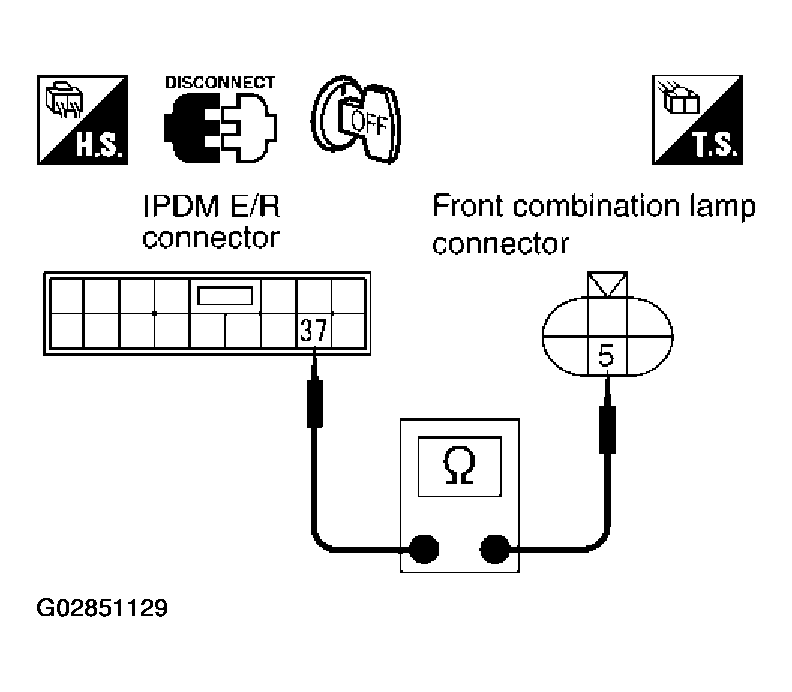

Fig 10: Checking Harness Continuity Between IPDM E/R Connector And Front/Rear Combination Lamp Connectors

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 11: Terminal Chart

Courtesy of NISSAN MOTOR CO., U.S.A.

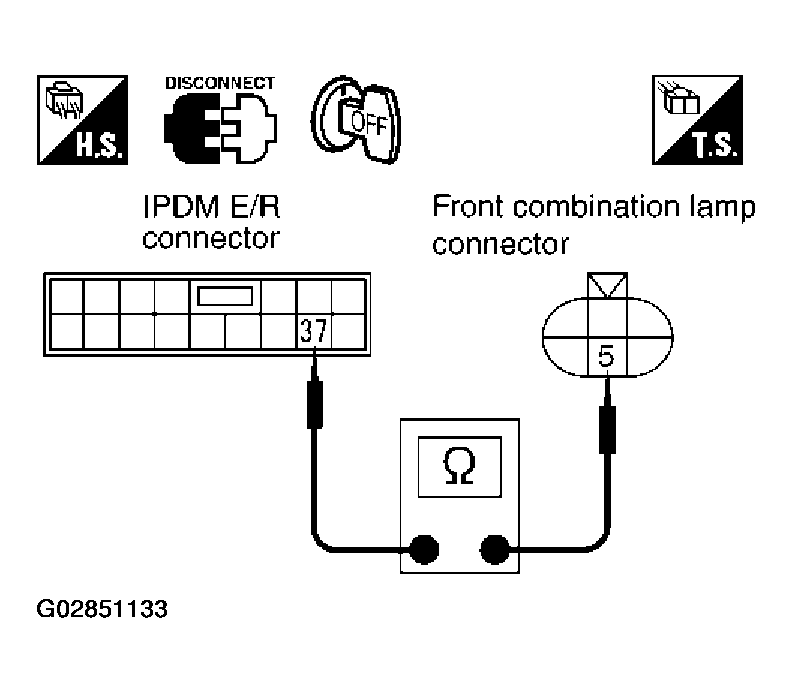

Fig 12: Checking Harness Continuity Between IPDM E/R Connector And Front/Rear Combination Lamp Connectors

Courtesy of NISSAN MOTOR CO., U.S.A.

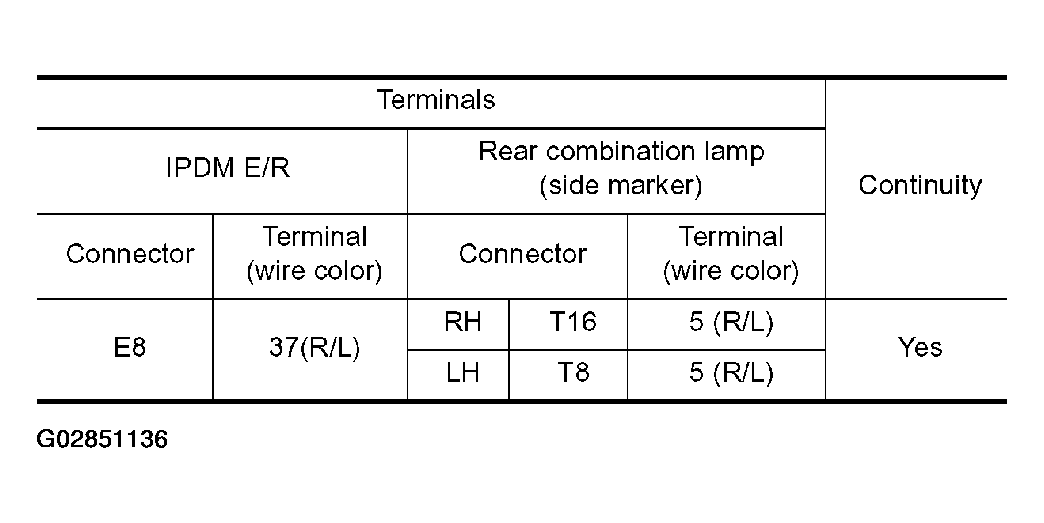

Fig 13: Terminal Chart

Courtesy of NISSAN MOTOR CO., U.S.A.

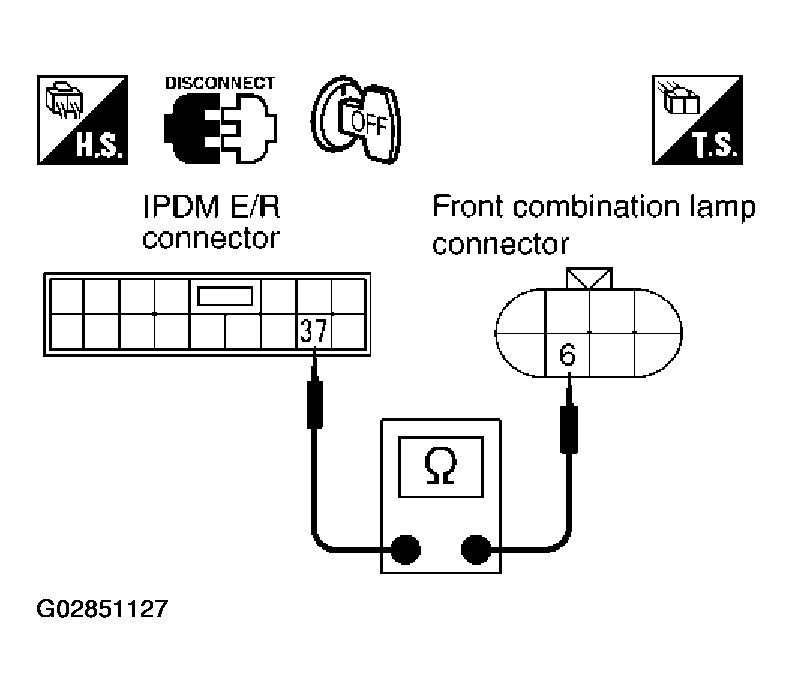

Fig 14: Checking Harness Continuity Between IPDM E/R Connector And Front/Rear Combination Lamp Connectors

Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

1. OK : GO TO 3.
2. NG : Repair harness or connector between IPDM E/R and turn signal lamp, between IPDM E/R and rear combination (tail and side marker) lamp, and between IPDM E/R and license lamp.

Start auto active test. Refer to "Auto Active Test ", "Auto Active Test".

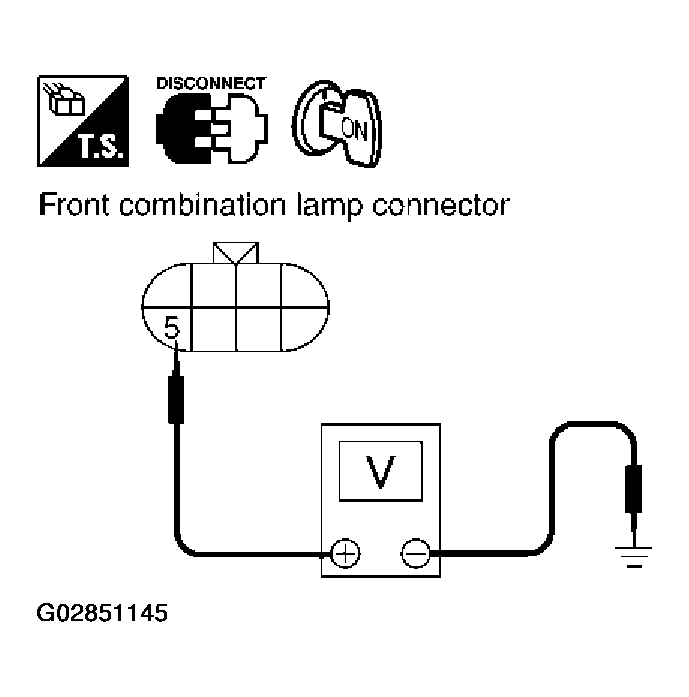

1. When tail lamp relay is operating, check voltage between front combination lamp and ground (with xenon headlamp).
   1. When tail lamp relay is operating, check voltage between front combination lamp and ground (with halogen bulb headlamp).

   With xenon headlamp

   Fig 15: Terminal Chart (With Xenon Headlamp)

   Courtesy of NISSAN MOTOR CO., U.S.A.

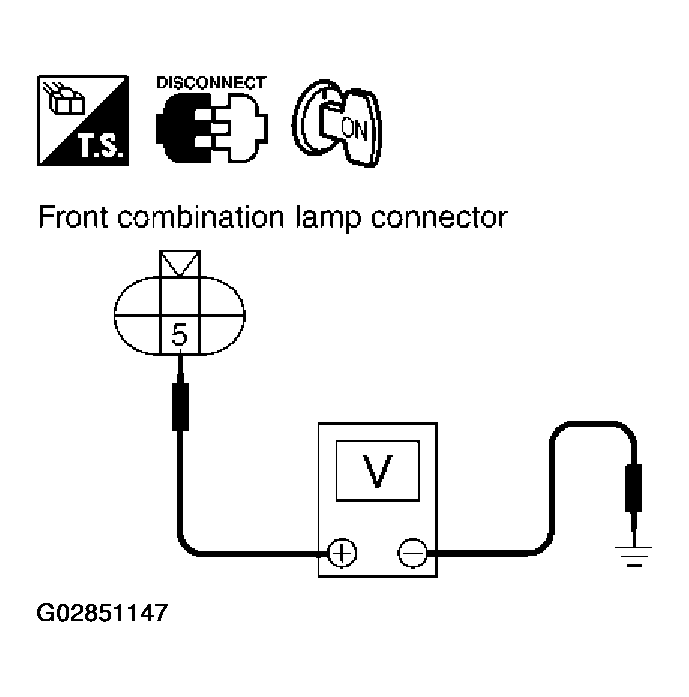

   Fig 16: Checking Voltage Between Front Combination Lamp And Ground (With Halogen Bulb Headlamp)

   Courtesy of NISSAN MOTOR CO., U.S.A.

   With halogen bulb headlamp

   Fig 17: Terminal Chart (With Halogen Bulb Headlamp)

   Courtesy of NISSAN MOTOR CO., U.S.A.
   Fig 18: Checking Harness Continuity Between IPDM E/R Connector And Front/Rear Combination Lamp Connectors

   Courtesy of NISSAN MOTOR CO., U.S.A.

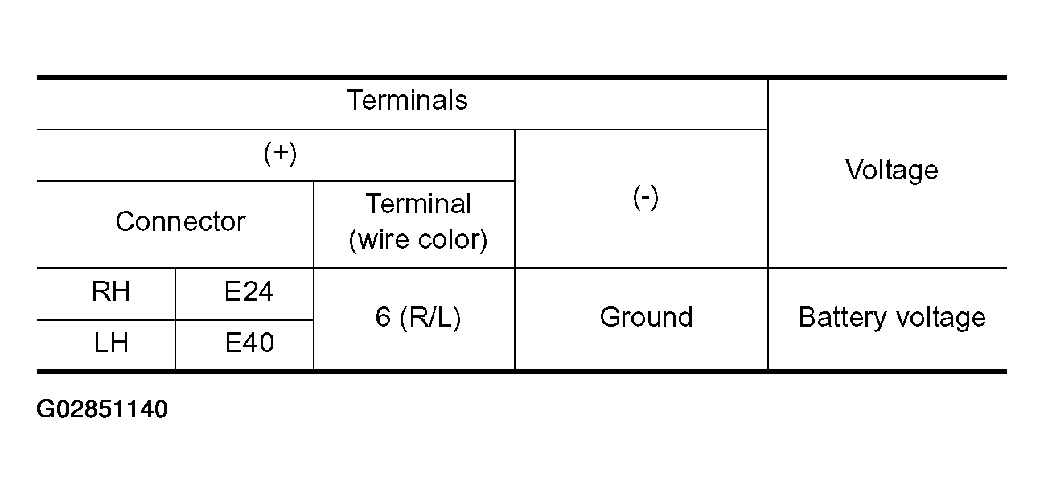

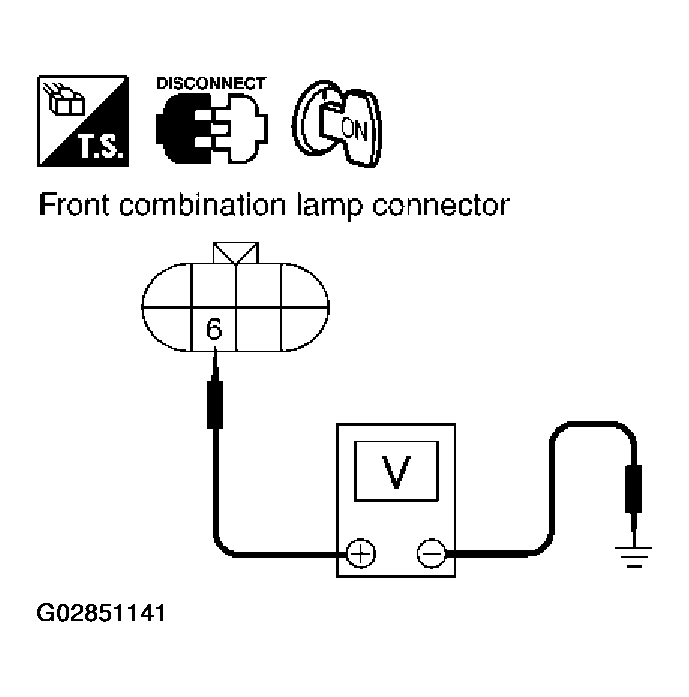

2. When tail lamp relay is operating, check voltage between front combination (side marker) lamp and ground (with xenon headlamp).
   1. When tail lamp relay is operating, check voltage between front combination (side marker) lamp and ground (with halogen bulb headlamp).
   2. With xenon headlamp
   Fig 19: Terminal Chart (With Xenon Headlamp)

   Courtesy of NISSAN MOTOR CO., U.S.A.
   Fig 20: Checking Voltage Between Front Combination Lamp And Ground (With Halogen Bulb Headlamp)

   Courtesy of NISSAN MOTOR CO., U.S.A.
   1. With halogen bulb headlamp
   Fig 21: Terminal Chart (With Halogen Bulb Headlamp)

   Courtesy of NISSAN MOTOR CO., U.S.A.
   Fig 22: Checking Voltage Between Front Combination Lamp And Ground (With Halogen Bulb Headlamp)

   Courtesy of NISSAN MOTOR CO., U.S.A.

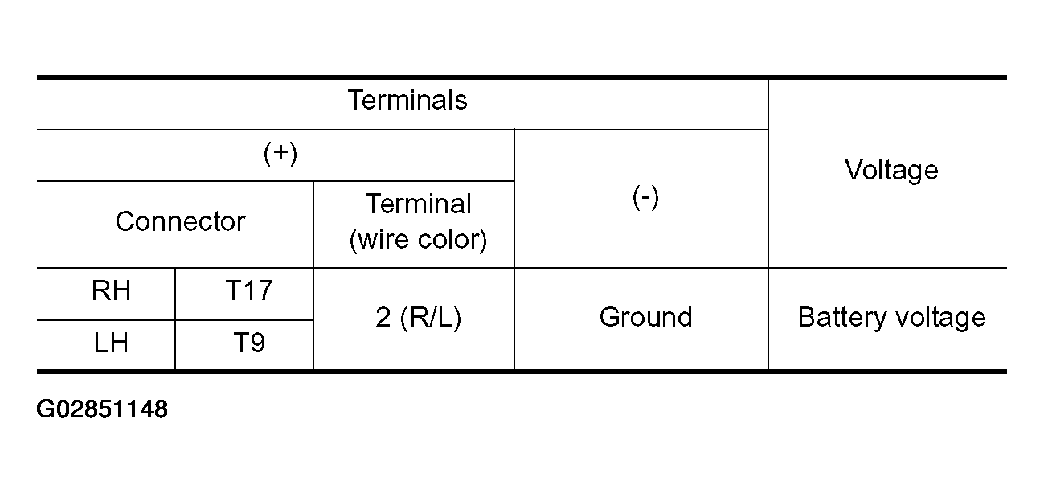

3. When tail lamp relay is operating, check voltage between rear combination (tail) lamp and ground.

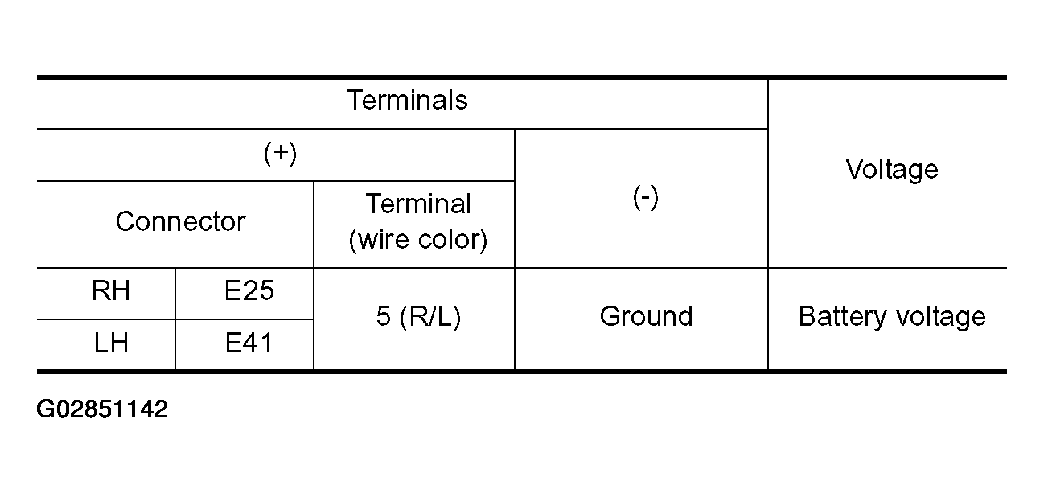

   Fig 23: Terminal Chart

   Courtesy of NISSAN MOTOR CO., U.S.A.

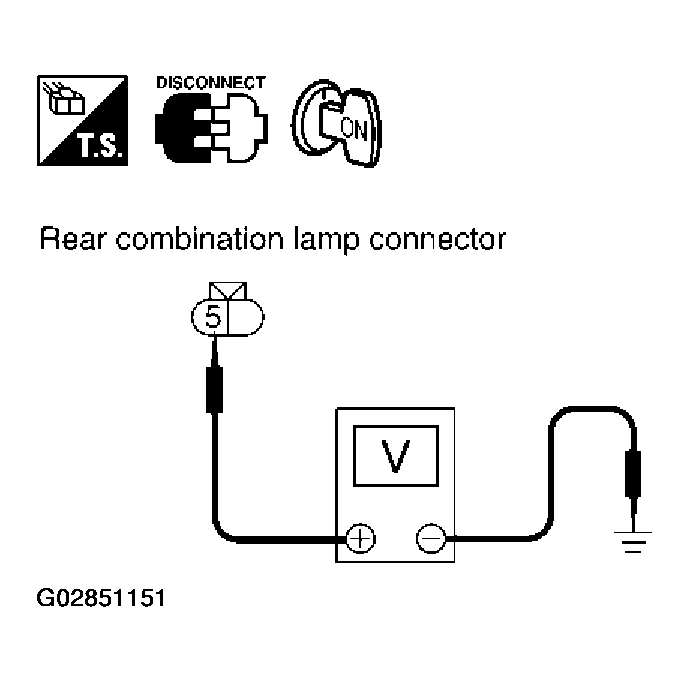

   Fig 24: Checking Voltage Between Rear Combination (Tail) Lamp And Ground

   Courtesy of NISSAN MOTOR CO., U.S.A.
4. When tail lamp relay is operating, check voltage between rear combination (side marker) lamp and ground.
   Fig 25: Terminal Chart

   Courtesy of NISSAN MOTOR CO., U.S.A.
   Fig 26: Checking Voltage Between Rear Combination (Side Marker) Lamp And Ground

   Courtesy of NISSAN MOTOR CO., U.S.A.

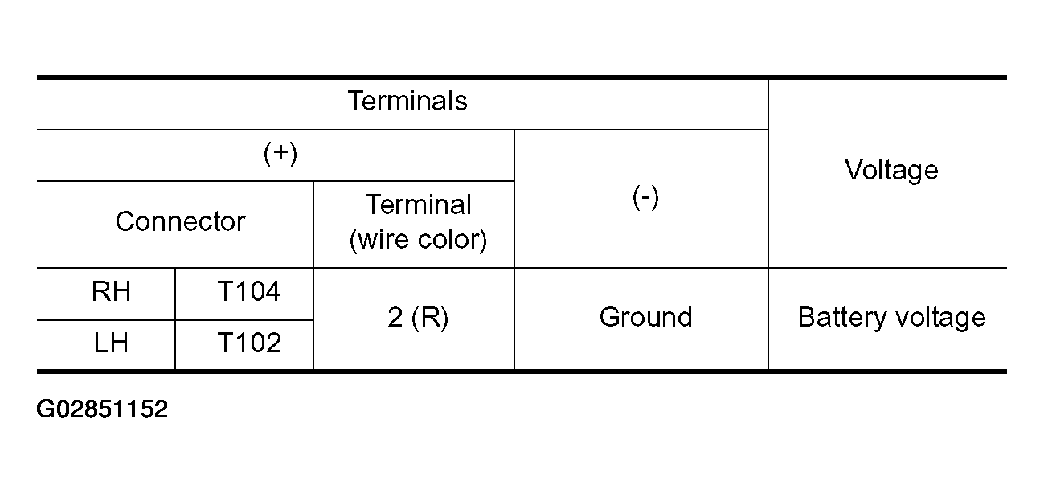

5. When tail lamp relay is operating, check voltage between license plate lamp terminal 2 and ground.
   Fig 27: Terminal Chart

   Courtesy of NISSAN MOTOR CO., U.S.A.

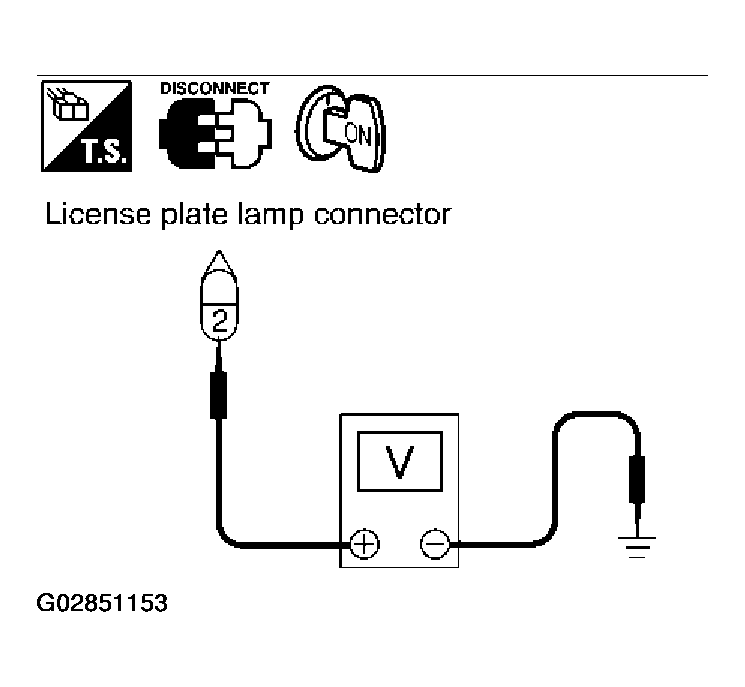

   Fig 28: Checking Voltage Between License Plate Lamp Terminal And Ground

   Courtesy of NISSAN MOTOR CO., U.S.A.

   OK or NG

   1. OK : Check ground circuit of parking, license plate and tail lamps.
   2. NG : Replace IPDM E/R.

Select BCM on CONSULT-II. Carry out "BCM C/U" self-diagnosis. Displayed results of self-diagnosis

No malfunction detected: GO TO 5.

CAN communications or CAN system: Inspect the BCM CAN communications system. Refer to , "CAN Communication Inspection Using CONSULT-II (Self-Diagnosis)".

OPEN DETECT 1 - 5: Combination switch system malfunction. Refer to "COMBINATION SWITCH INSPECTION ACCORDING TO SELF-DIAGNOSTIC RESULTS ".

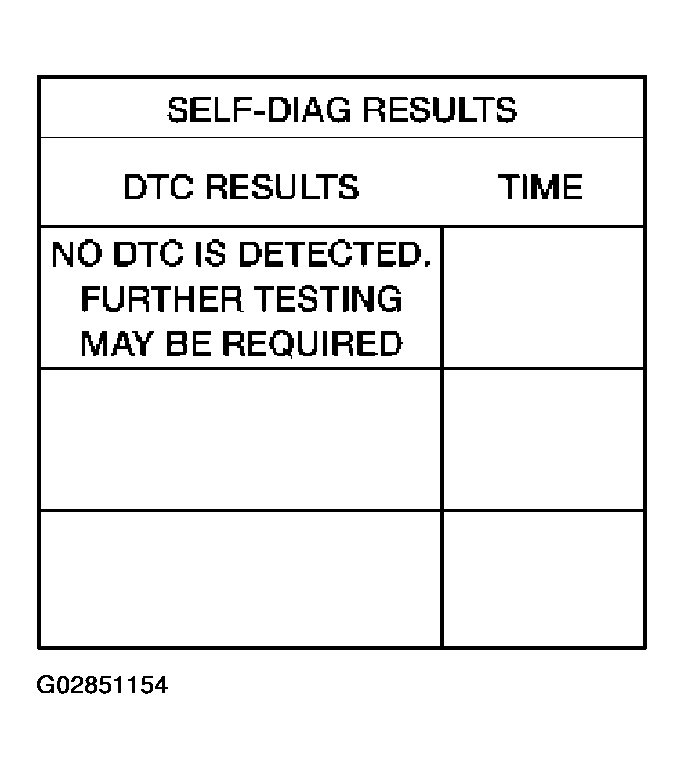

Fig 29: Displaying Self-Diagnostic Results

Courtesy of NISSAN MOTOR CO., U.S.A.

Select BCM on CONSULT-II. With "HEAD LAMP" data monitor, check that "TAIL LAMP SW" turns ON-OFF linked with operation of lighting switch.

OK or NG

1. OK : Replace BCM.
2. NG : Replace lighting switch.

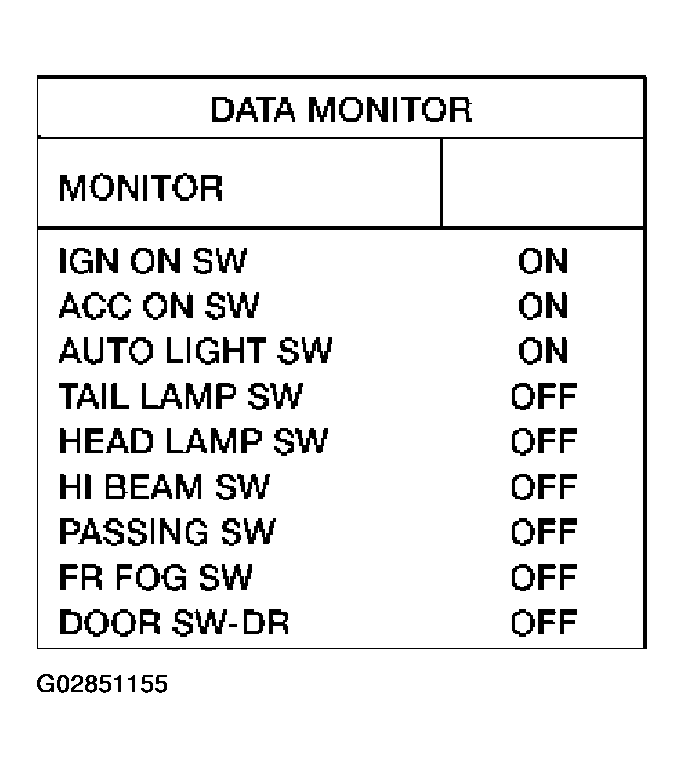

Fig 30: Displaying Data Monitor

Courtesy of NISSAN MOTOR CO., U.S.A.
