CAN Communication Unit: Schematic

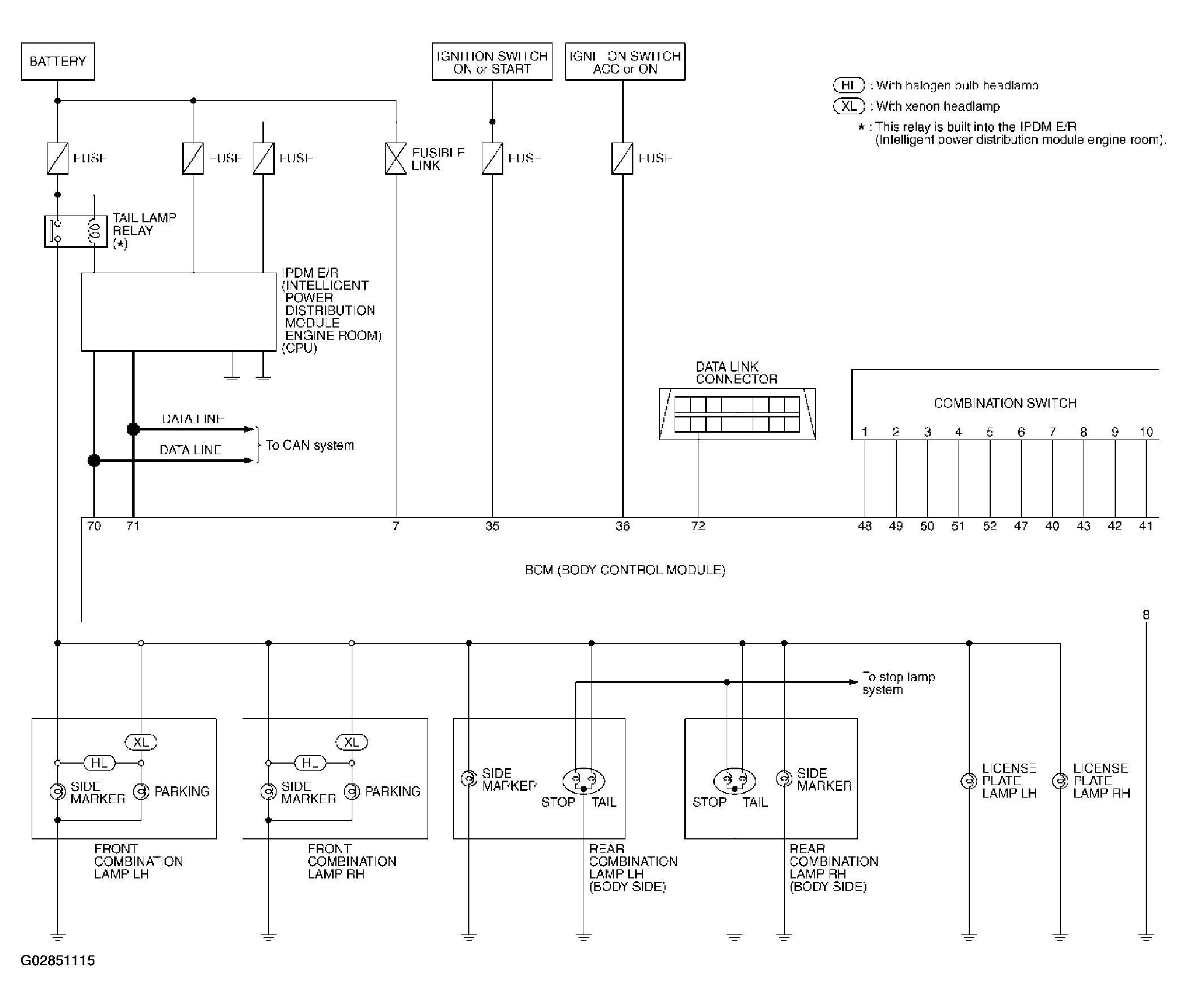

Fig 1: Schematic Diagram Of Parking, License Plate And Tail Lamps

G02851115

Courtesy of NISSAN MOTOR CO., U.S.A.
