Trouble Diagnosis Procedure For Air Mix Door

SYMPTOM:

Air mix door does not change .

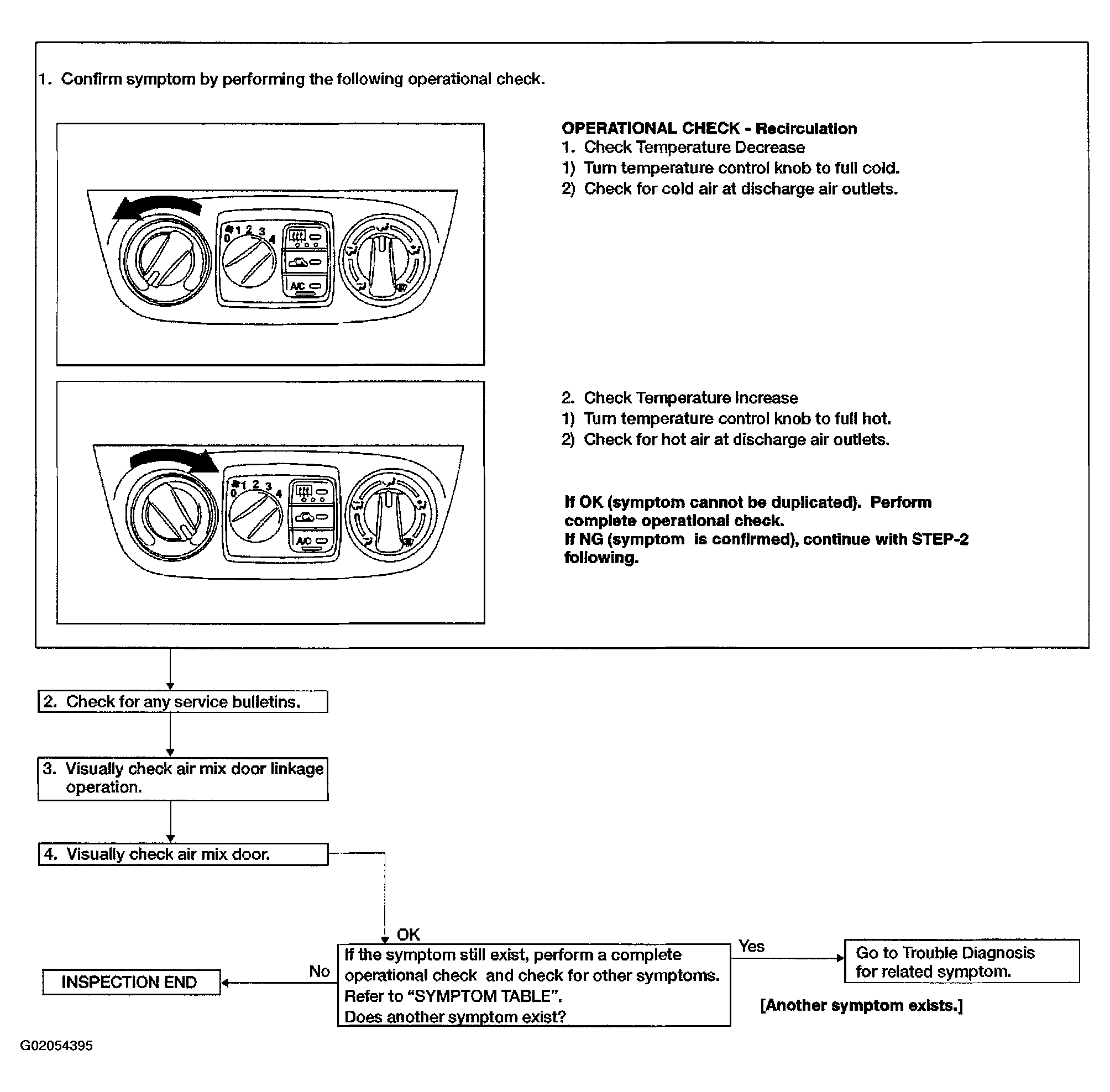

Fig 1: Inspection Flow Chart

G02054395

Courtesy of NISSAN MOTOR CO., U.S.A.
