Wiring Diagram - NATS - (QR25DE Models)

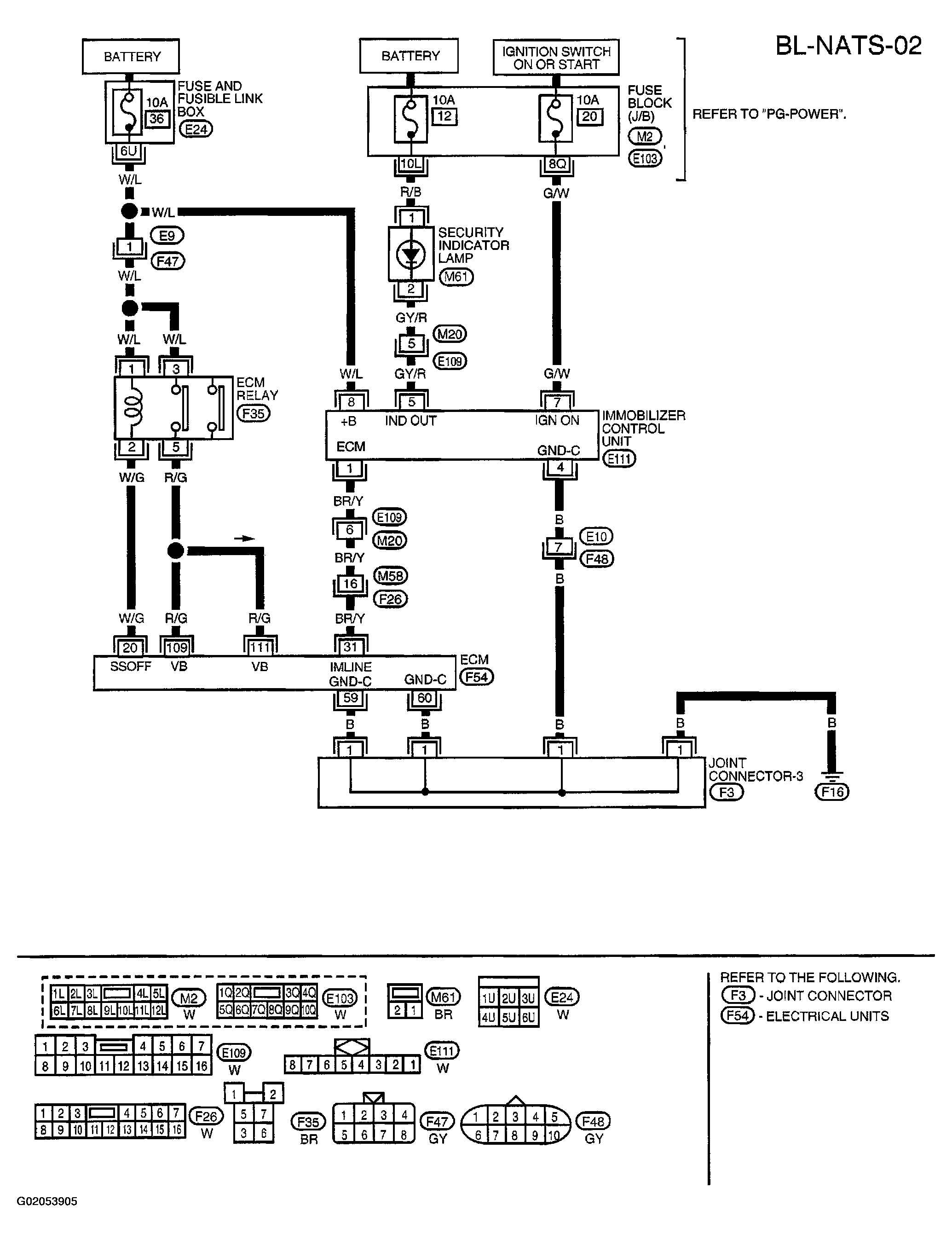

Fig 1: QG25DE Vehicle Immobilizer System Wiring Diagram BL-NATS-02 (2.5L)

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE: Immobilizer control unit terminals and reference value measured between each terminal and ground.

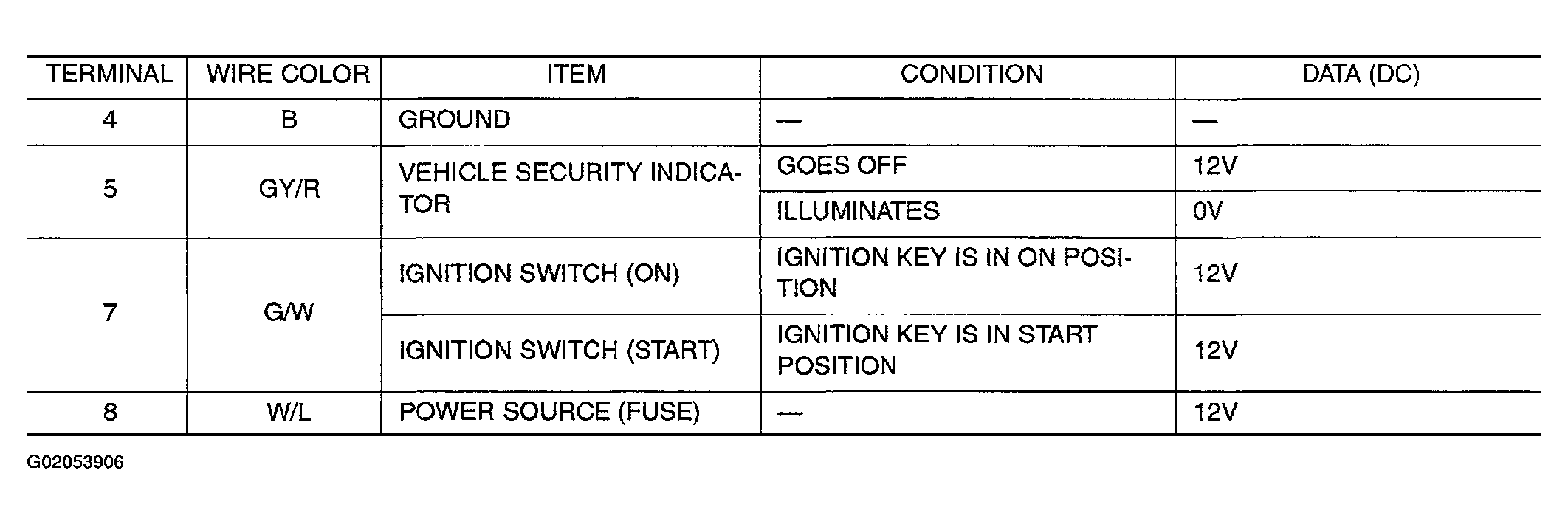

Fig 2: QG25DE Unit Terminal Reference Values

Courtesy of NISSAN MOTOR CO., U.S.A.
