Wiring Diagram - NATS - (QG18DE Models)

NOTE: For system wiring diagrams, see SYSTEM WIRING DIAGRAMS article. For wiring diagram references to PG-POWER  , see POWER DISTRIBUTION .

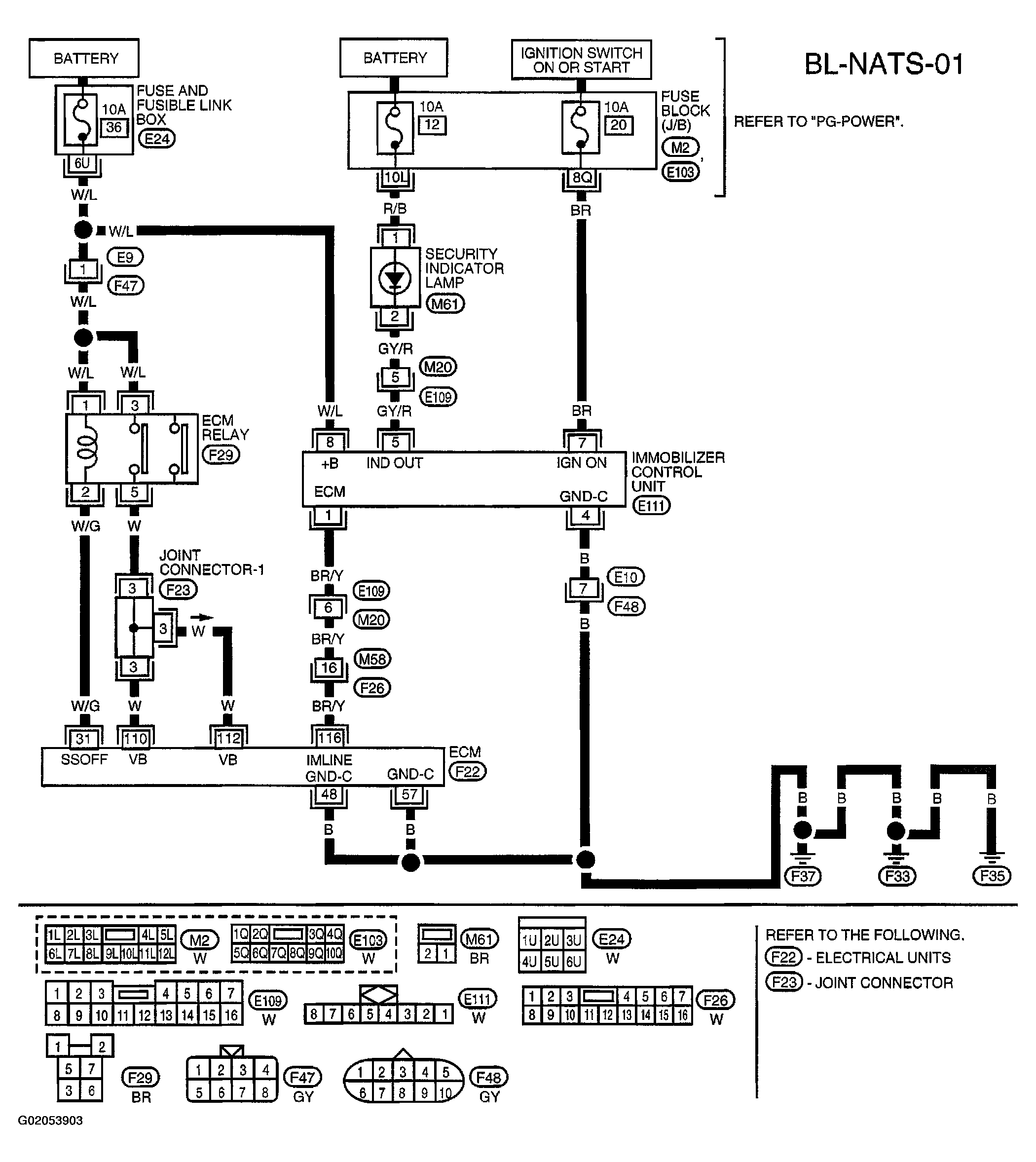

Fig 1: QG18DE Vehicle Immobilizer System Wiring Diagram BL-NATS-01 (1.8L)

Courtesy of NISSAN MOTOR CO., U.S.A.

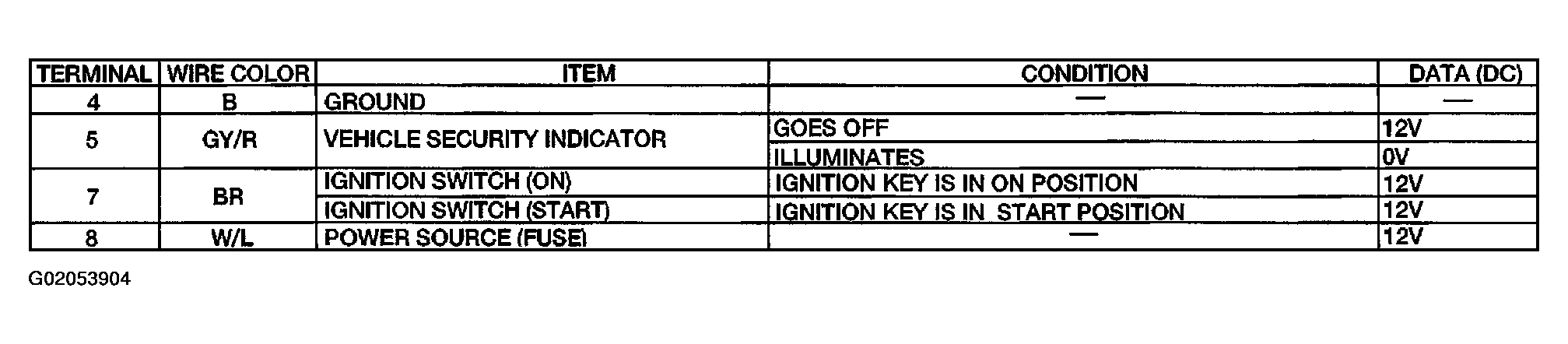

Fig 2: QG18DE Unit Terminal Reference Values

Courtesy of NISSAN MOTOR CO., U.S.A.
