Diagnostic Procedure 3

Self-diagnostic results:

DIFFERENCE OF KEY displayed on CONSULT-II screen

1. CONFIRM SELF-DIAGNOSTIC RESULTS

   Confirm SELF-DIAGNOSTIC RESULTS DIFFERENCE OF KEY displayed on CONSULT-II screen.

   Fig 1: Displaying DIFFERENCE OF KEY On CONSULT-II Screen

   Courtesy of NISSAN MOTOR CO., U.S.A.

   Is CONSULT-II screen displayed as above?

   1. Yes: GO to 2.
   2. No: GO TO SYMPTOM MATRIX CHART 1.
2. PERFORM INITIALIZATION WITH CONSULT-II

   Perform initialization with CONSULT-II. Re-register all NVIS (NATS) ignition key IDs.

   For initialization, refer to CONSULT-II OPERATION MANUAL IVIS/NVIS.

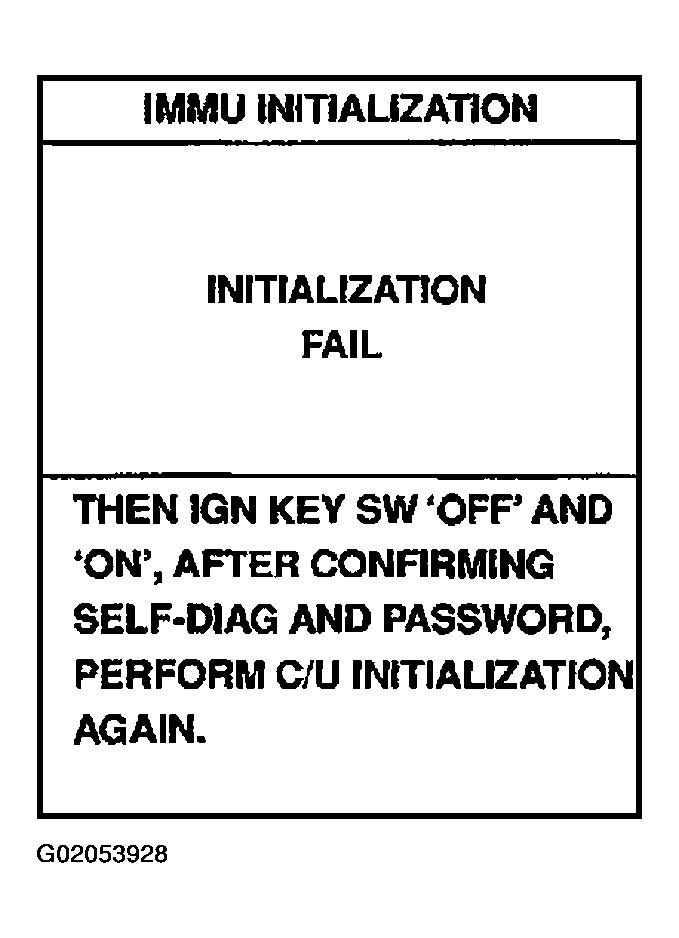

   Fig 2: Displaying INITIALIZATION FAIL On CONSULT-II Screen

   Courtesy of NISSAN MOTOR CO., U.S.A.
   NOTE: If the initialization is not completed or fails, CONSULT-II shows above message on the screen.

   Can the system be initialized?

   1. Yes:
      • Start engine. (END)
      • (Ignition key ID was unregistered. Ref. part No. D  )
   2. No:
      • NVIS (NATS) IMMU is malfunctioning.
      • Replace NVIS (NATS) IMMU. Ref. part No. A
      • Perform initialization with CONSULT-II.
      • For initialization, refer to CONSULT-II OPERATION MANUAL IVIS/NVIS.
