Front Brake Caliper Exploded View (Frontier, Pathfinder & XTERRA)
Front Brake Caliper Exploded View (Frontier, Pathfinder & XTERRA)

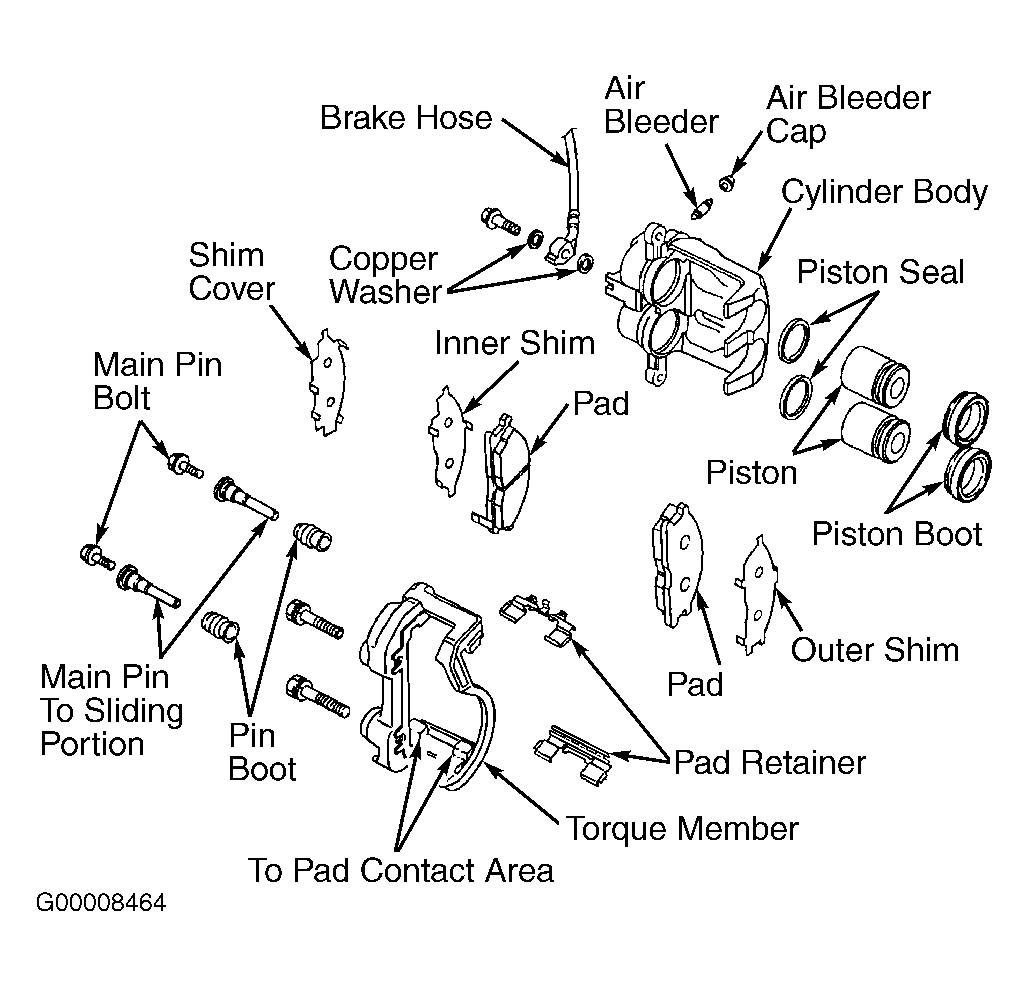

Fig 1: Exploded View Of Dual-Piston Front Brake Caliper (Frontier, Pathfinder & Xterra)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
