Sensor Spring Adjustment (Pathfinder 4WD)

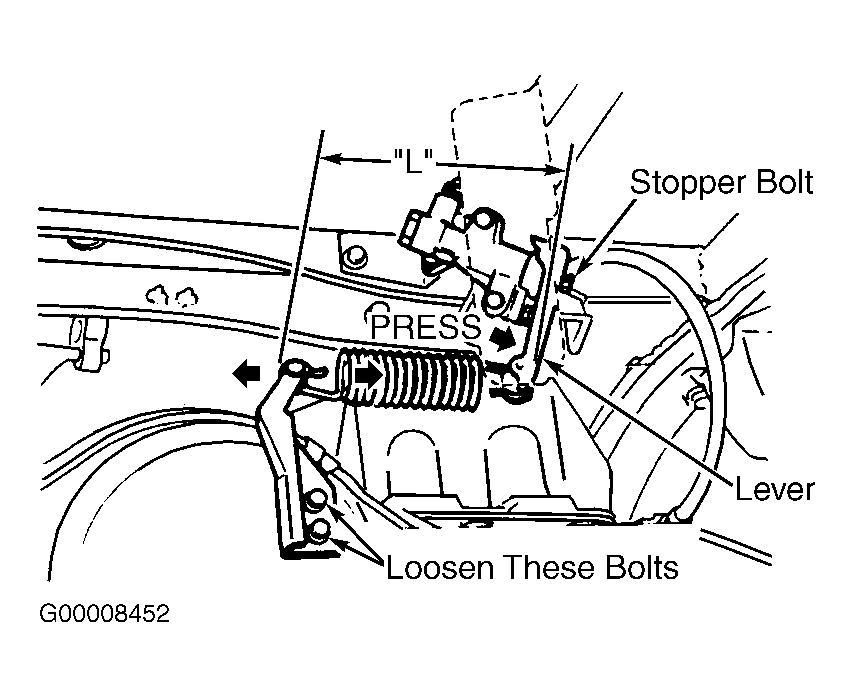

Ensure vehicle is in unladen condition and parked on a level surface. Press lever to stopper bolt and adjust sensor spring length "L" to 8.56" (217.4 mm). See Figure.
Ensure vehicle is in unladen condition and parked on a level surface. Press lever to stopper bolt and adjust sensor spring length "L" to 8.56" (217.4 mm). See Figure.
