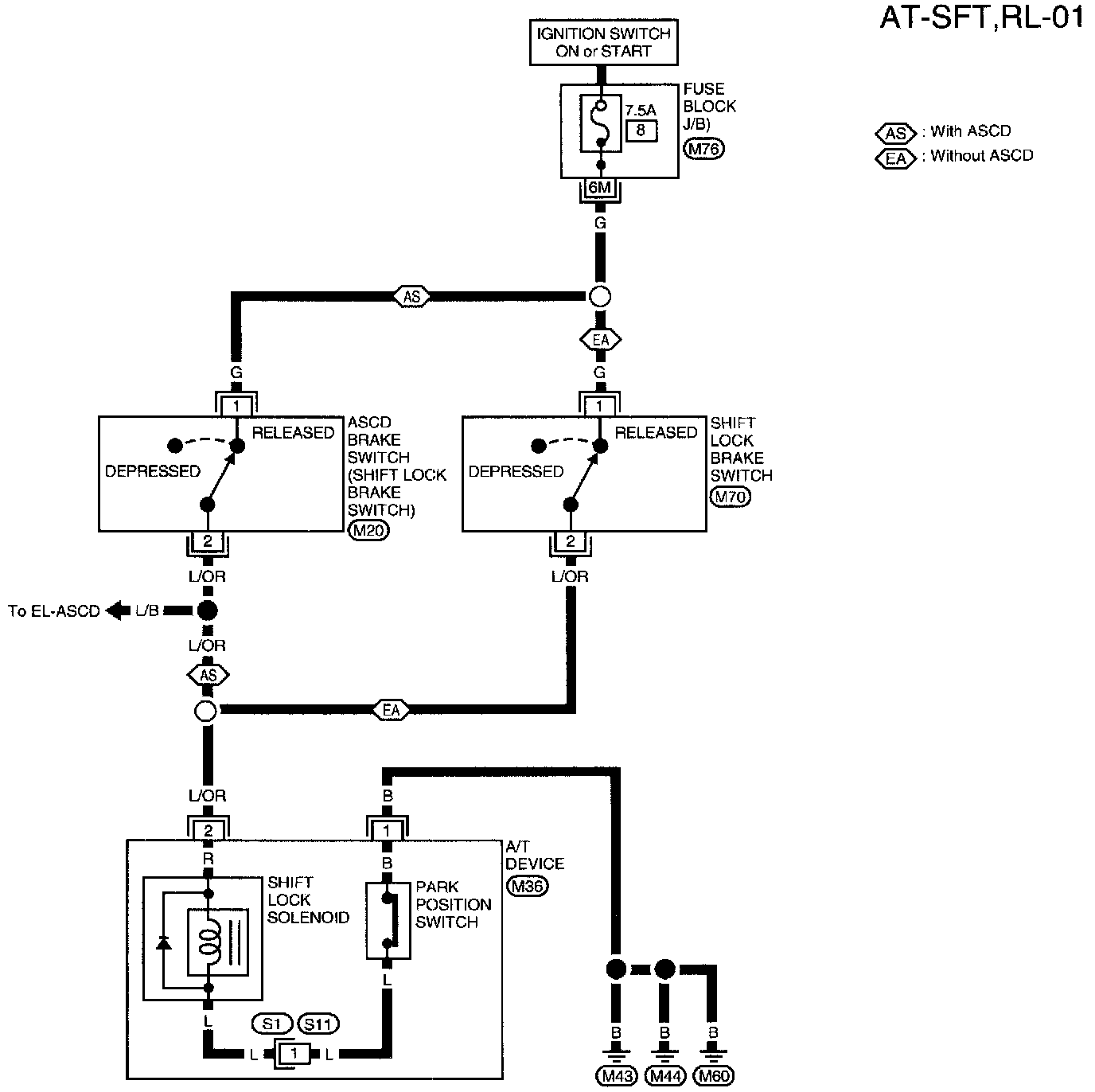

Home >> Nissan-Datsun >> 1999 >> Sentra XE L4-1597cc 1.6L DOHC MFI (GA16DE) >> Repair and Diagnosis >> Transmission and Drivetrain >> Transmission Control Systems >> Testing and Inspection >> Component Tests and General Diagnostics >> Component Diagnostic Procedures >> A/T Shift Lock System >> Wiring Diagrams
