Removal and Installation

REMOVAL

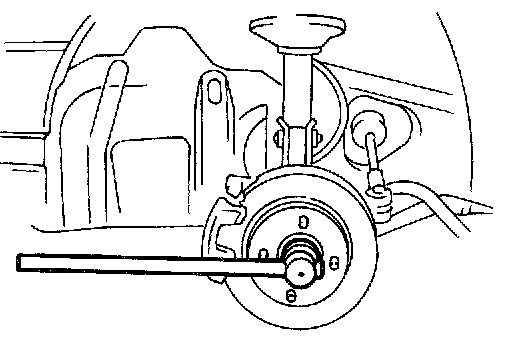

1. Remove wheel bearing lock nut.
- Tie-rod does not need to be disconnected from knuckle.
- Suspend knuckle with wire so as not to stretch brake hose.
- Do not pull or twist brake hose.

2. Remove clip and separate brake hose from strut.
3. Remove strut lower mounting bolts.

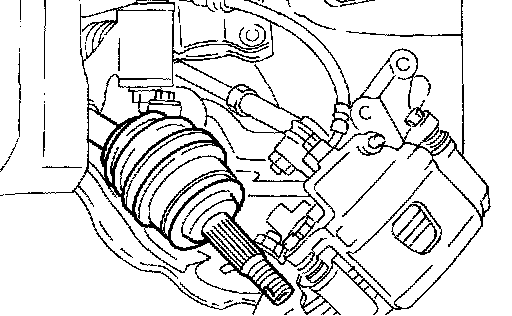

4. Separate drive shaft from knuckle by lightly tapping it. If it is hard to remove, use a puller.
- When removing drive shaft, cover boots with shop towel to prevent damage to them.





5. Remove right drive shaft from transaxle.

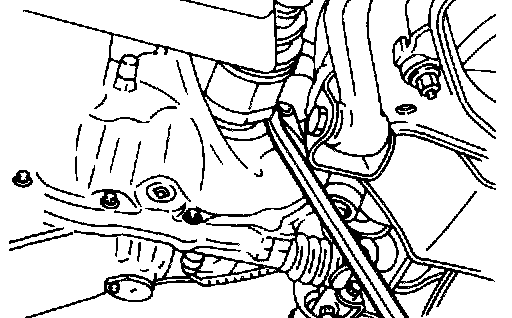

- Pry drive shaft from transaxle as shown.





6. Remove left drive shaft from transaxle.
- For M/T models -
- Pry drive shaft from transaxle as shown.





- For A/T models -

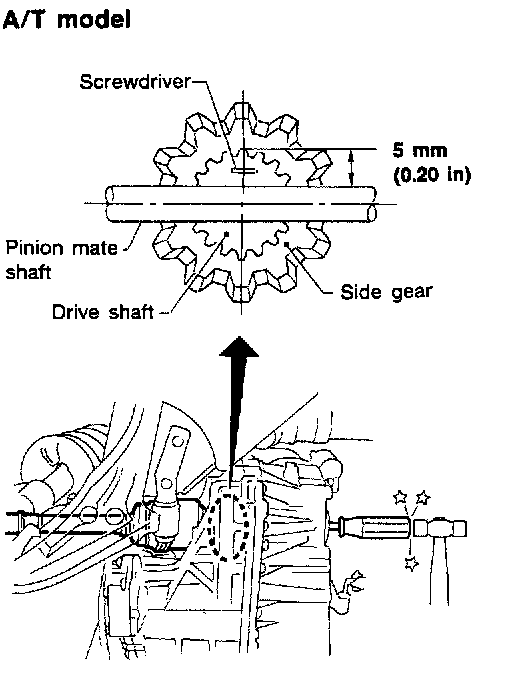

- Insert screwdriver into transaxle opening for right drive shaft and strike with a hammer.
- Be careful not to damage pinion mate shaft and side gear.

INSTALLATION

Transaxle Side





1. Drive a new oil seal to transaxle.
2. Set Tool along the inner circumference of oil seal (transaxle side).





3. Insert drive shaft into transaxle. Be sure to properly align the serrations and then withdraw Tool.
4. Push drive shaft, then press-fit circular clip on the drive shaft into circular clip groove of side gear.
5. After its insertion, try to pull the slide joint out of the transaxle by hand. If it pulls out, the circular clip is not properly meshed with the side gear.

Wheel Side
1. Install drive shaft into knuckle.





2. Tighten wheel bearing lock nut.
