Front

REMOVAL AND INSTALLATION

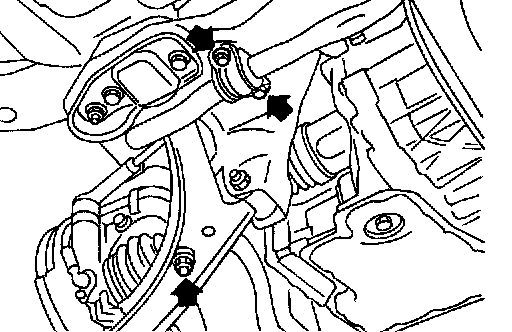

- Remove stabilizer bar.

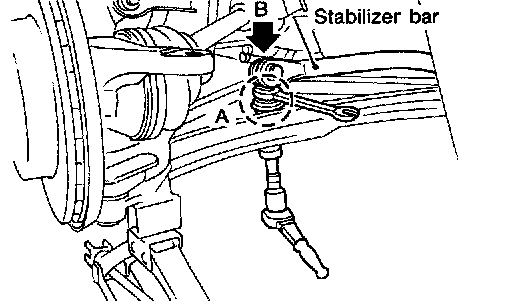

- When removing or installing stabilizer bar, secure portion A with wrench as shown.

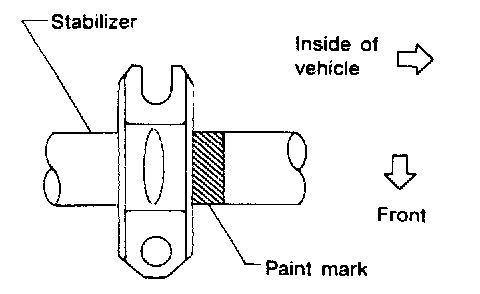

- When installing stabilizer, make sure the paint mark and clamp are in the correct positions.

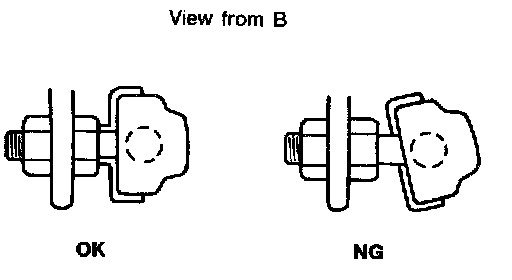

- Install stabilizer bar with ball joint socket properly placed.

INSPECTION

- Check stabilizer for deformation or cracks. Replace if necessary.
- Check rubber bushings for deterioration or cracks. Replace if necessary.

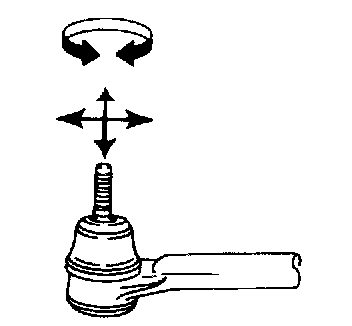

- Check ball joint rotation in all directions. If movement is not smooth and free, replace stabilizer bar link.
