Procedure 8

Inspecting SRS intermittent malfunction by using CONSULT - Diagnosis mode






1. Turn ignition switch OFF.
2. Connect CONSULT to Data Link Connector.






3. Turn ignition switch ON.
4. Touch "START".






5. Touch "AIRBAG".






6. Touch "SELF-DIAG [PAST]".






7. If diagnostic codes are displayed on "SELF-DIAG [PAST]", go to step 10. Procedure 10






If no malfunction is detected on "SELF-DIAG [PAST]", touch "BACK" and go back to "SELECT DIAG MODE".






8. Touch "TROUBLE DIAG RECORD".

NOTE: With "TROUBLE DIAG RECORD", diagnosis results previously erased by a reset operation can be displayed.






9. Diagnostic code is displayed on "TROUBLE DIAG RECORD".
10. Touch "PRINT".

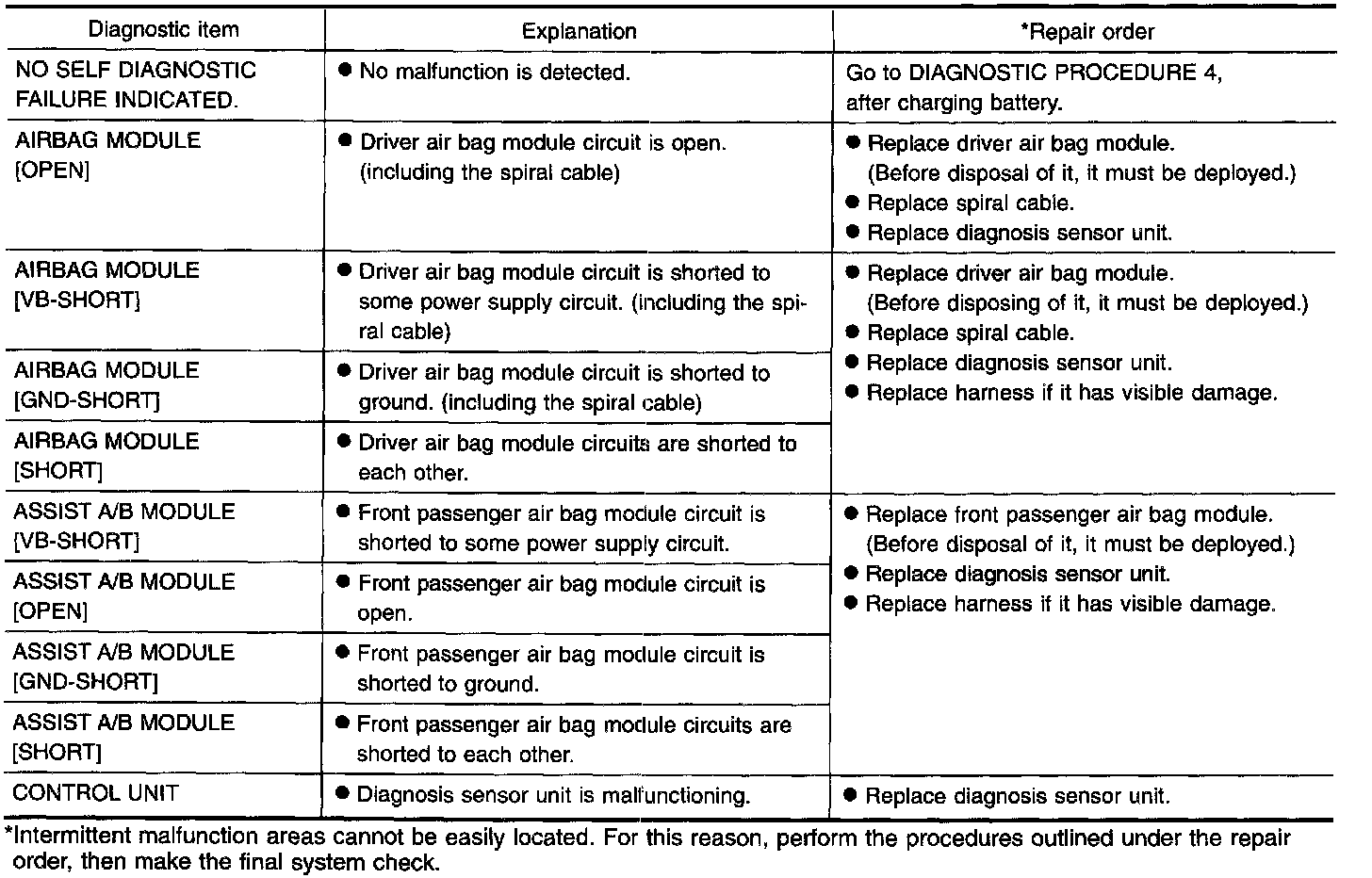

INTERMITTENT MALFUNCTION DIAGNOSTIC CODE CHART:

11. Compare diagnostic codes to the INTERMITTENT MALFUNCTION DIAGNOSTIC CODE CHART.
12. Touch BACK key of CONSULT until "SELECT SYSTEM" appears, then turn off CONSULT.
13. Turn ignition switch OFF, then disconnect CONSULT and both battery cables.
14. Repair the system as outlined by the Repair order in INTERMITTENT MALFUNCTION DIAGNOSTIC CODE CHART, that corresponds to the self-diagnostic result. Air Bag System
15. Go to DIAGNOSTIC PROCEDURE 4, for final checking. Procedure 4
