Procedure 1

Checking SRS operation by using "AIR BAG" warning lamp - User mode
1. After turning ignition switch from OFF to ON, "AIR BAG" warning lamp operates.

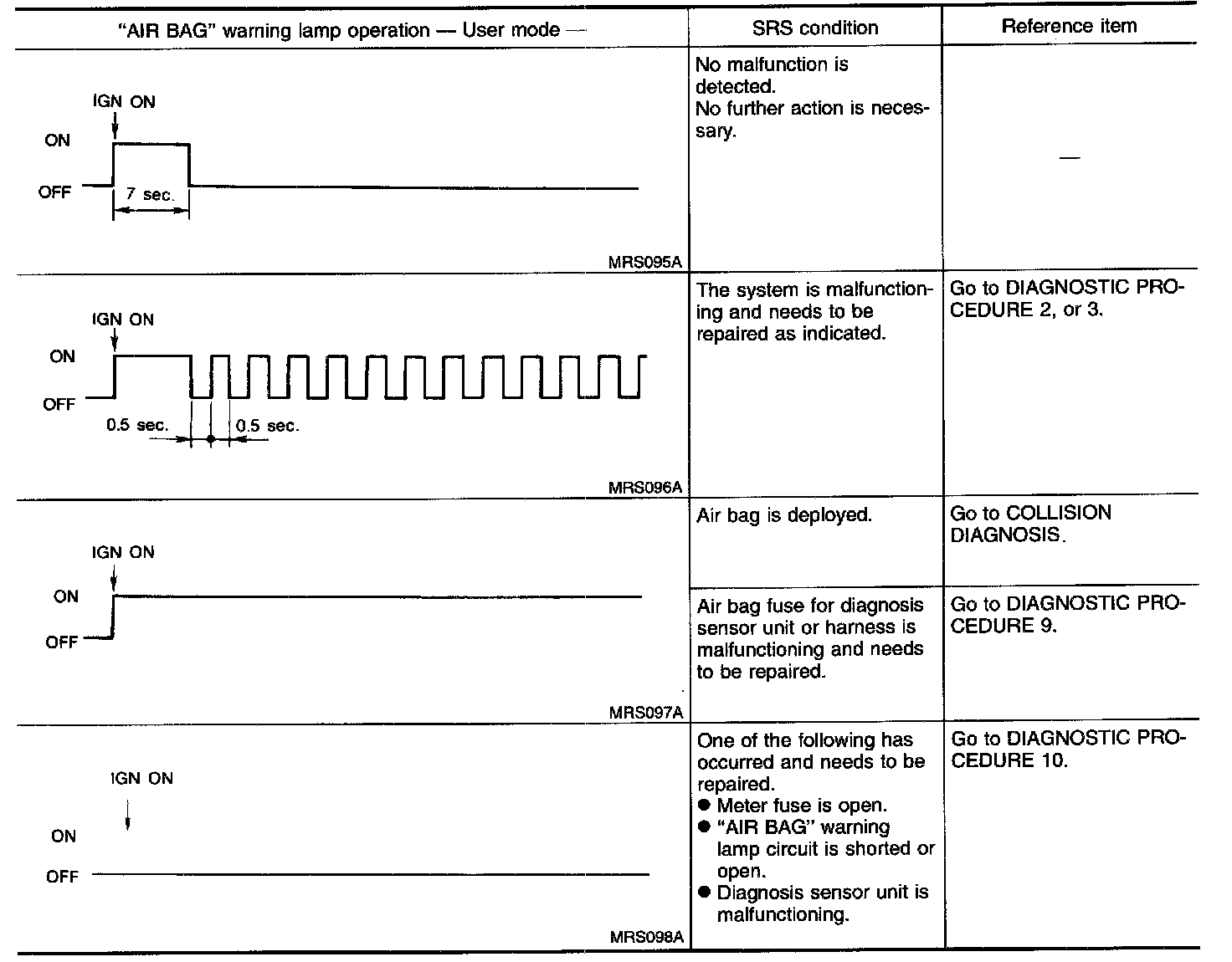

2. Compare "AIR BAG" warning lamp operation to the chart.

NOTE: If "AIR BAG" warning lamp operates differently from the operations shown, refer to "AIR BAG" warning lamp operation - Diagnosis mode -, DIAGNOSTIC PROCEDURE 3 (step 4). Procedure 4Then repair as necessary.
