A/T - Harsh Shift/Low Power

Classification:
AT98-009

Reference:
NTB98-086

Date:
November 1, 1998

1995-99 SENTRA/200SX A/T HARSH SHIFT/LOW POWER

APPLIED VEHICLE:
1995-99 Sentra/2OOSX (B14)

APPLIED ENGINE:
GA16DE

SERVICE INFORMATION

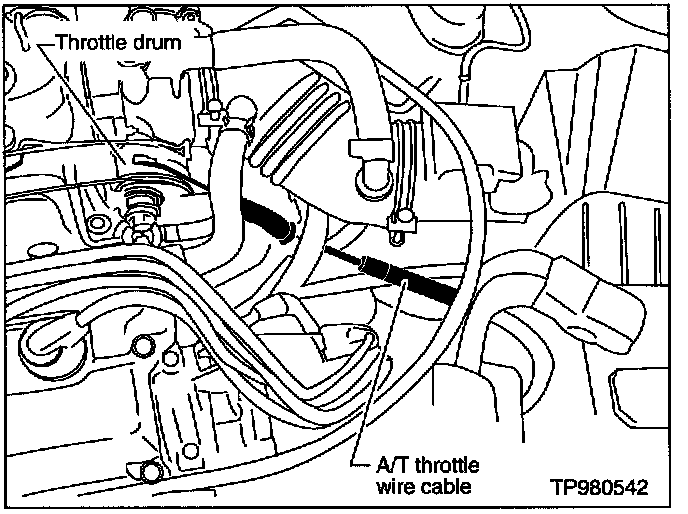

If an applied Sentra/200SX with a GA16DE engine lacks power when accelerating and/or the transmission shifts are harsh and delayed, the cause may be reduced movement of the A/T throttle wire cable inside the cable housing.

A new cable is available which will reduce this incident.

SERVICE PROCEDURE





1. If the vehicle exhibits the symptoms above, follow the diagnostic flowchart.

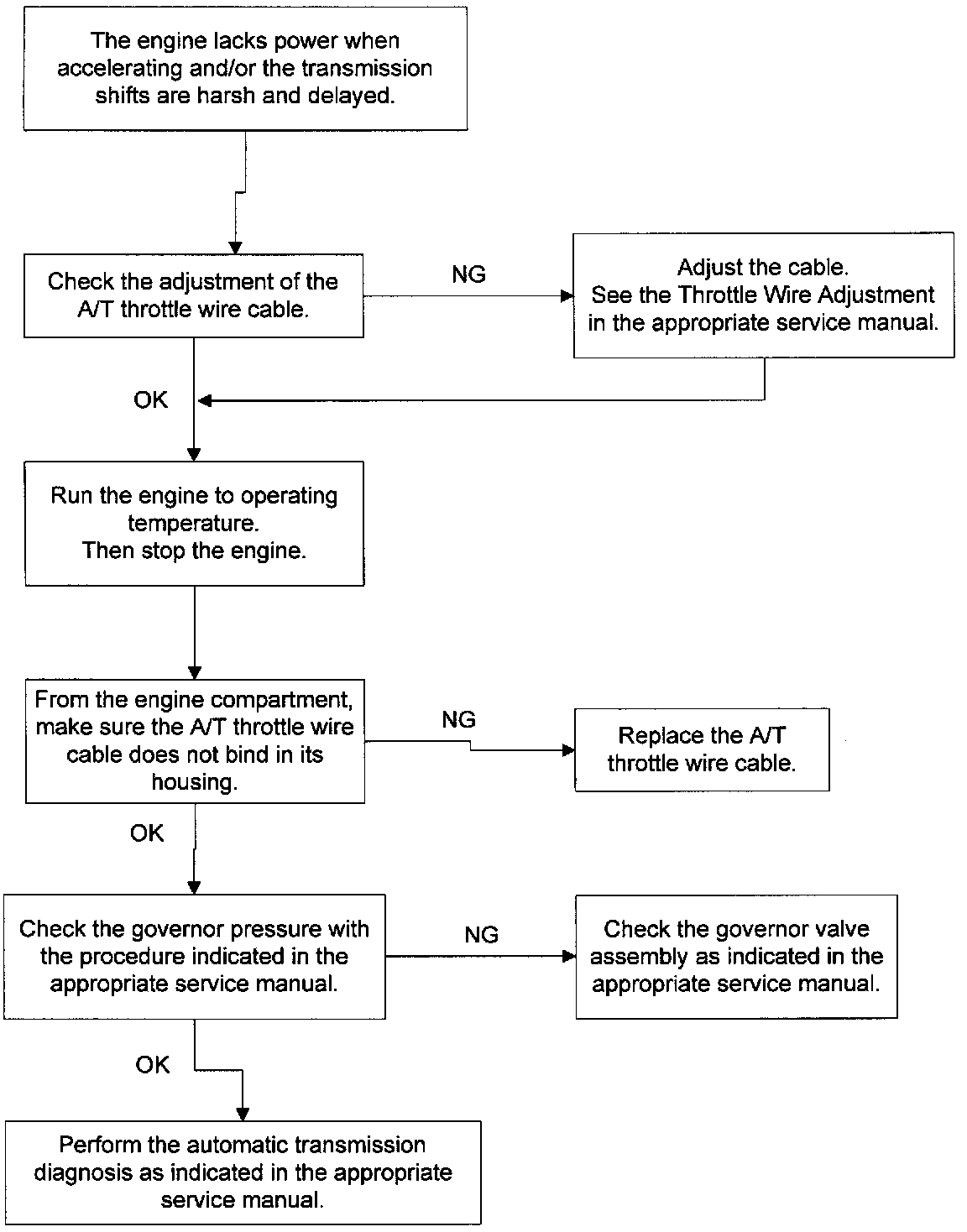

Sentra/200SX A/T Throttle Wire Cable Diagnostic Flowchart





PARTS INFORMATION

CLAIMS INFORMATION





Submit a Primary Failed Part (PP) line using the claims coding as shown.
