Ignition - Distributor Rotor Replacement

Classification:
EC97-002a

Reference:
NTB97-004a

Date:
May 19, 1999

DISTRIBUTOR ROTOR REPLACEMENT

This amended version of NTB97-004 adds B14, D21, WD22, and L30 information to the Applied Vehicles section. Please discard all paper copies of NTB97-004.

APPLIED VEHICLES:
1995-1999 Sentra (B14) - GA16DE Engine only
1995-1998 200SX (B14) - GA16DE Engine only
1990-97 Truck (D21) - KA24 Engines only
1998-2000 Frontier (D22) - KA24DE Engine only
1998-2000 Altima (L30) - All
2000 Xterra (WD22) - KA24DE Engine only

SERVICE INFORMATION

Distributor rotors are now available as replacement parts for the vehicles listed in the Applied Vehicles section of this bulletin. Order them as P/N 22157-4B000.





CAUTION:

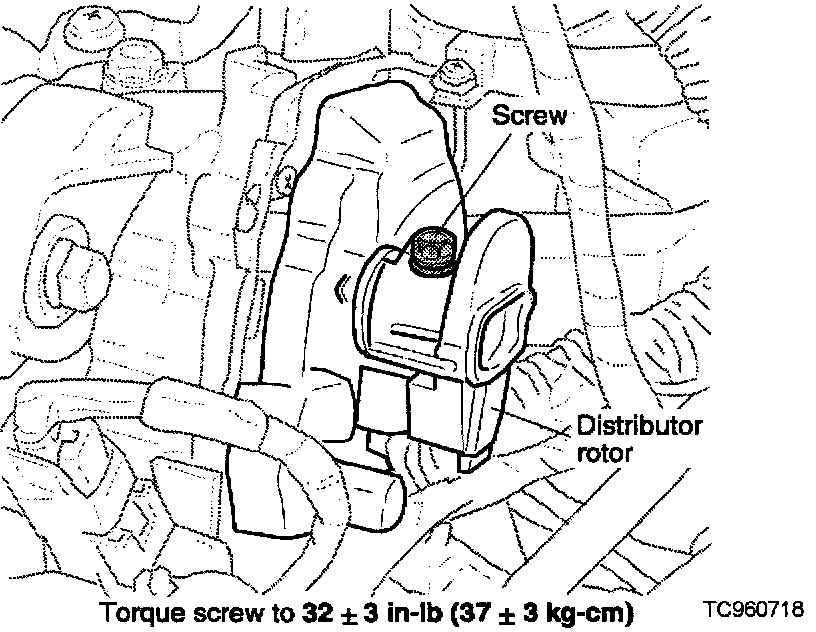

The rotor hold-down screw securing the distributor rotor to the distributor shaft must be torqued to 32 +/- 3 in-lb (37 +/- 3 kg-cm). If not secured to the proper torque the rotor may come loose causing the engine to stop without warning.





PARTS INFORMATION
