CONSULT Inspection Procedure

1. Turn ignition switch OFF.




2. Connect "CONSULT" to data link connector for CONSULT. (Data link connector for CONSULT is located behind the fuse box cover.)
3. Turn ignition switch ON.




4. Touch "START".




5. Touch "ENGINE".







6. Perform each diagnostic test mode according to each service procedure.
For further information, see the CONSULT Operation Manual.
This sample shows the display when using the UE990 program card. Screen differs in accordance with the program card used.

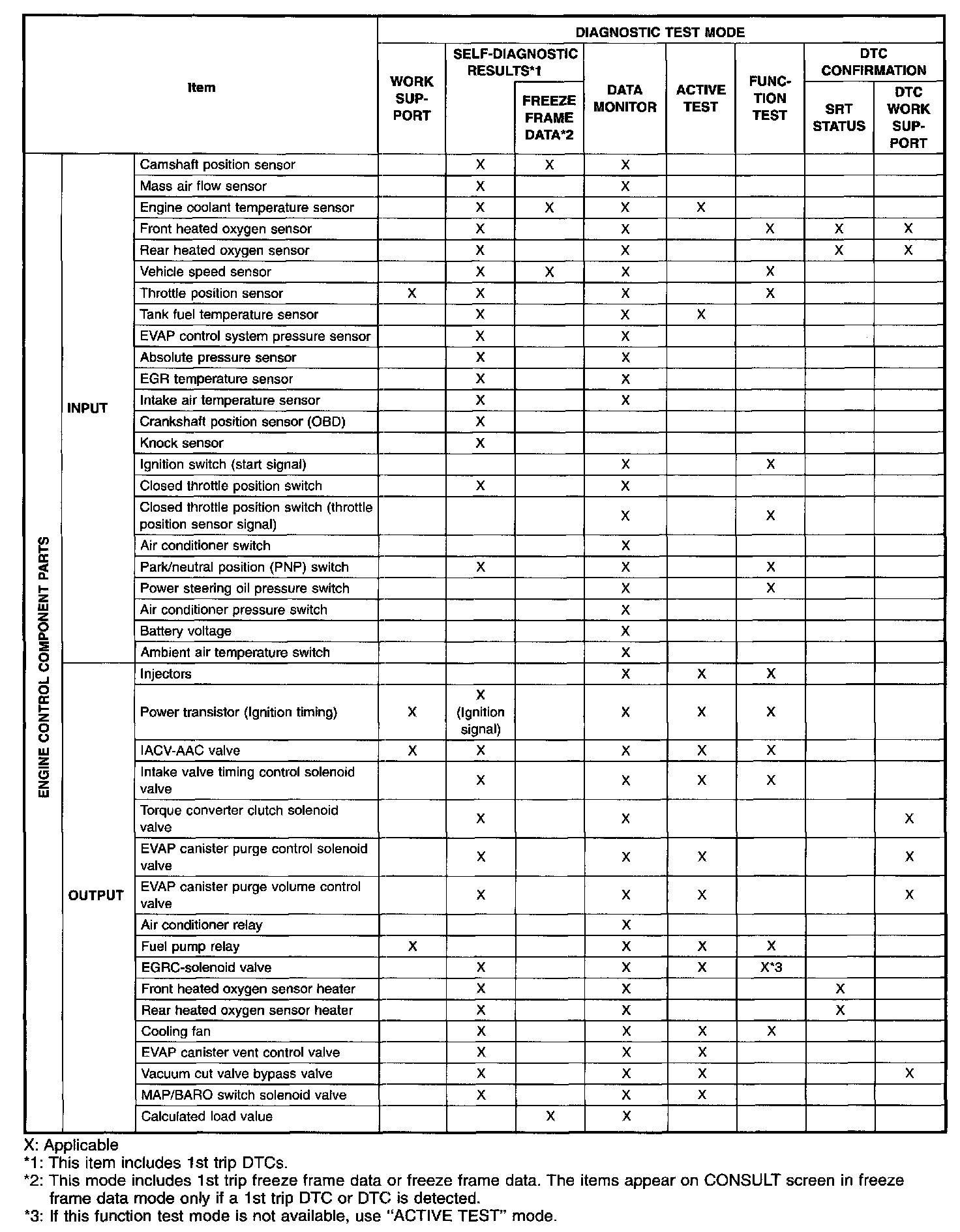

ENGINE CONTROL COMPONENT PARTS/CONTROL SYSTEMS APPLICATION
