Power Supply Testing

Main Power Supply and Ground Circuit

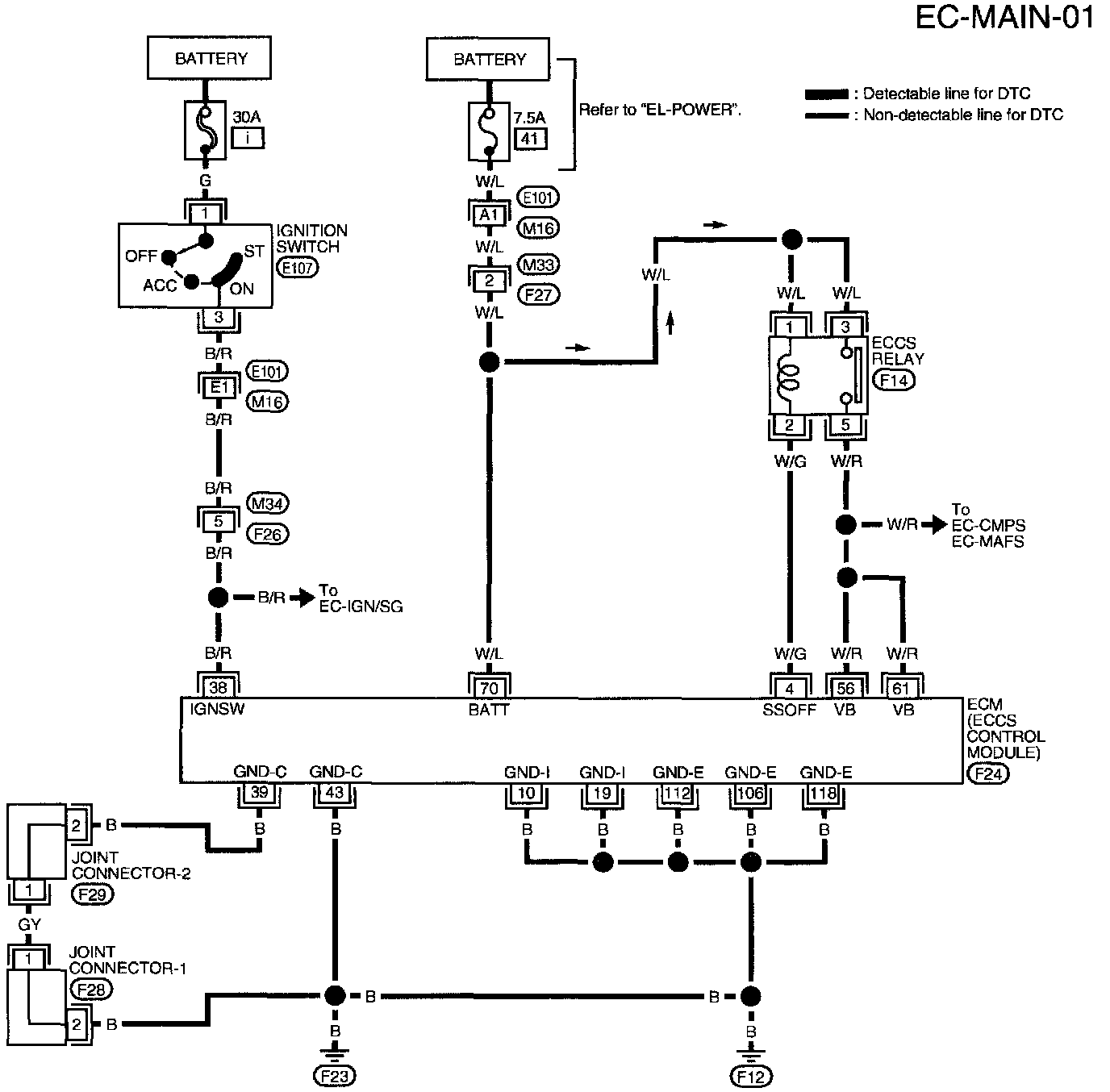

WIRING DIAGRAM

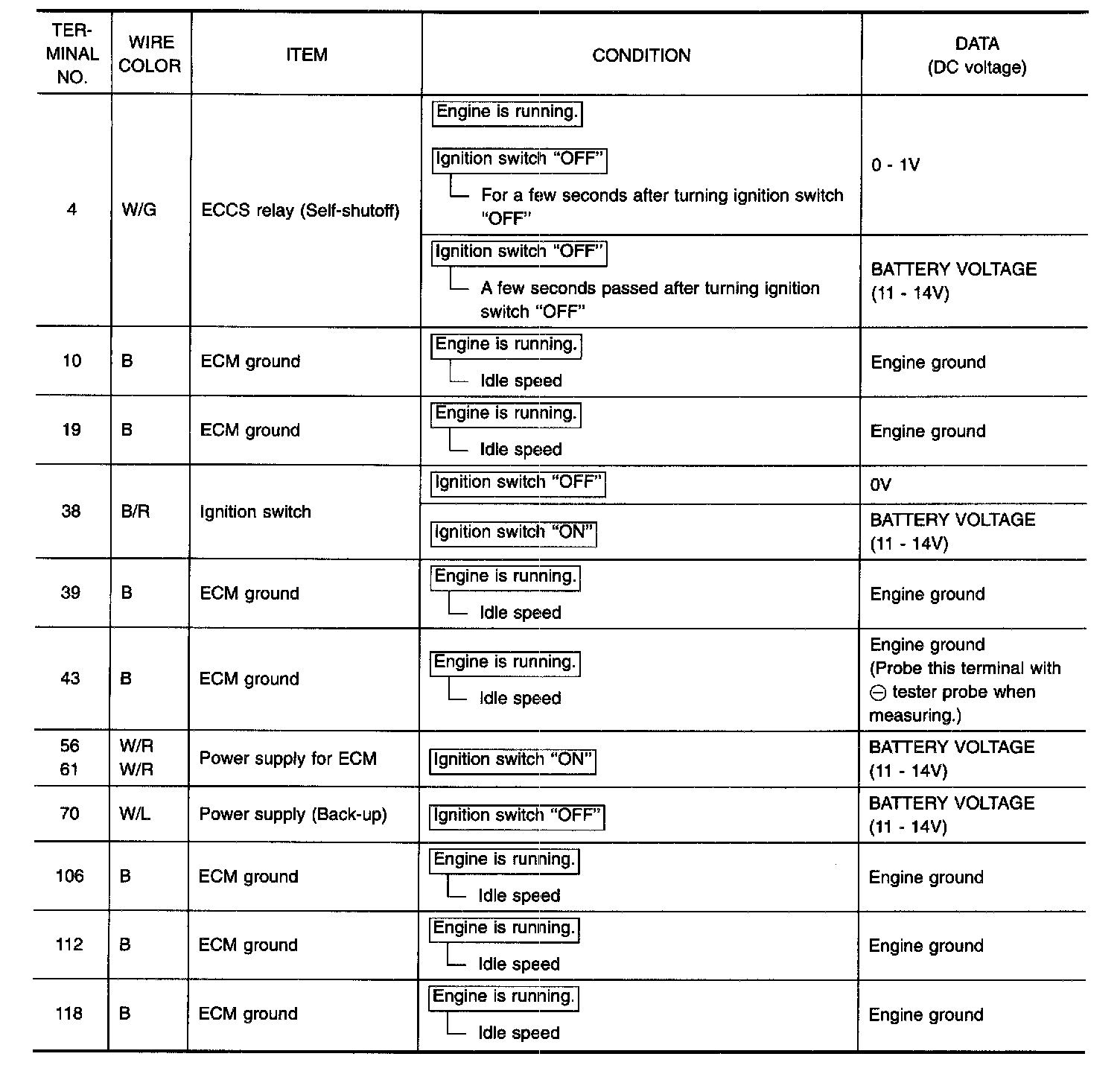

ECM TERMINALS AND REFERENCE VALUE
Specification data are reference values and are measured between each terminal and engine around

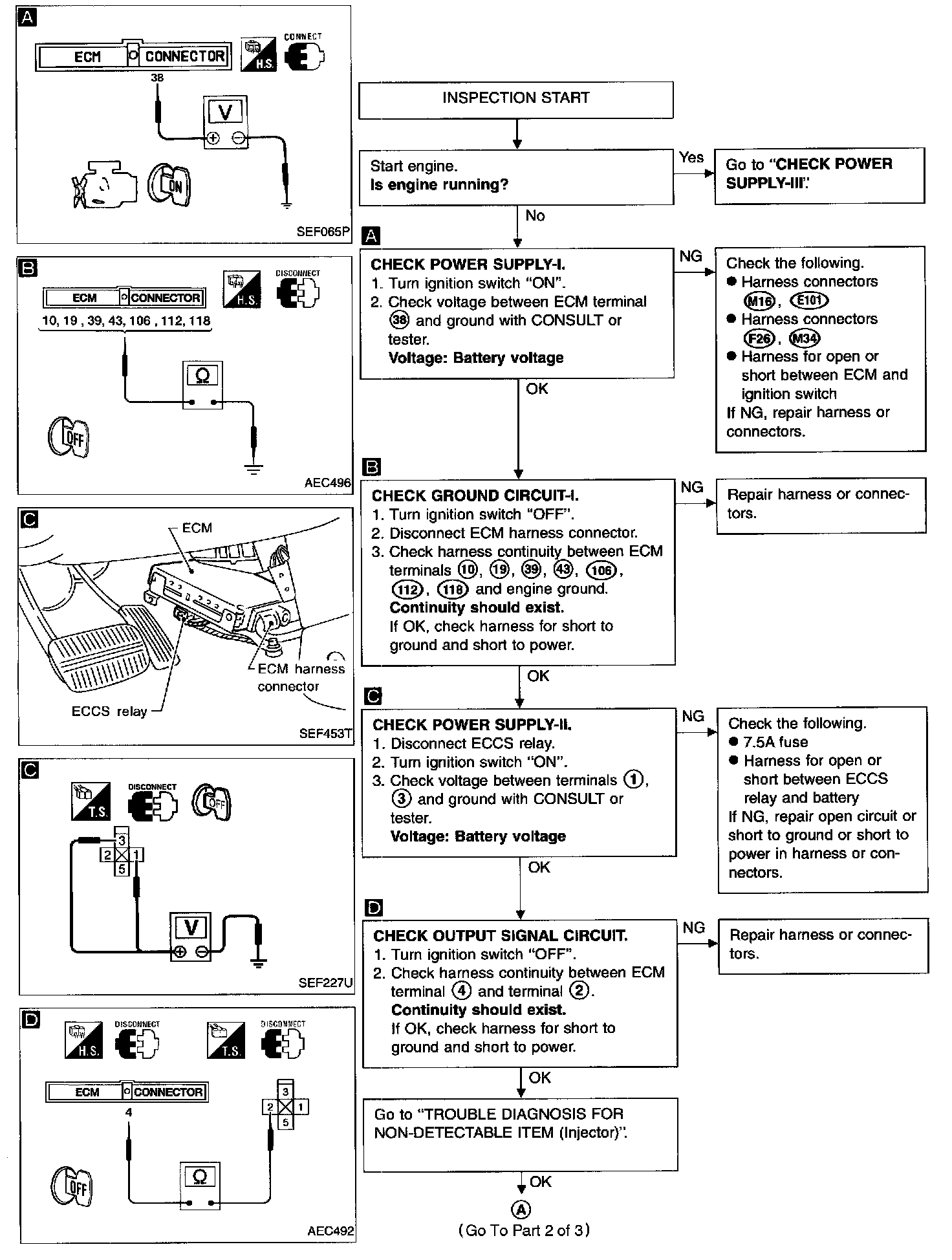

Part 1 Of 3:

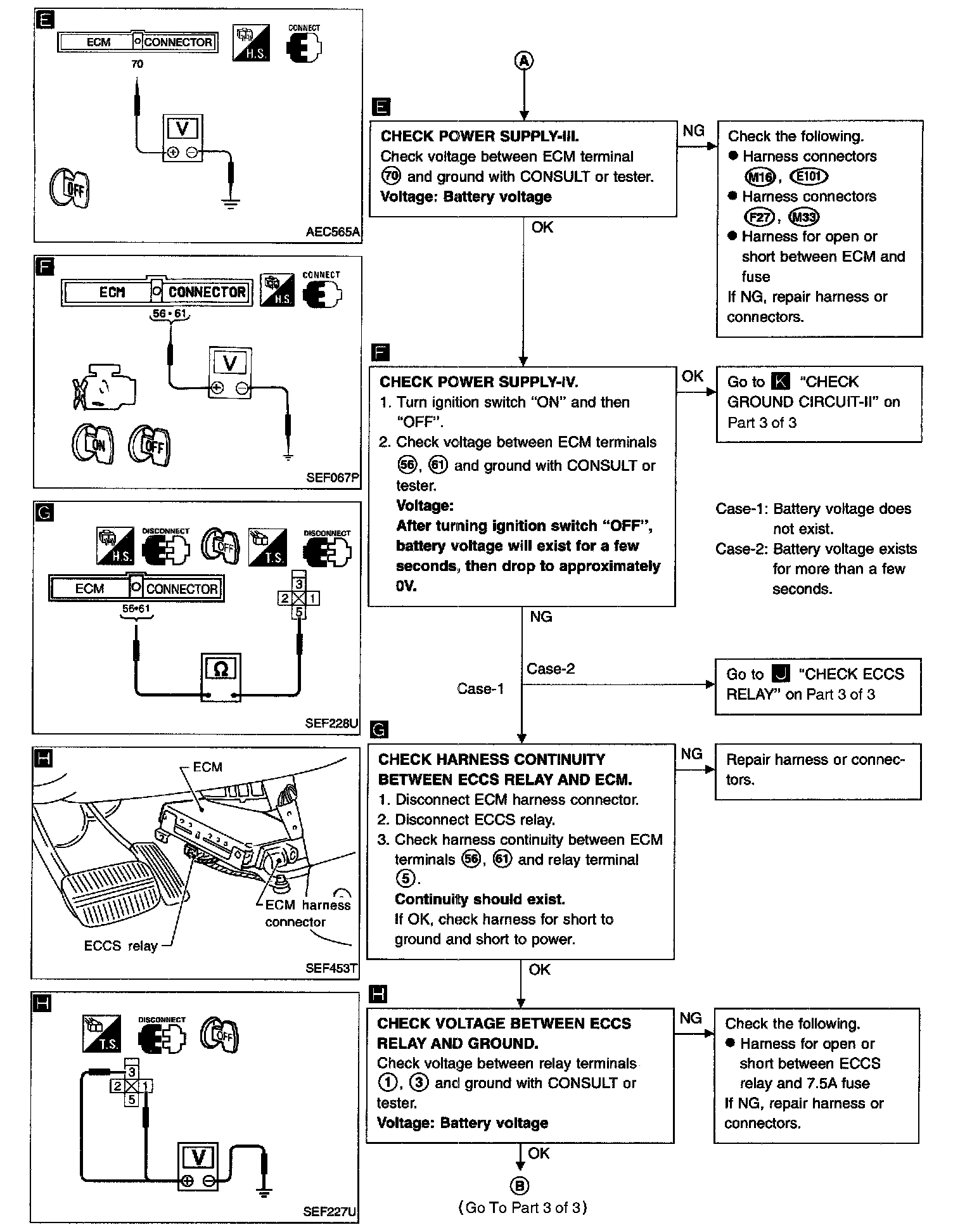

Part 2 Of 3:

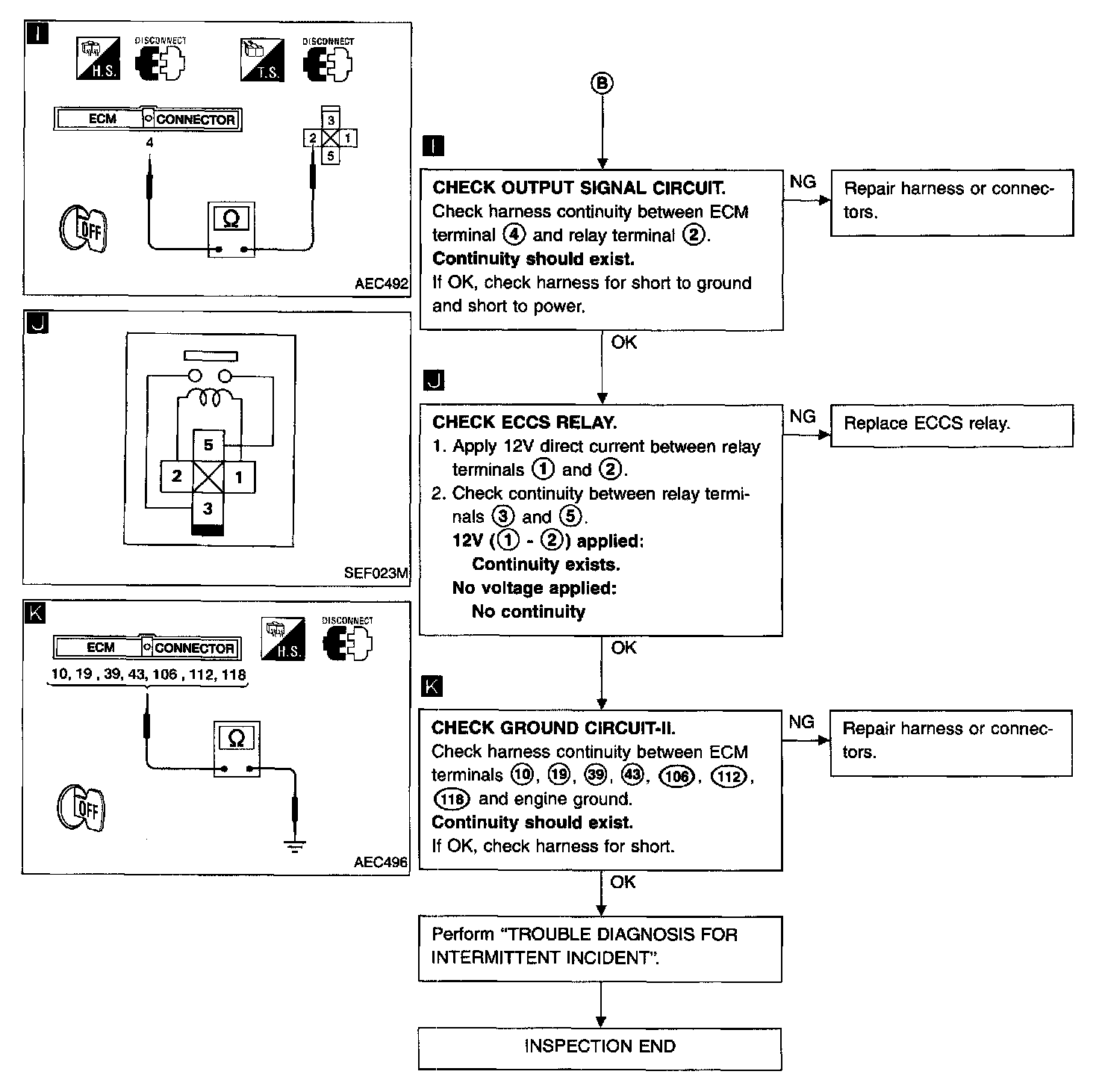

Part 3 Of 3:

DIAGNOSTIC PROCEDURE
