Powertrain Management: Application and ID

All emission related terms used in this publication in accordance with SAE J193O are listed. Accordingly, new terms, new acronyms/abbreviations and old terms are listed in the following chart

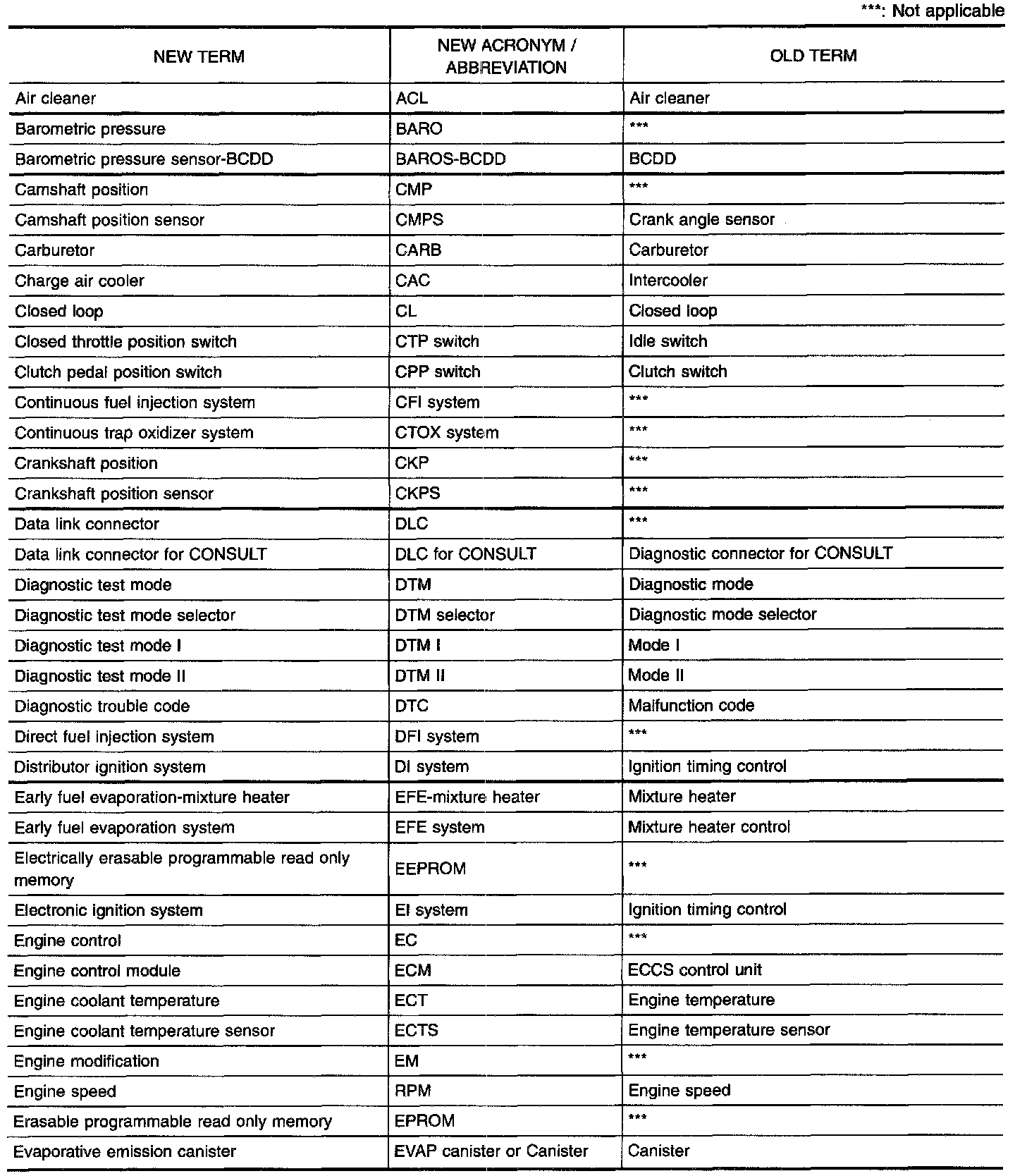

Air Cleaner thru Evaporative emission canister

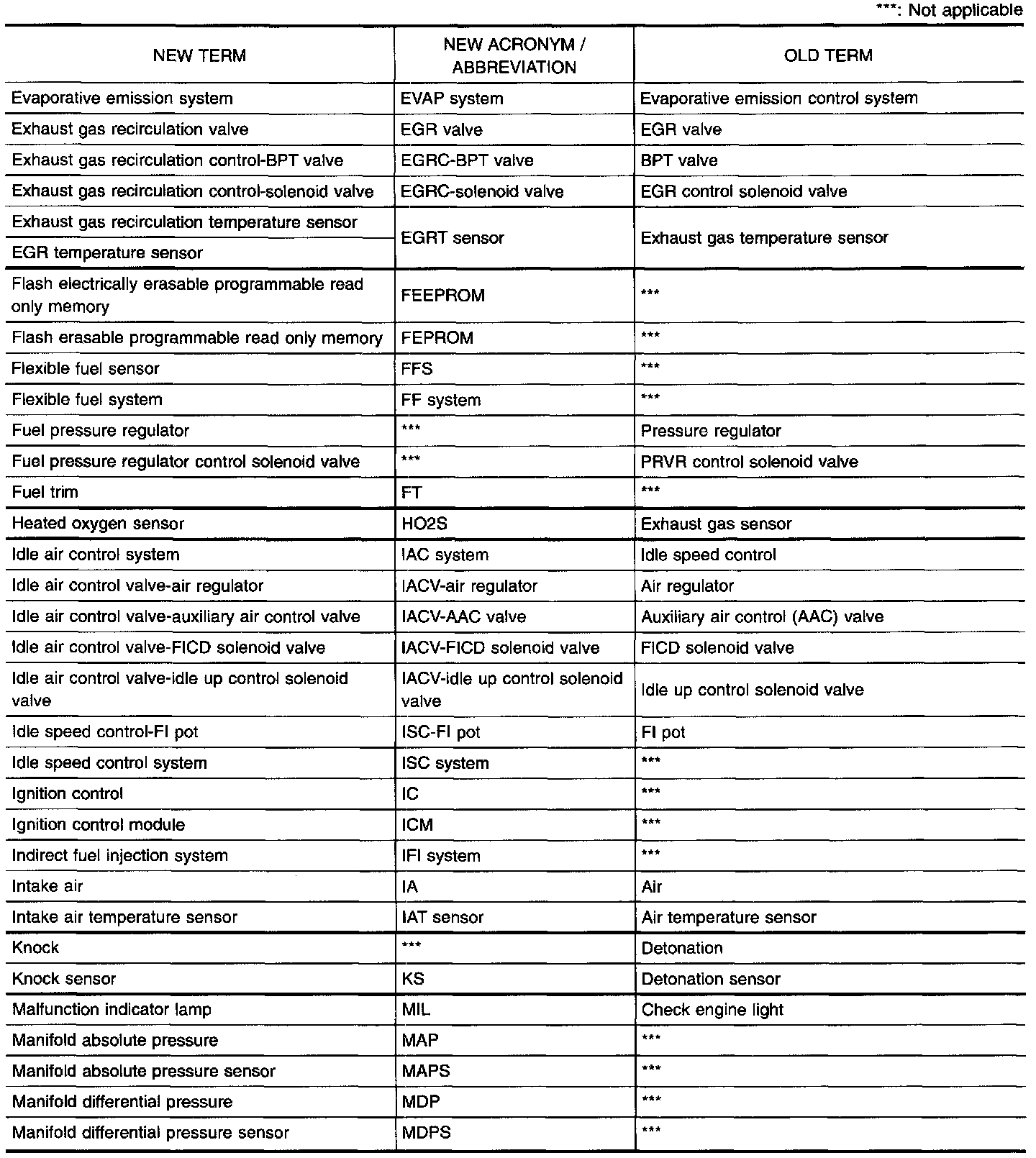

Evaporative emission System thru Manifold Differential Pressure

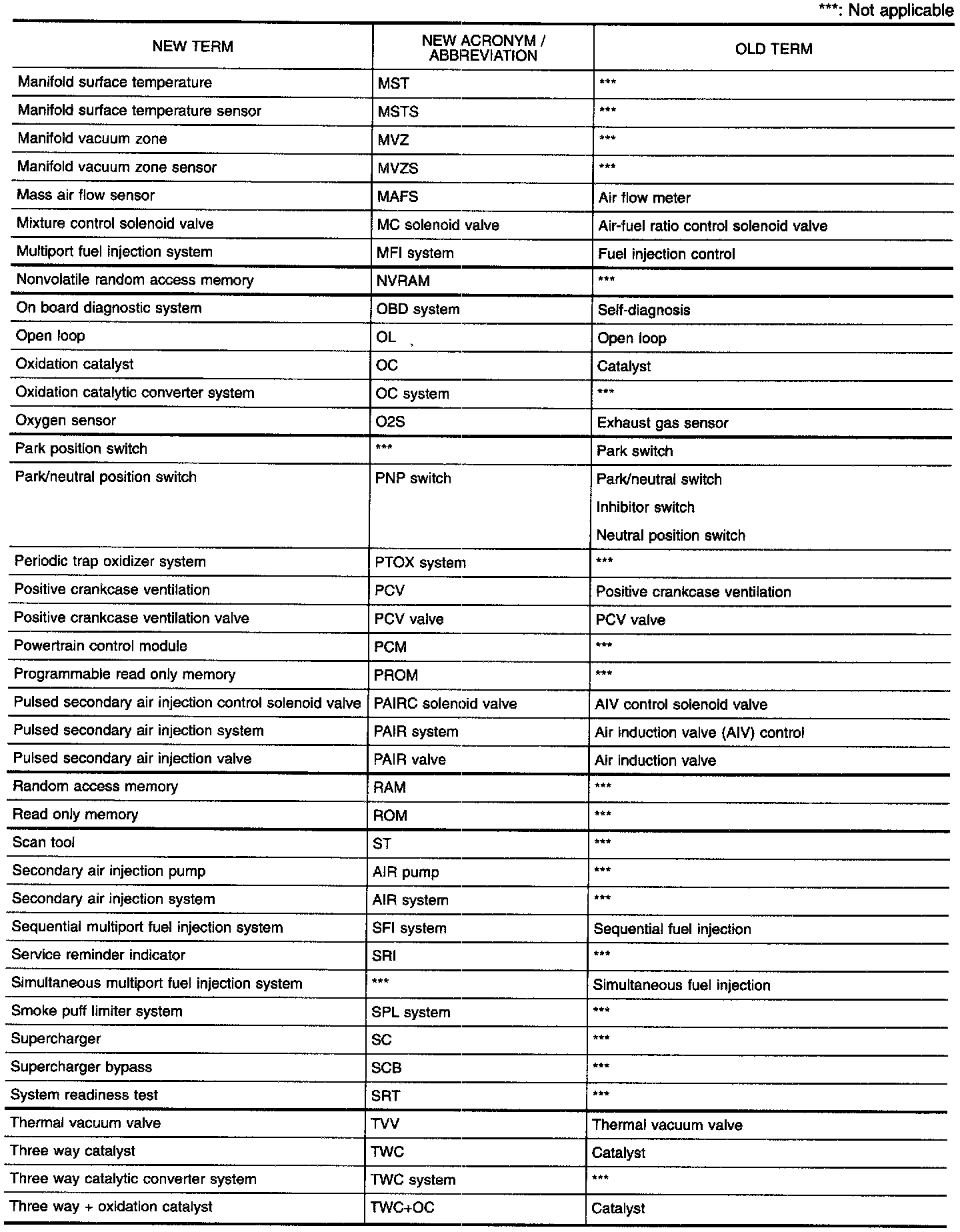

Manifold Surface Temperature thru Three way + oxidation catalyst

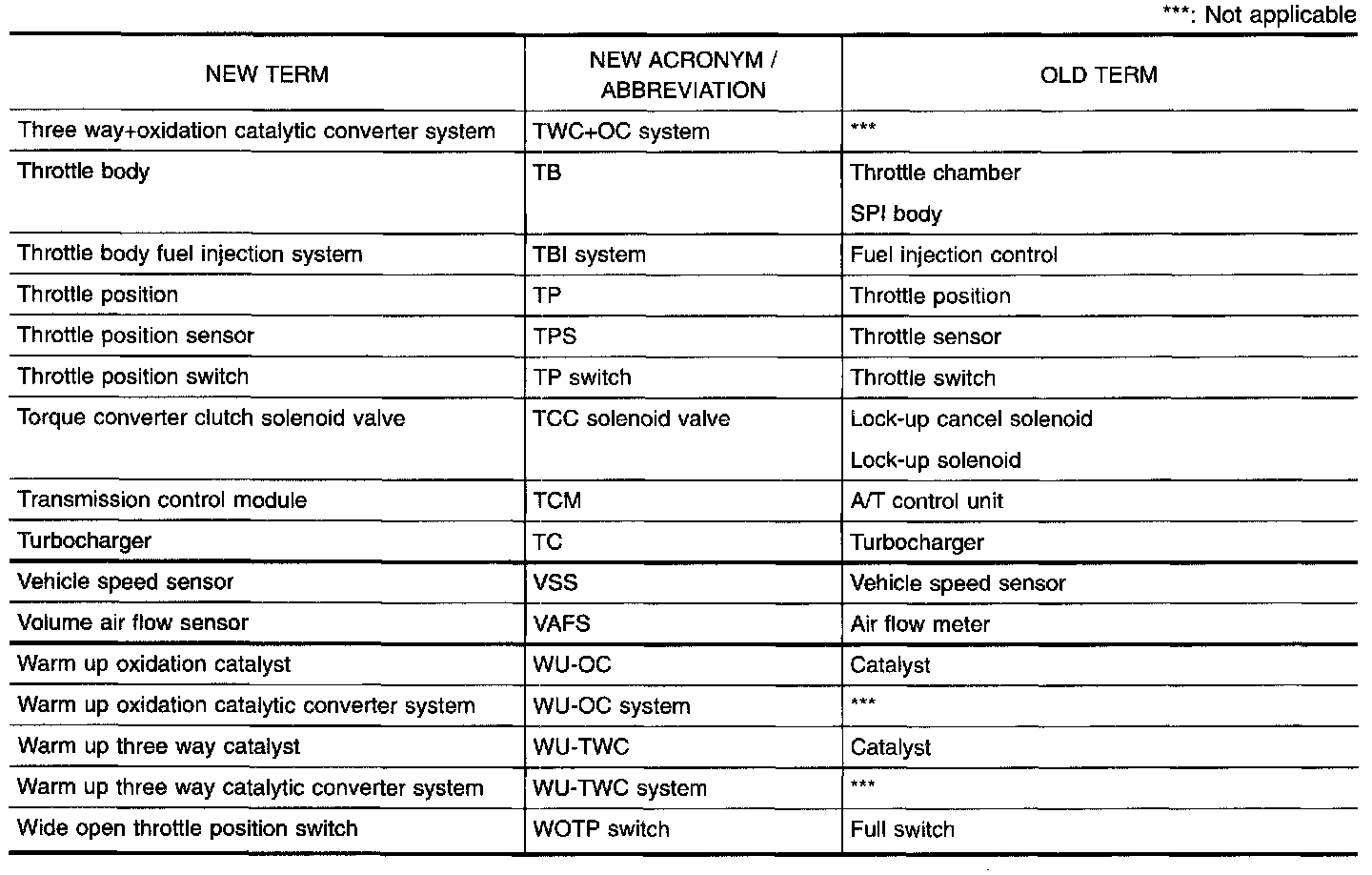

Three way + oxidation catalytic converter system thru Wide open throttle position switch
