Insufficient Cooling

COOLING OPERATION CHECK



1. Start engine.
2. Turn fan control knob to 4-speed.
3. Turn air conditioner switch ON.
4. Check temperature decrease.
a. Turn temperature knob to full cold.
b. Check for cold air at discharge air outlets.

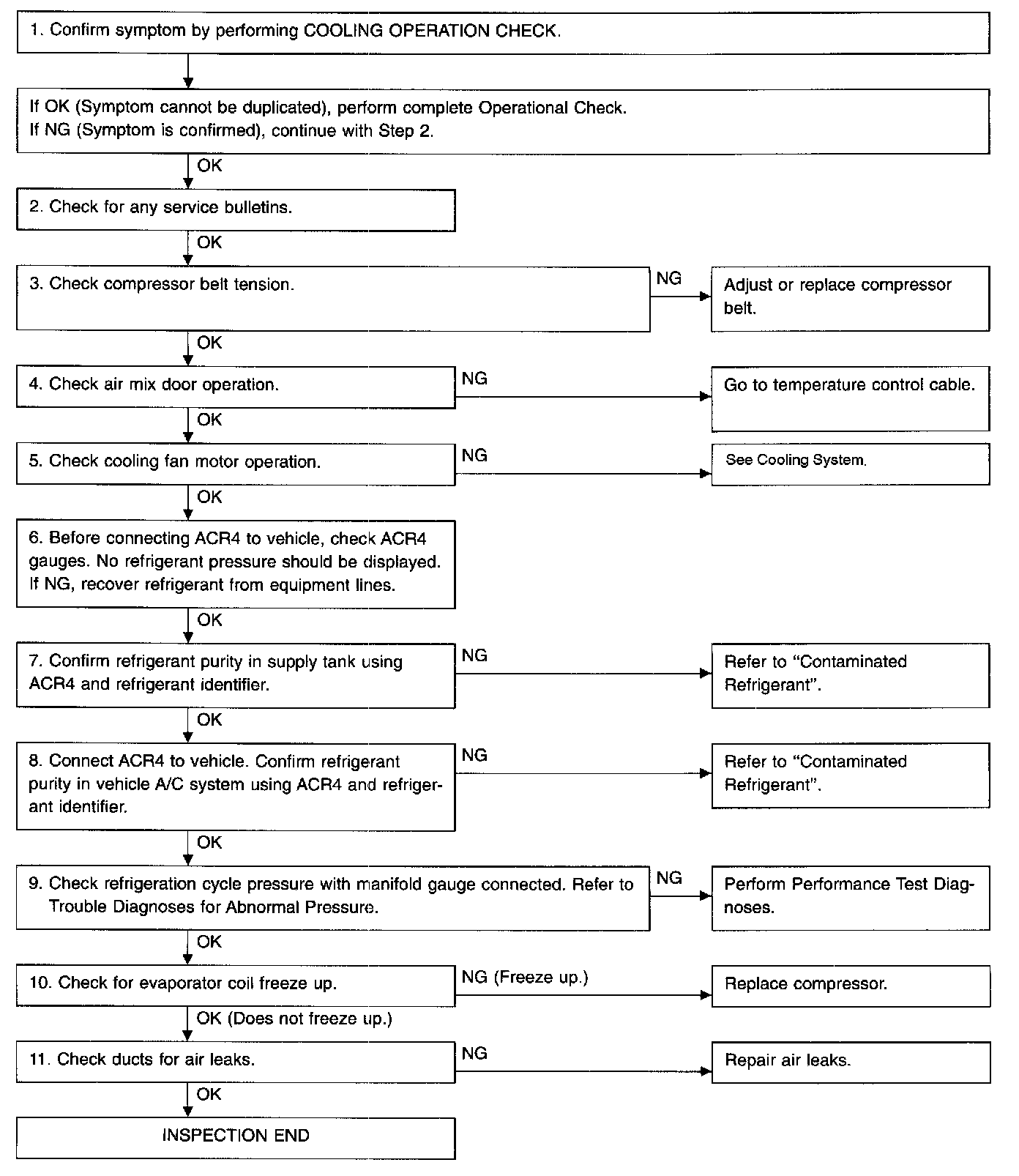

INSPECTION FLOW





PERFORMANCE TEST

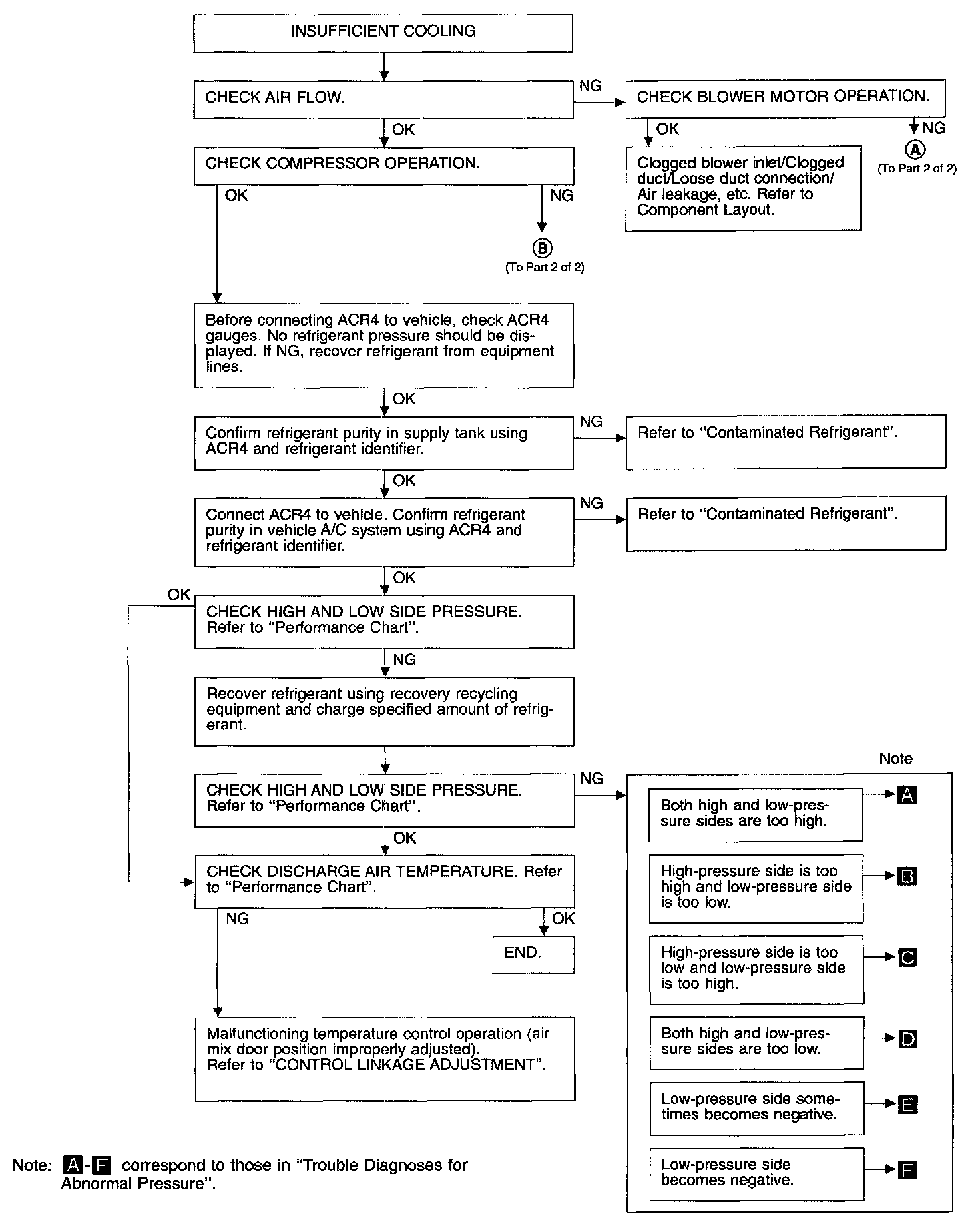

PART 1 OF 2

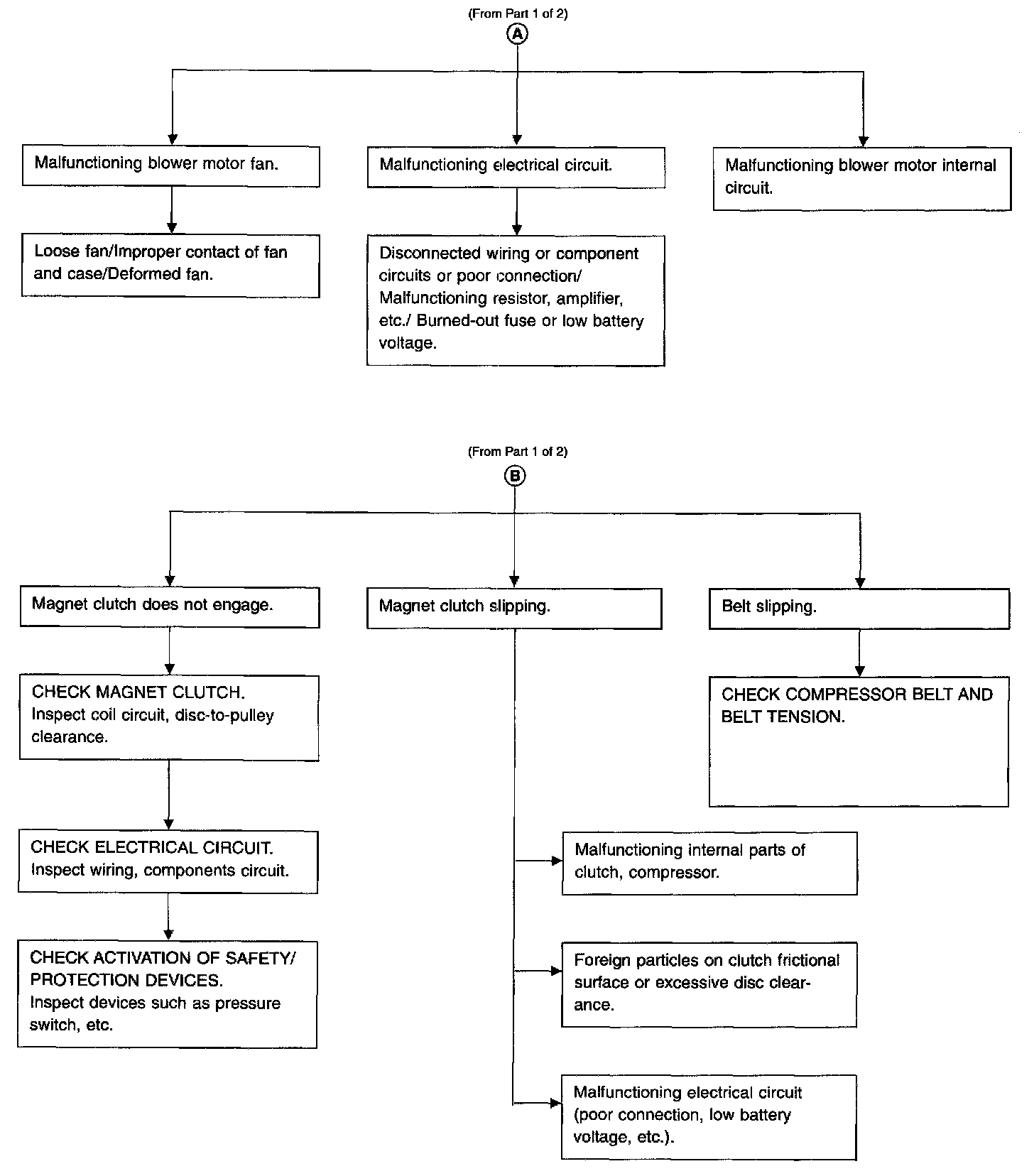

PART 2 OF 2
