Heater Core: Service and Repair

REMOVAL

1. Drain cooling system.
2. Discharge the A/C system.
3. Disconnect the heater hoses from the engine compartment.
4. Remove the instrument panel.




5. Remove the instrument panel reinforcement.
6. Remove the cooling unit.




7. Remove the heater unit.

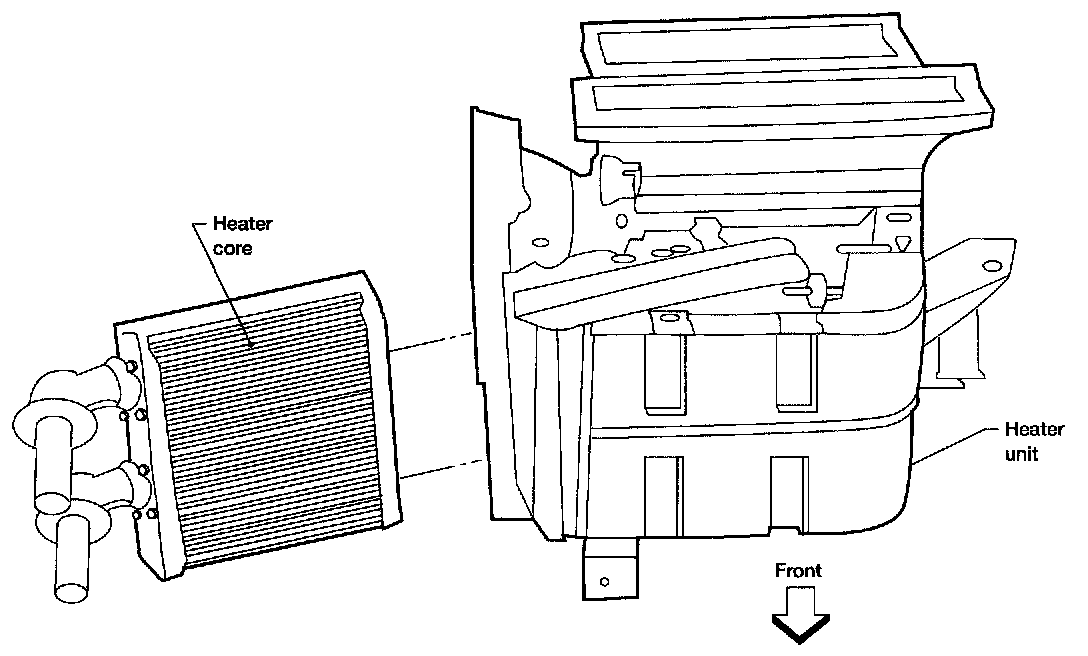

8. Remove the heater core.

INSTALLATION

- Installation is the reverse of removal. Inspect cooling system for leaks.
- Inspect A/C system for refrigerant leaks.
