Engine: Testing and Inspection

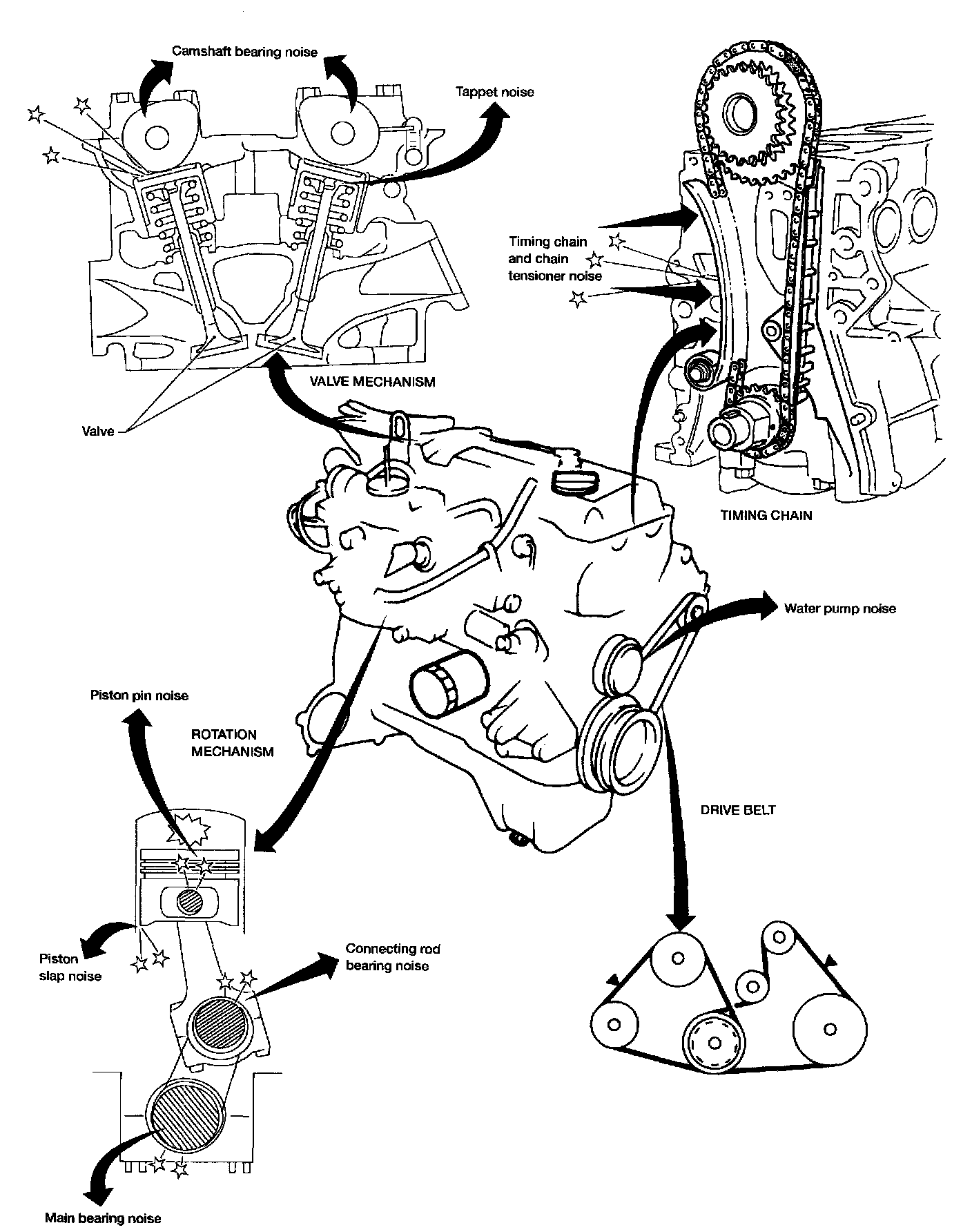

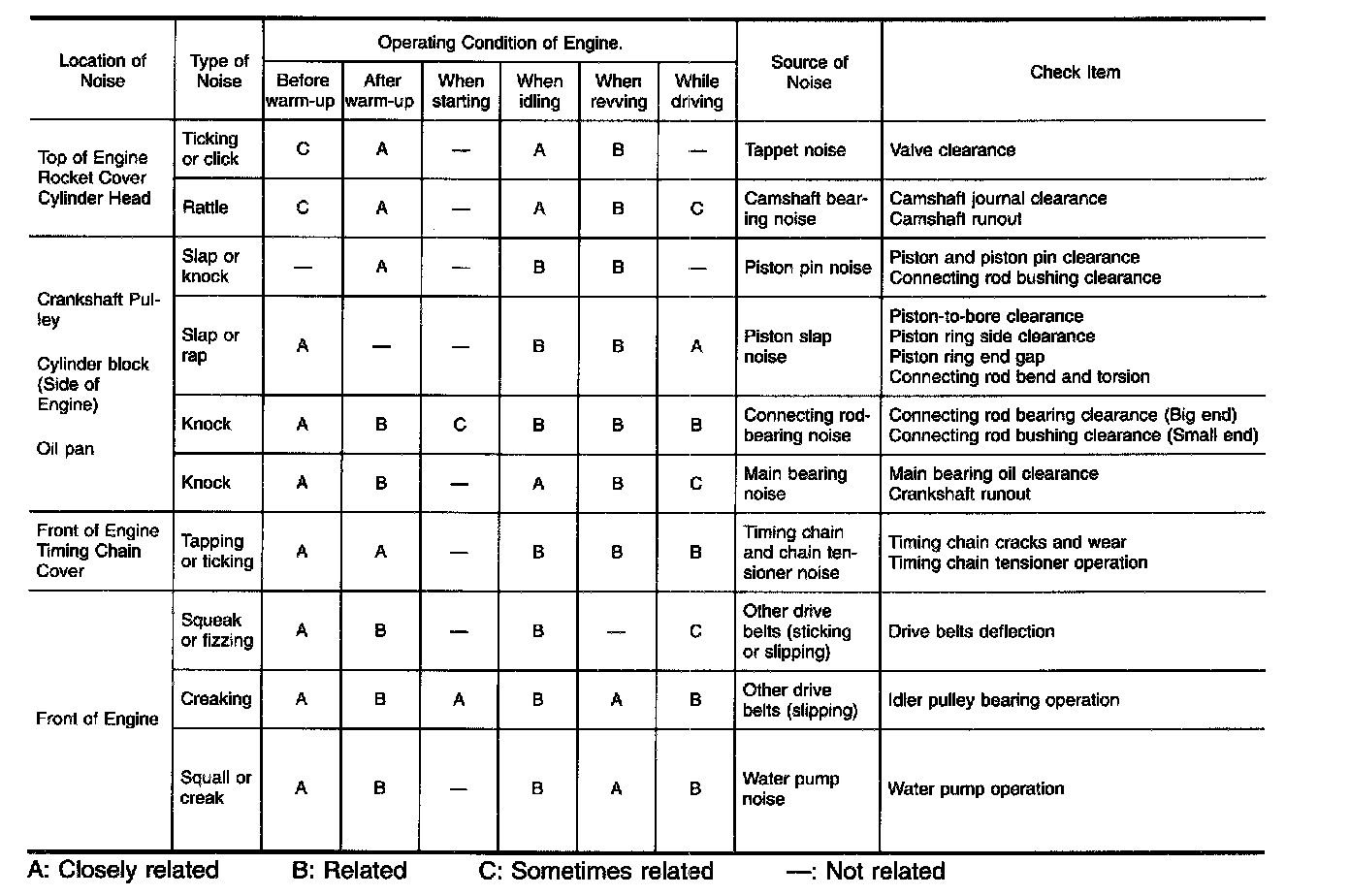

NOISE VIBRATION AND HARSHNESS (NVH) Troubleshooting Chart - Engine Noise








Use the chart to help you find the cause of the symptom.
1. Locate the area where noise occurs.
2. Confirm the type of noise.
3. Specify the operating condition of engine.
4. Check specified noise source.
If necessary, repair or replace these parts.
