Outer Component Parts

Outer Component Parts

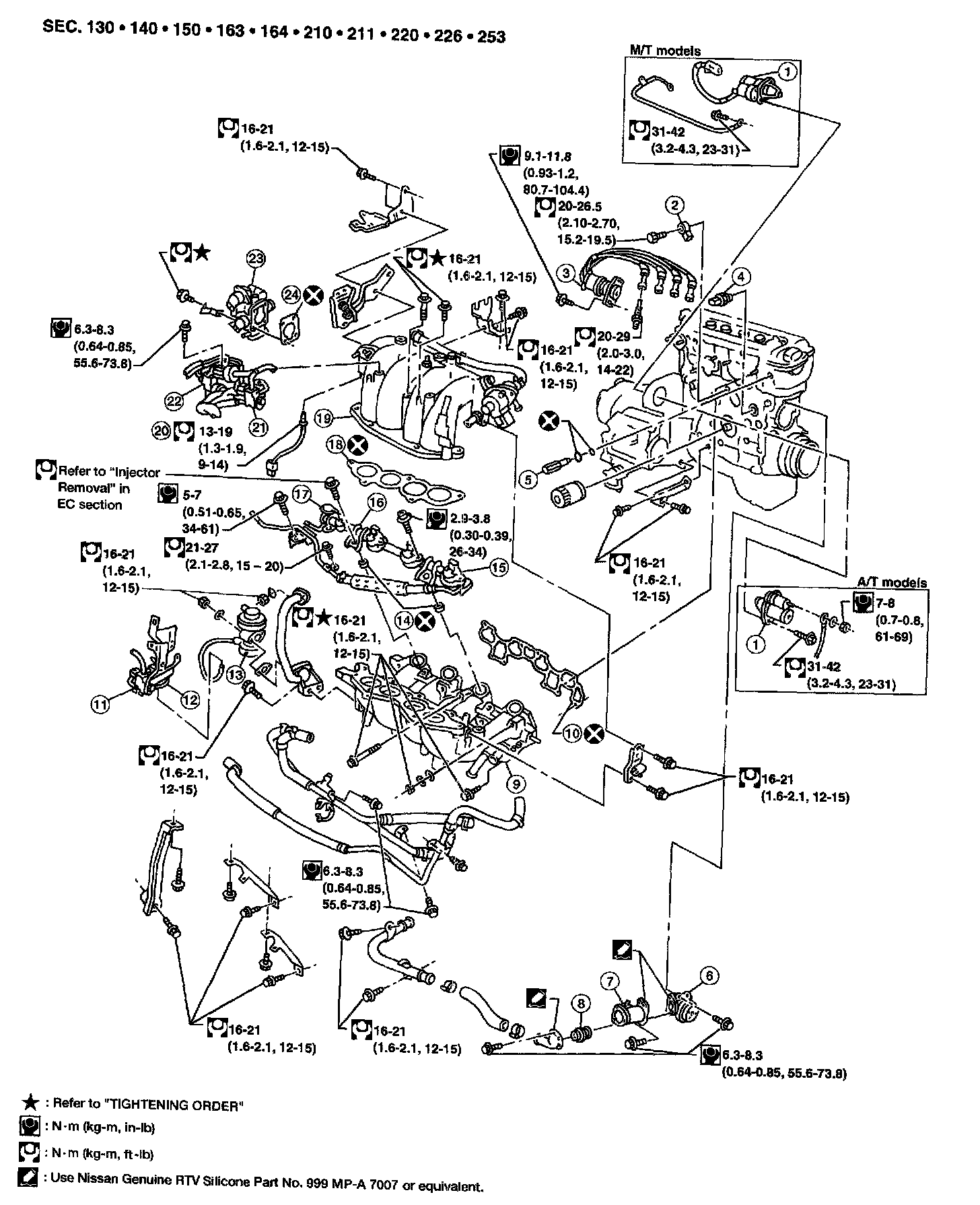

Part 1 of 2

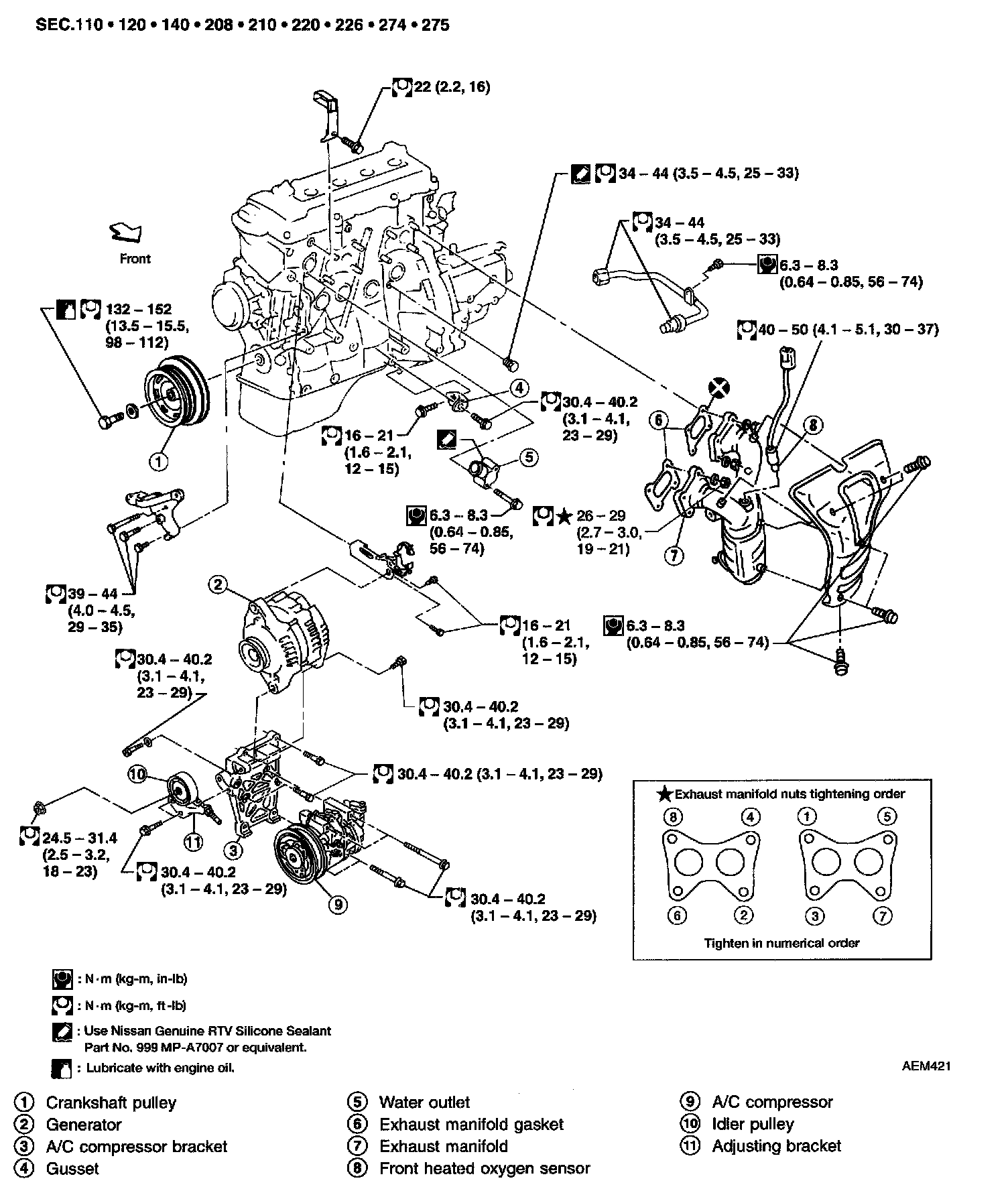

Part 2 of 2

Exhaust Manifold

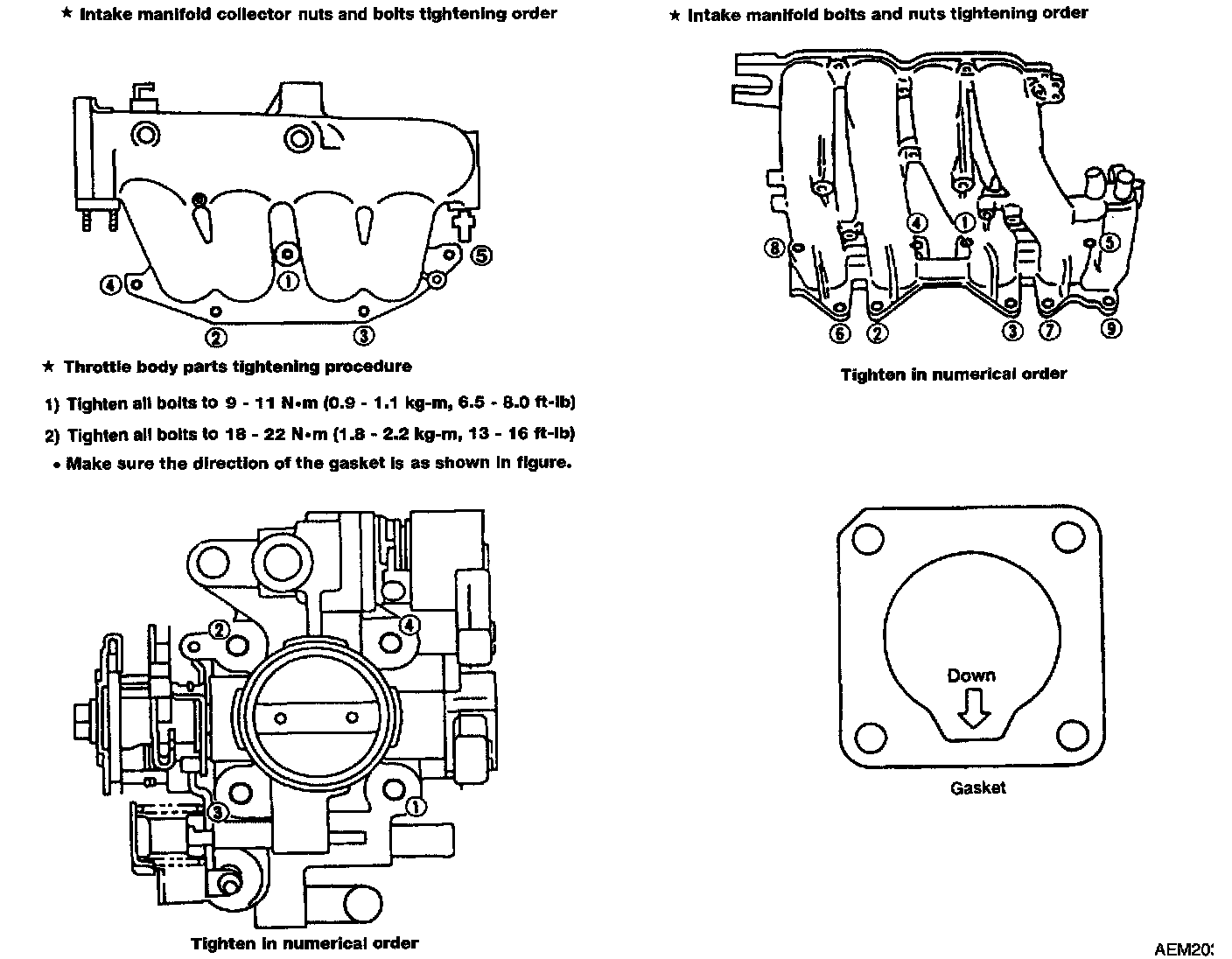

Intake Manifold
