Home >> Nissan-Datsun >> 1999 >> Sentra XE L4-1597cc 1.6L DOHC MFI (GA16DE) >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Compressor HVAC

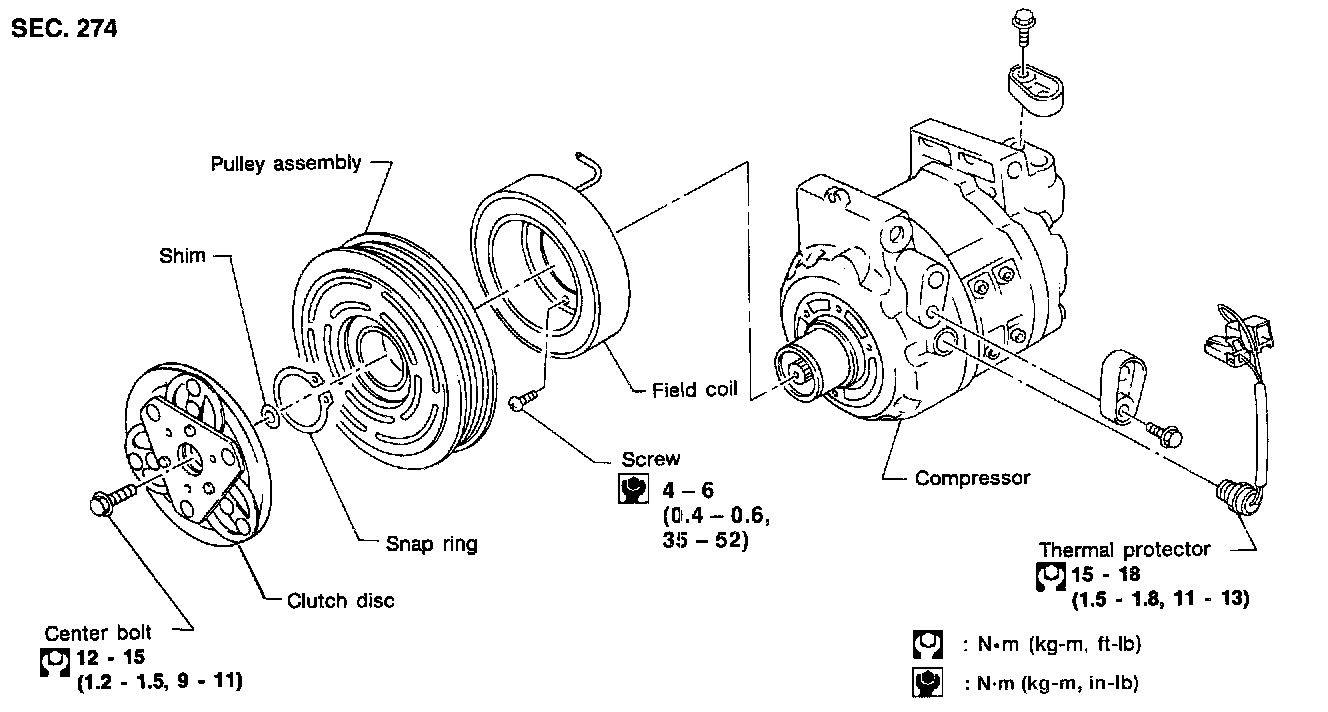

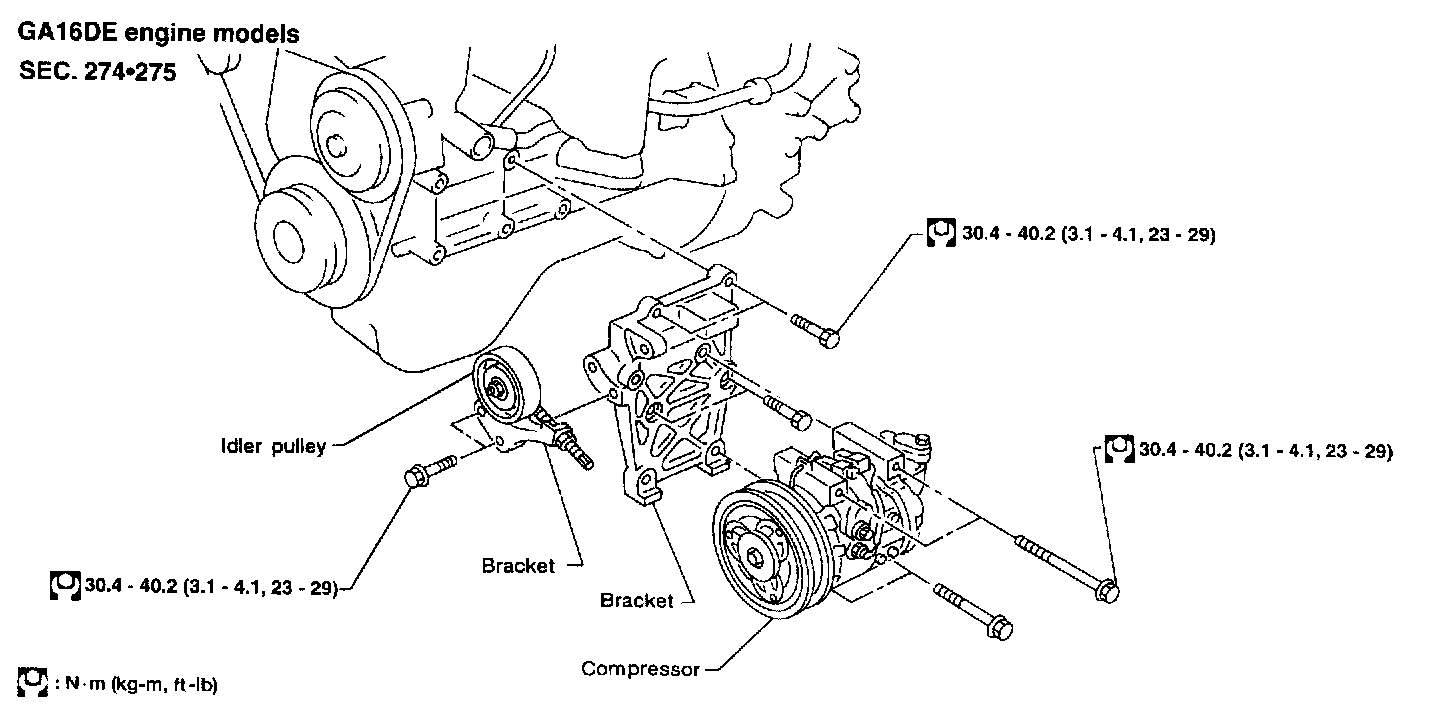

Compressor HVAC




PART 1 OF 2




PART 2 OF 2
