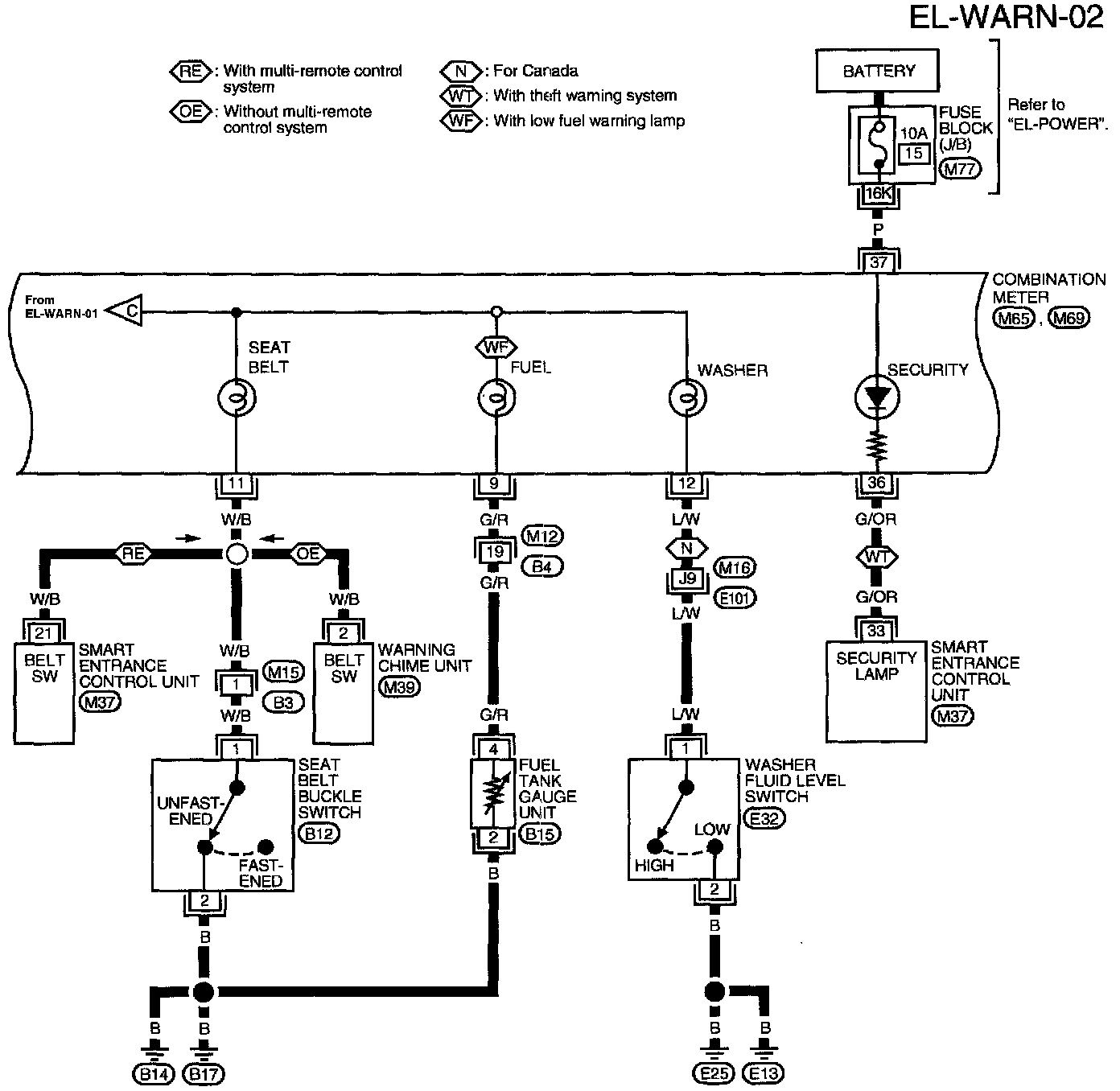

EL-WARN-02

With Tachometer





EL-WARN-02





Warning Lamps Circuit Connectors





E101, M16 Engine Harness and Main Room Harness Terminal Arrangement





M37 Control Units Terminal Arrangements
