Home >> Nissan-Datsun >> 1999 >> Sentra XE L4-1597cc 1.6L DOHC MFI (GA16DE) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Automatic Transmission/Transaxle >> Shift Interlock, A/T

Shift Interlock, A/T

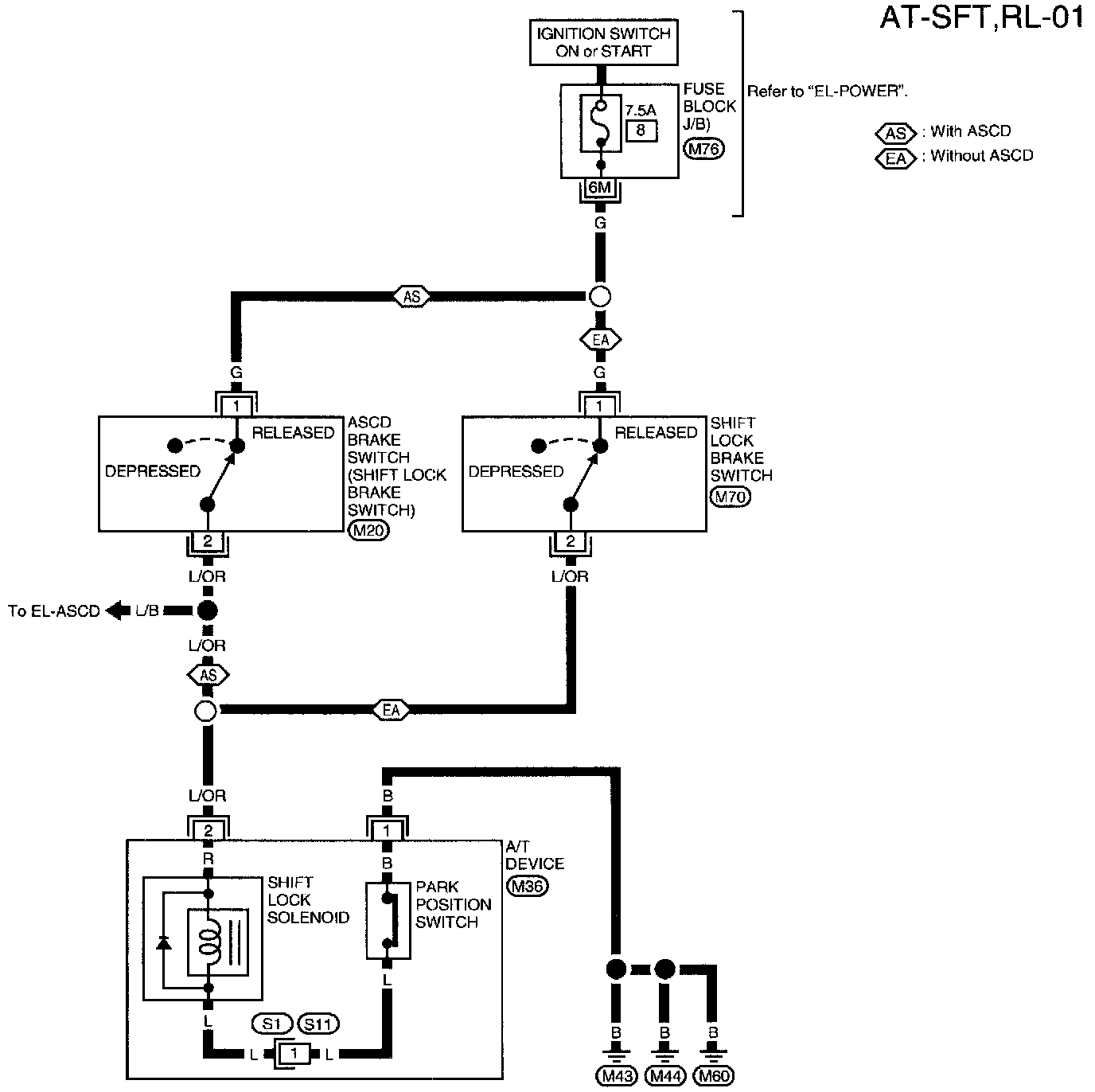

AT-SFT, RL-01





A/T Shift Lock System Circuit Connectors
