Sentra XE L4-1597cc 1.6L DOHC MFI (GA16DE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>

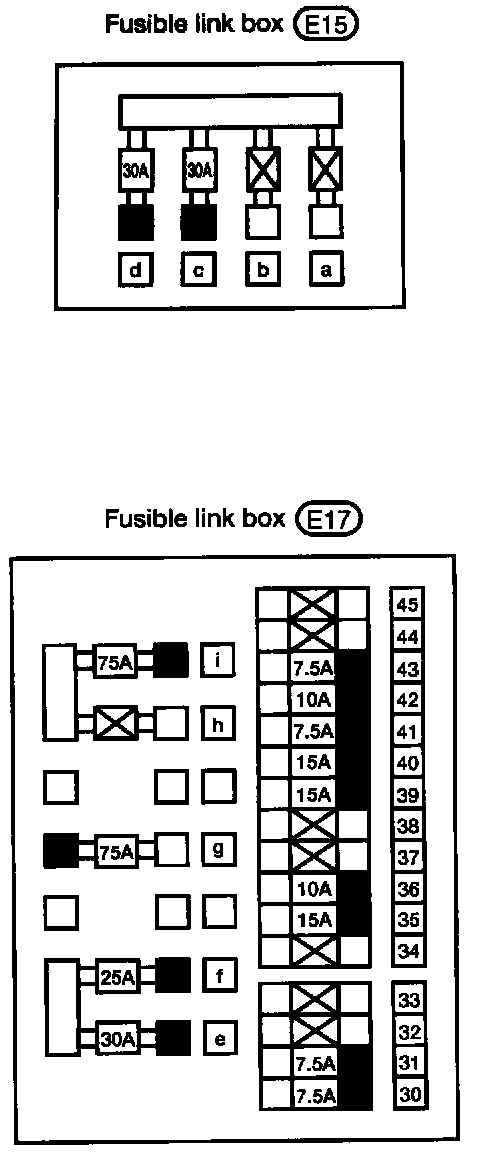

Fuse and Fusible Link Box
Fuse and Fusible Link Box
E15, E17
Fusible Link
Box Terminal Arrangement
