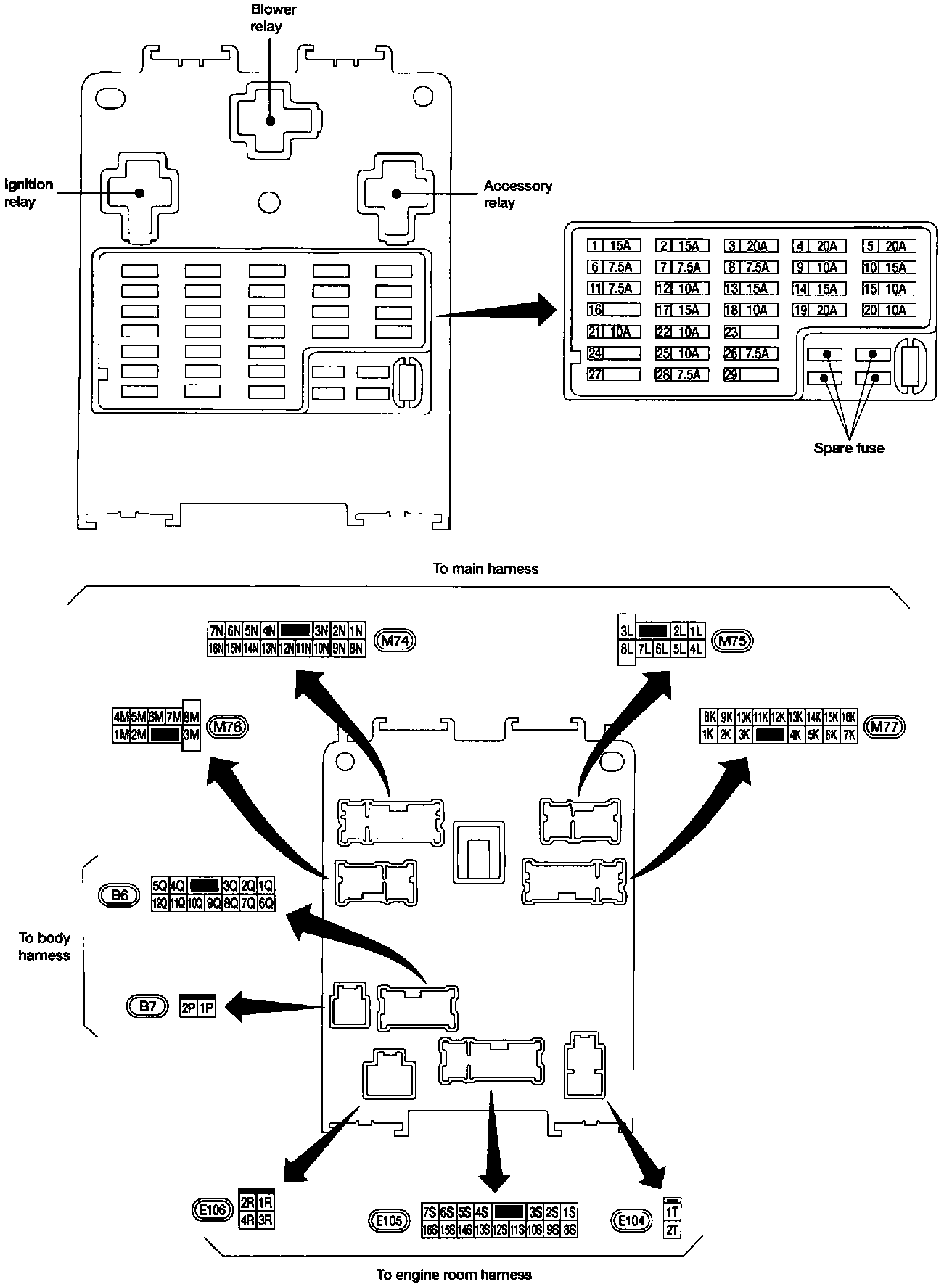

Fuse Block Junction Box (J/B)





B6, B7, E104, E105, E106, M74, M75, M76, M77 Terminal Arrangement
