LEMON Manuals: Even more car manuals for everyone

Home >> Nissan-Datsun >> 1999 >> Sentra XE L4-1597cc 1.6L DOHC MFI (GA16DE) >> Repair and Diagnosis >> Diagrams >> Components >> Modules >> Engine Control Module (ECM)

Engine Control Module (ECM)

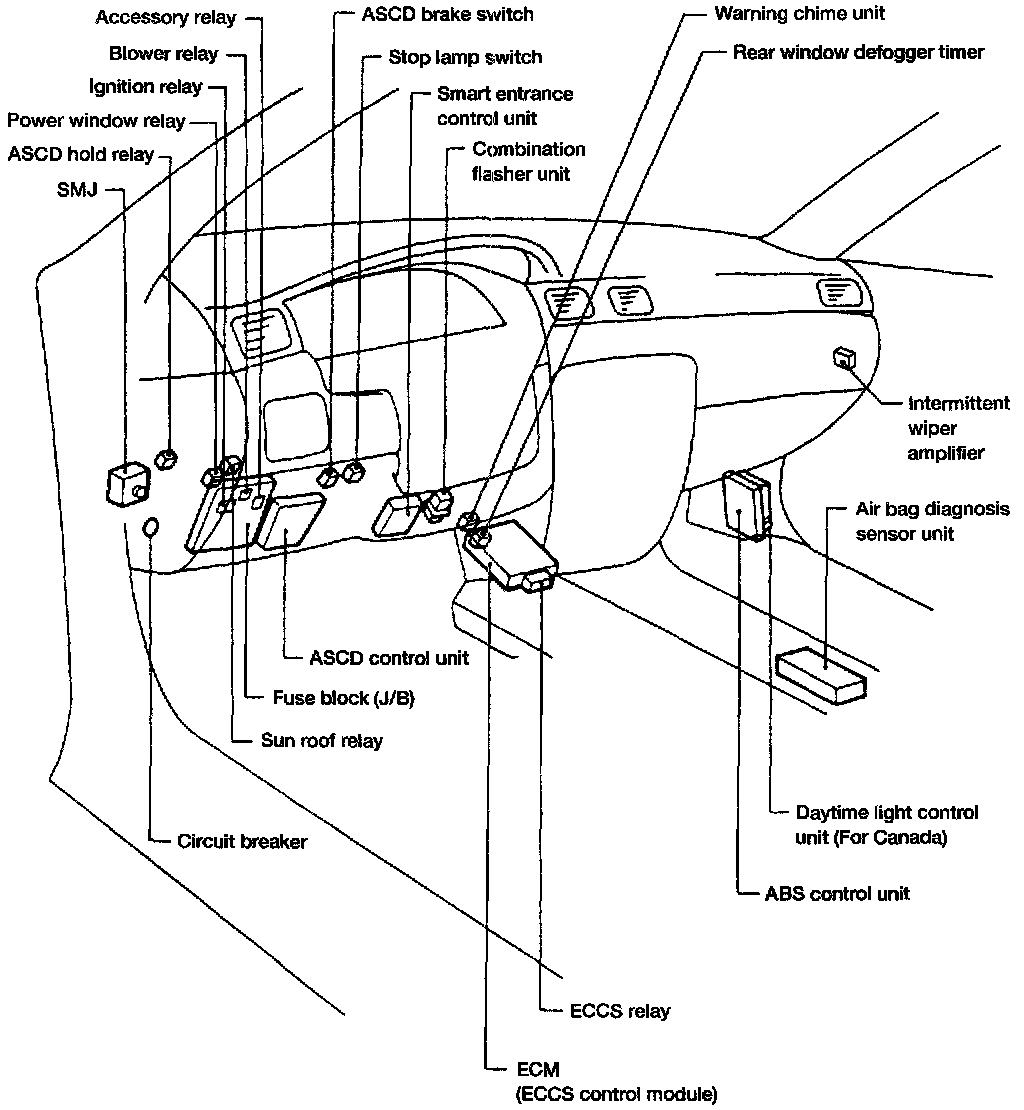

Engine Control Component Parts Location

Passenger Compartment
