Nissan-Datsun
>>
1999
>>
Sentra XE L4-1597cc 1.6L DOHC MFI (GA16DE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Components
>>
Modules
>>
ABS Control Unit
ABS Control Unit

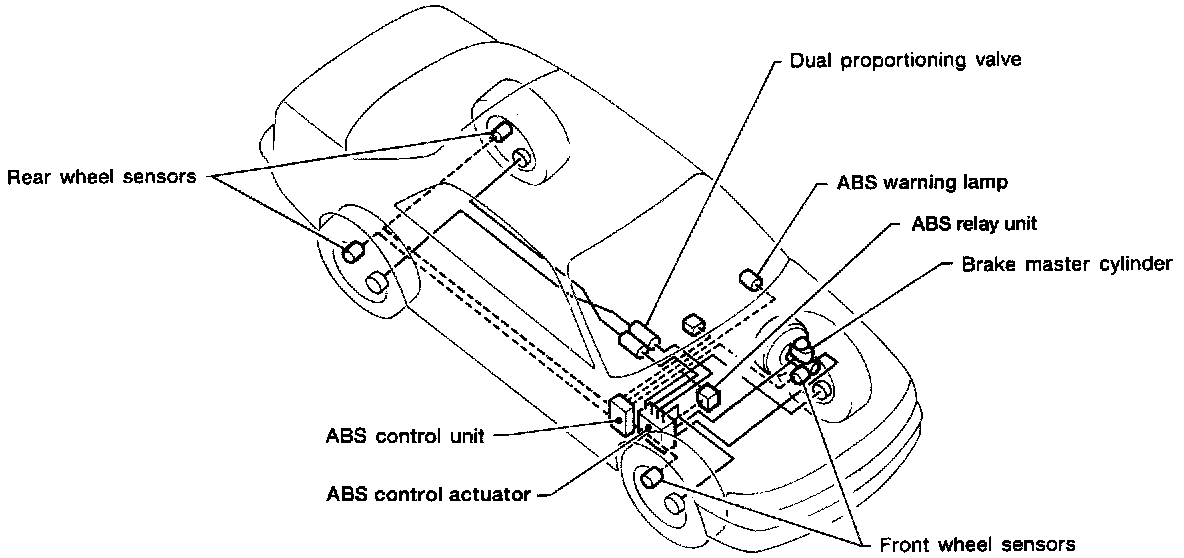

Anti-Lock Brake System components

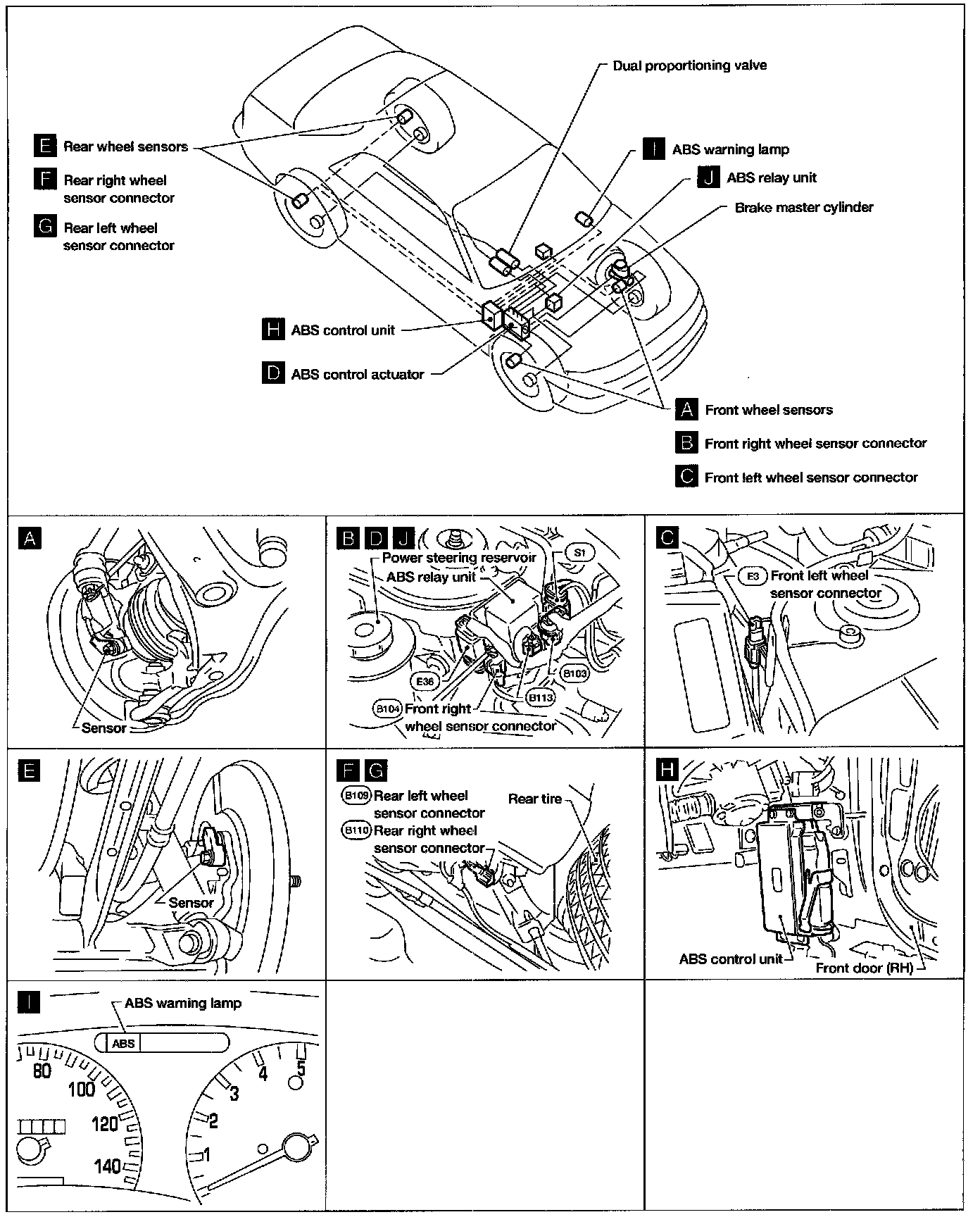

Component Parts and Harness Connector Location
Passenger Compartment
