Parking Brake System: Service and Repair

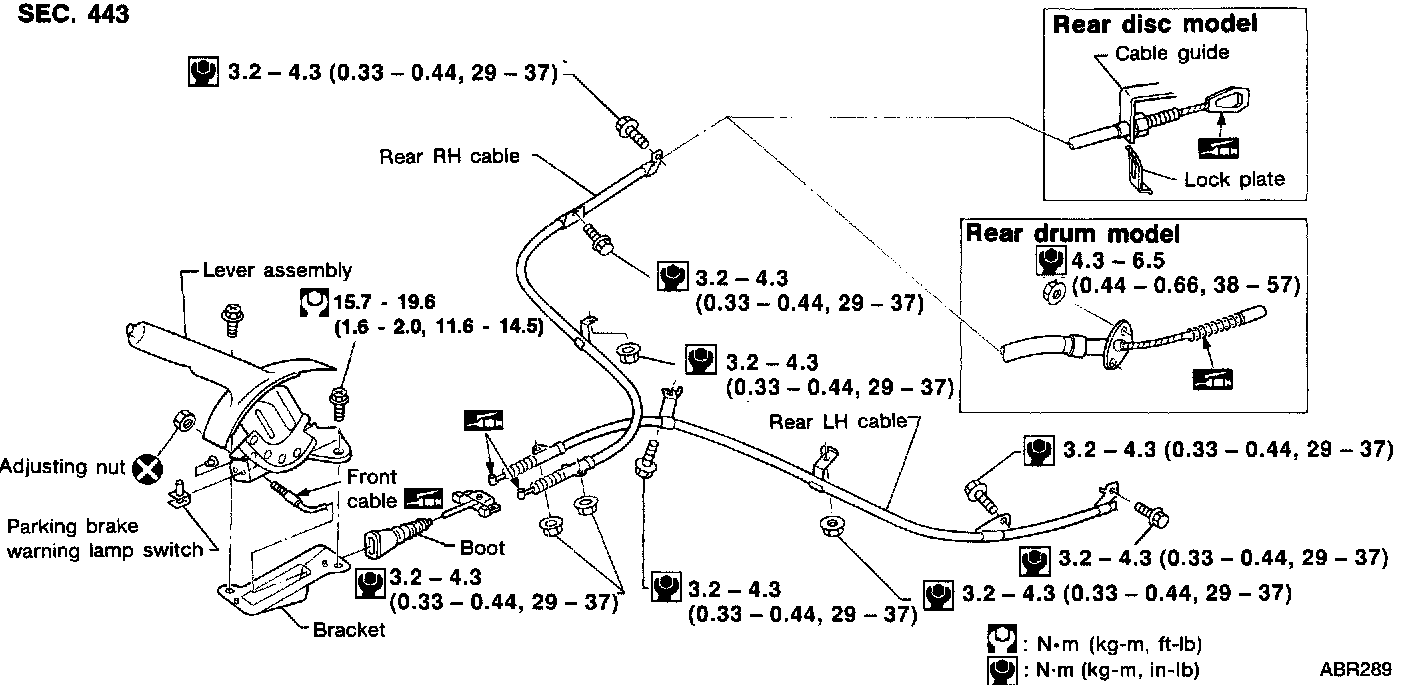

REMOVAL AND INSTALLATION





1. To remove parking brake cable, first remove center console.
2. Disconnect warning lamp connector.
3. Remove bolts, slacken front cable and remove adjusting nut.





4. Remove lock plate and disconnect cable (disc brake only).
