Scan Tool Testing and Procedures

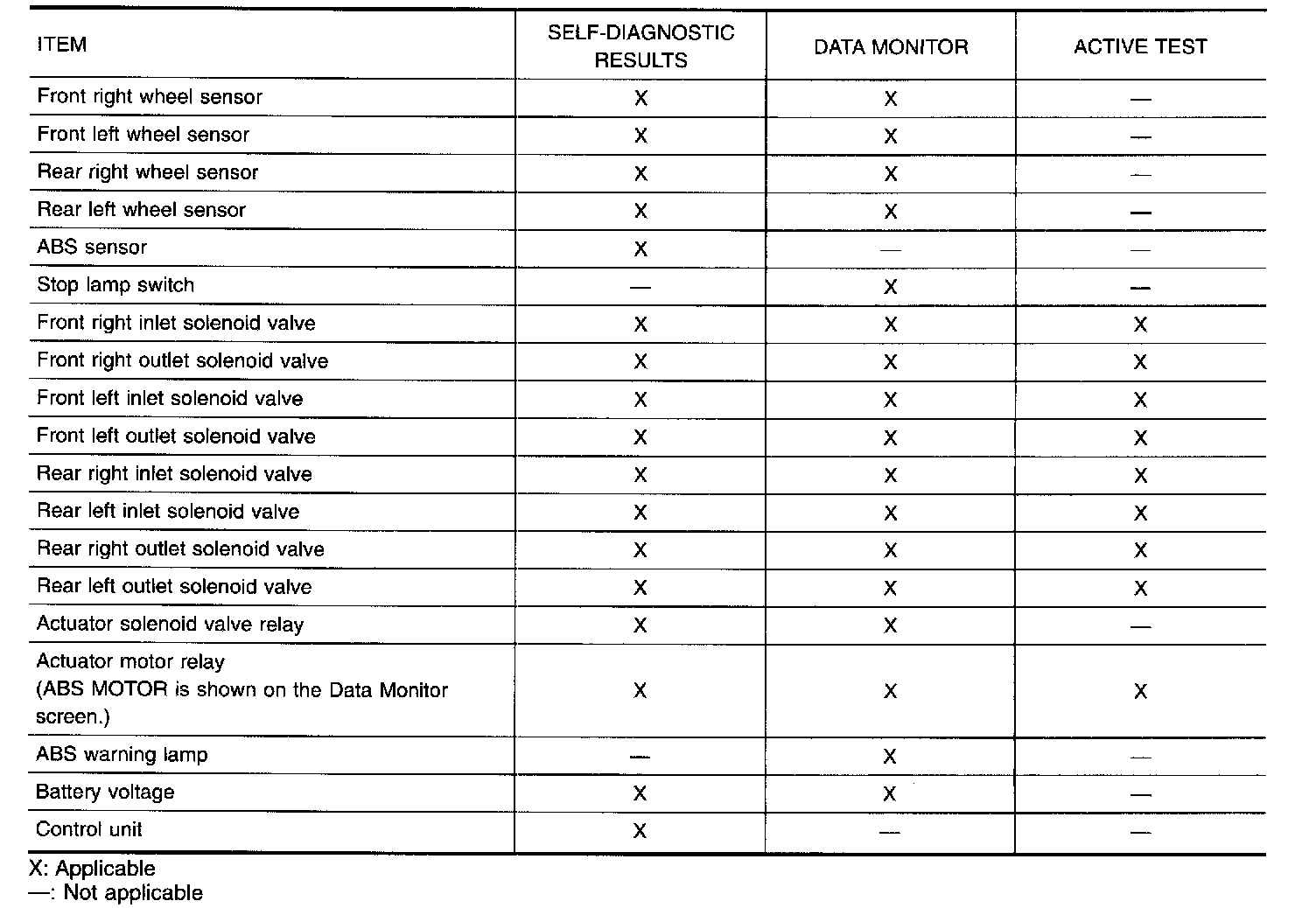

CONSULT APPLICATION TO ABS

ECU PART NUMBER MODE
Ignore the ECU part number displayed in the ECU PART NUMBER MODE.

CONSULT INSPECTION PROCEDURE

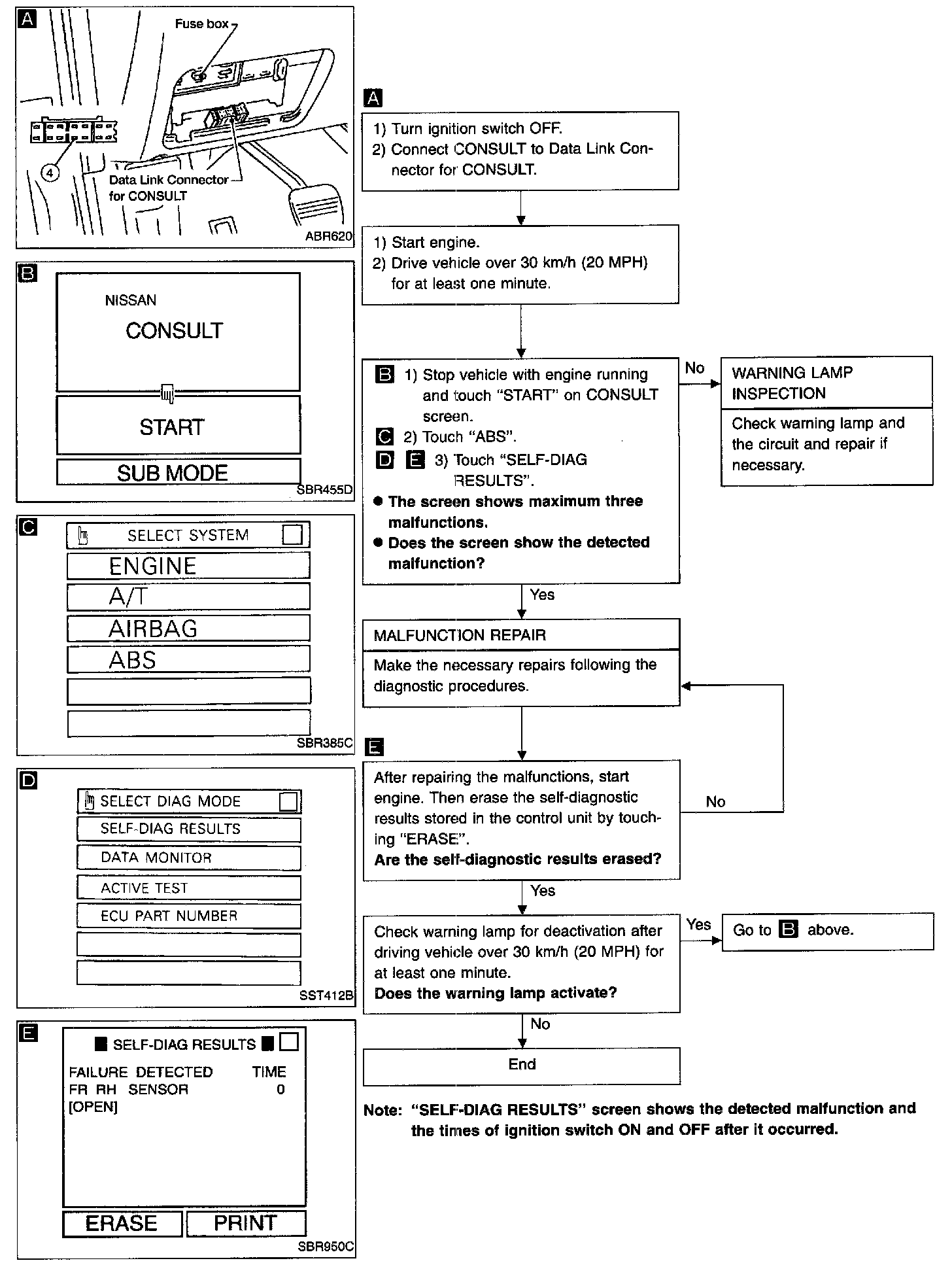

Self-Diagnosis Procedure

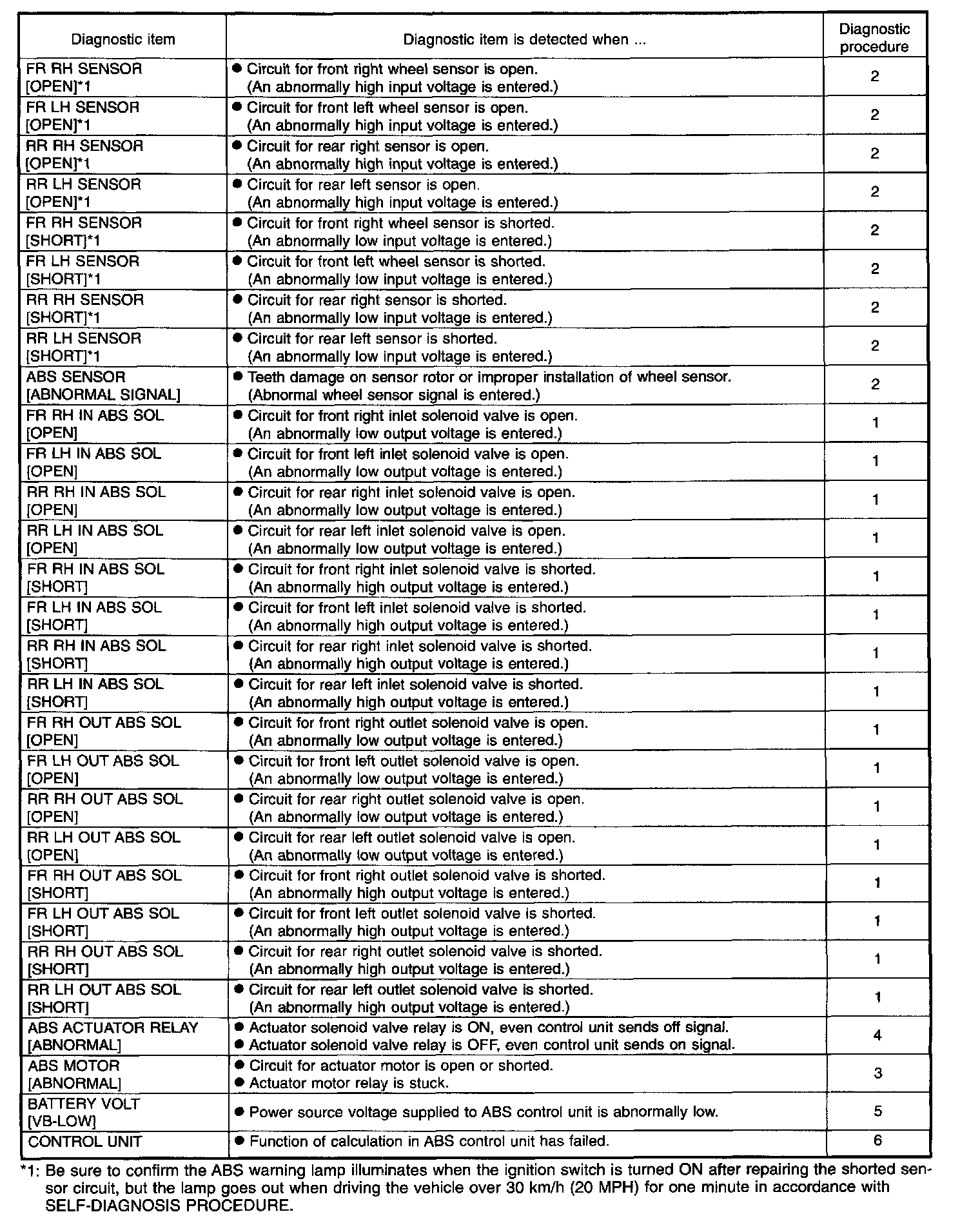

Self-Diagnostic Results Mode

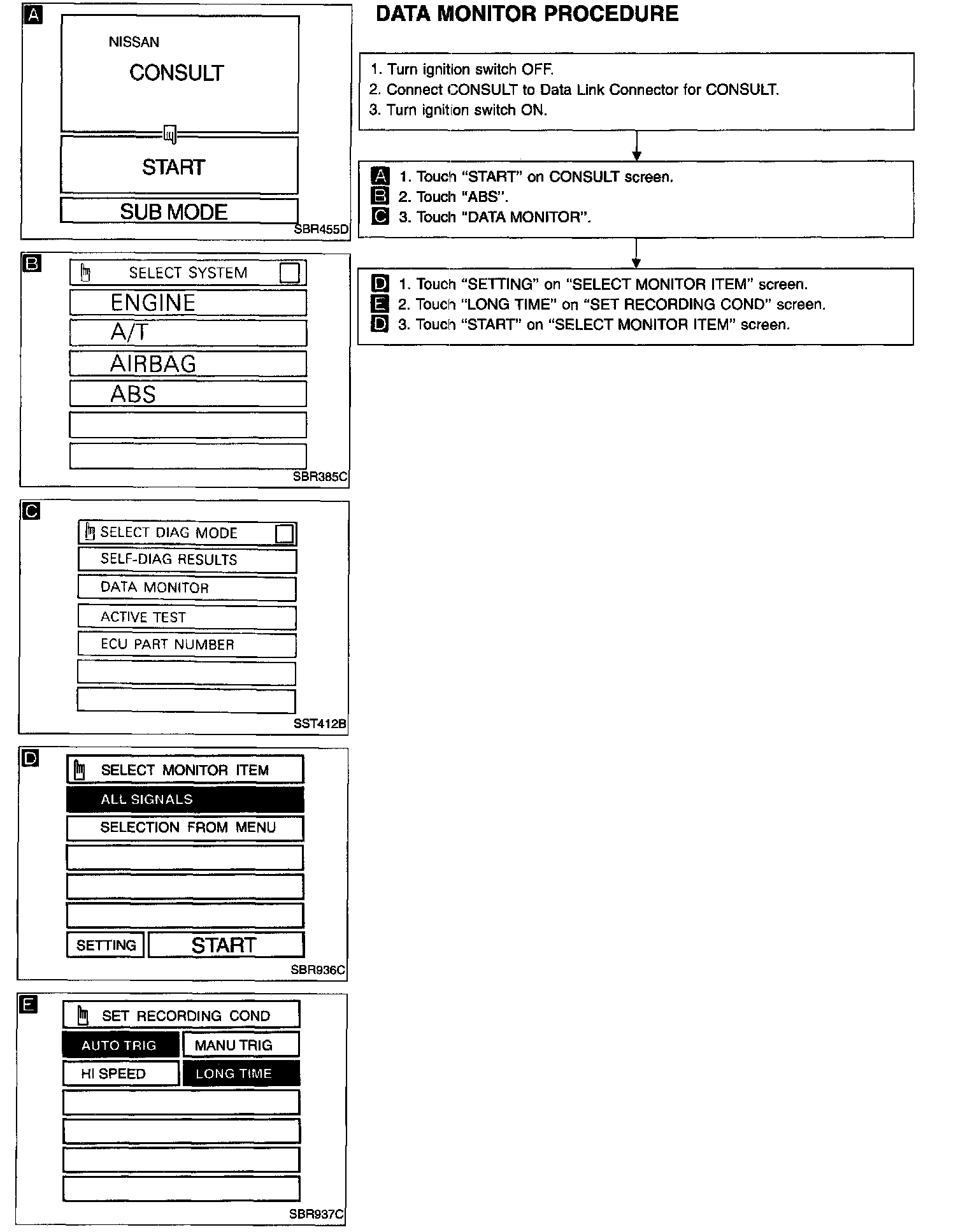

Data Monitor Procedure

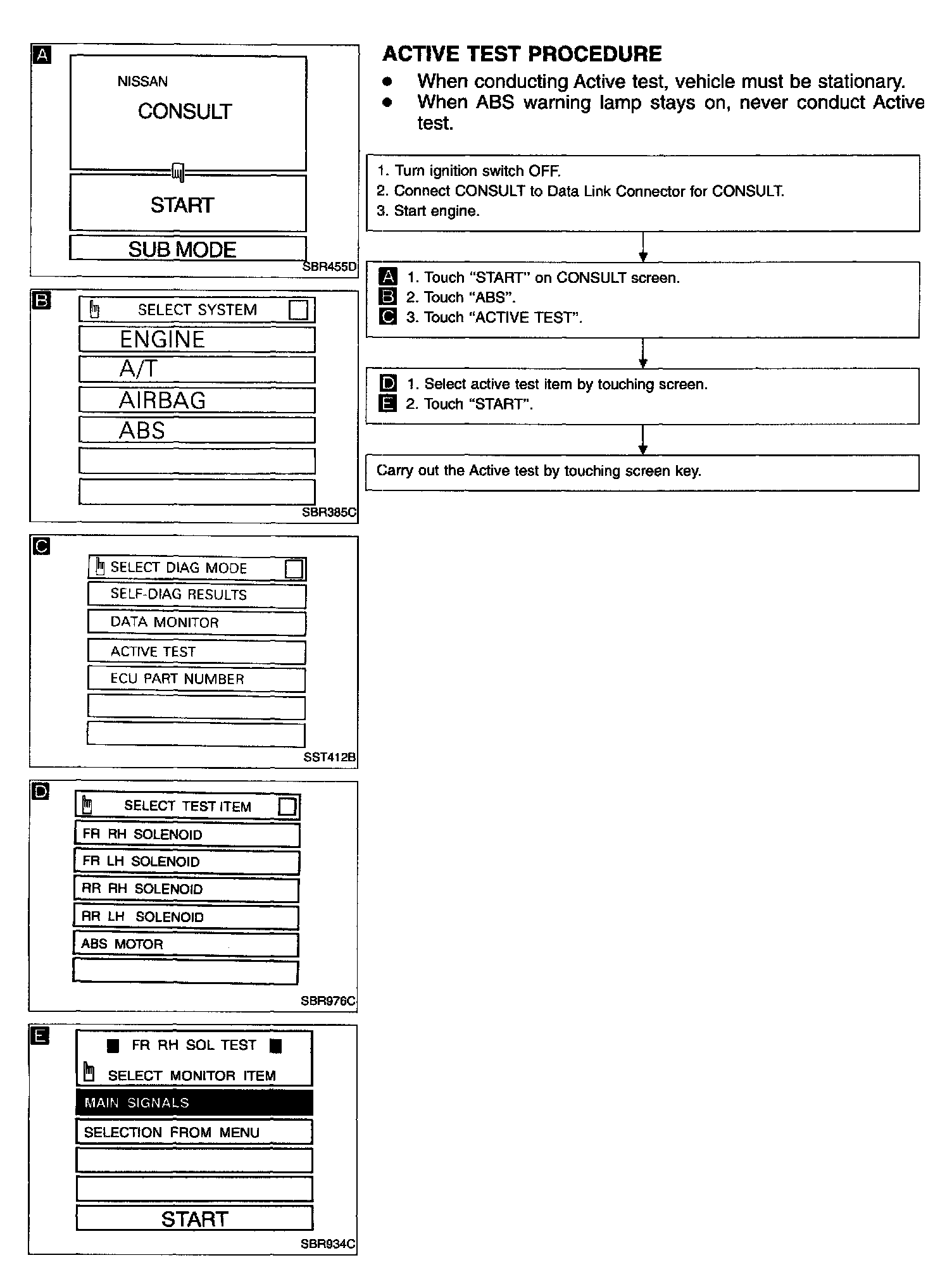

Active Test Procedure
When conducting Active test, vehicle must be stationary.
- When ABS warning lamp stays on, never conduct Active test.

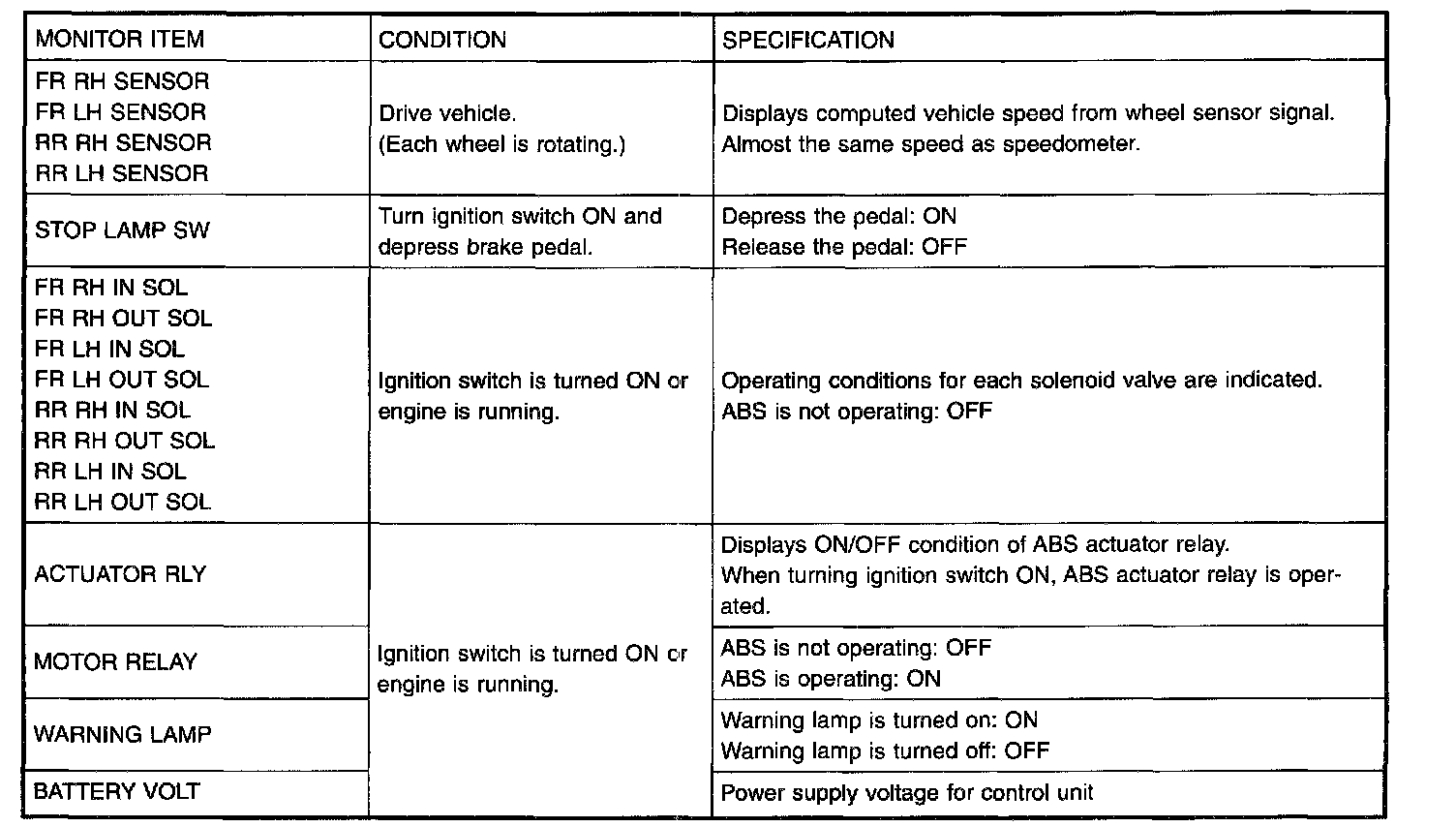

Data Monitor Mode





Active Test Mode
