Keyless Entry: Testing and Inspection

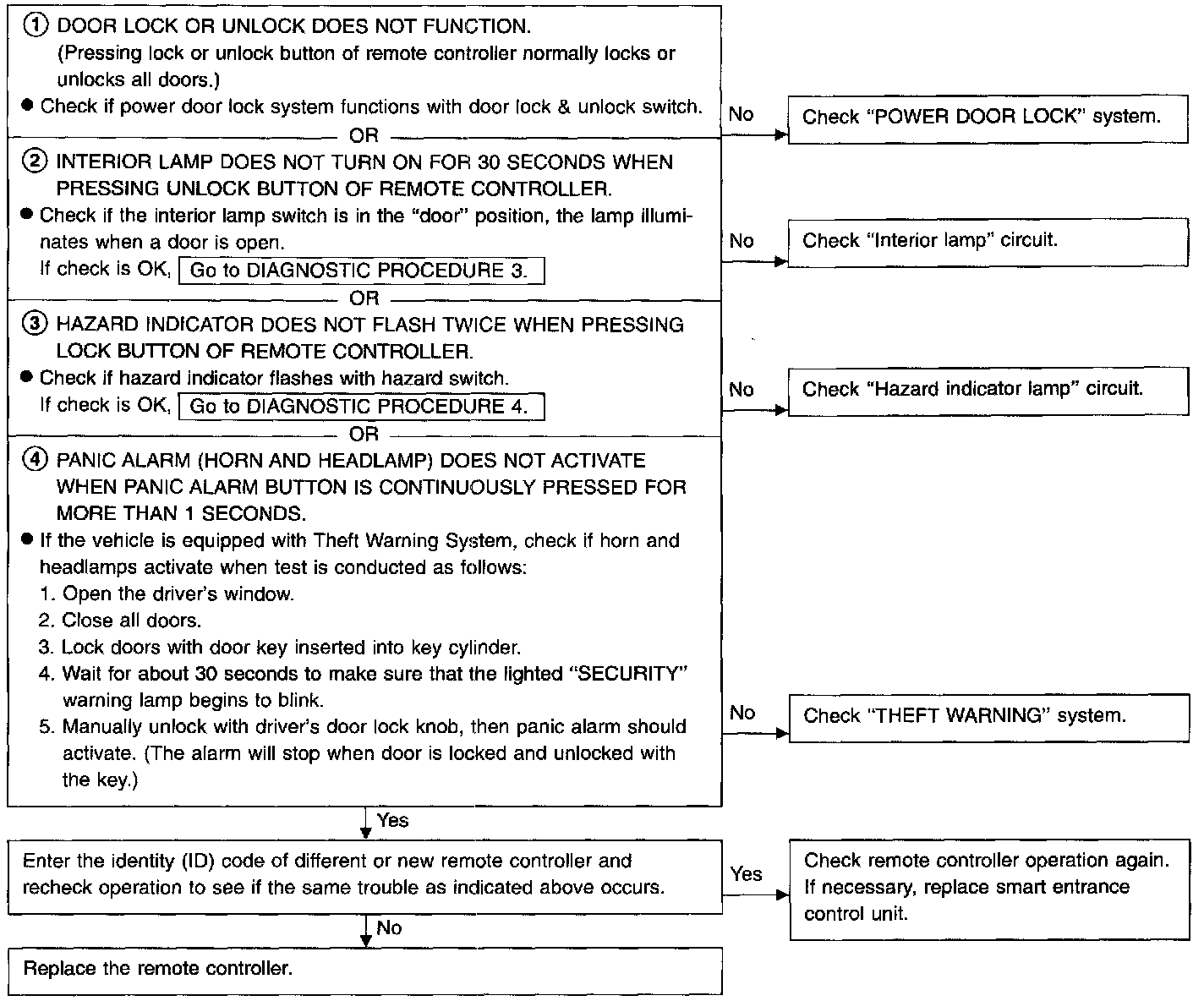

Trouble Symptom





^ All functions of remote control system do not operate





^ Some functions of multi-remote controller do not operate.


NOTE:
^ The unlock and panic alarm operation of the multi-remote control system does not activate with the ignition key inserted in the ignition key cylinder.
^ The lock operation of the multi-remote control system does not activate with the key inserted in the ignition key cylinder and one or more of the front doors are open.





Diagnostic Procedure 1

Check remote controller battery.


NOTE: Remote controller does not function if battery is not set correctly.

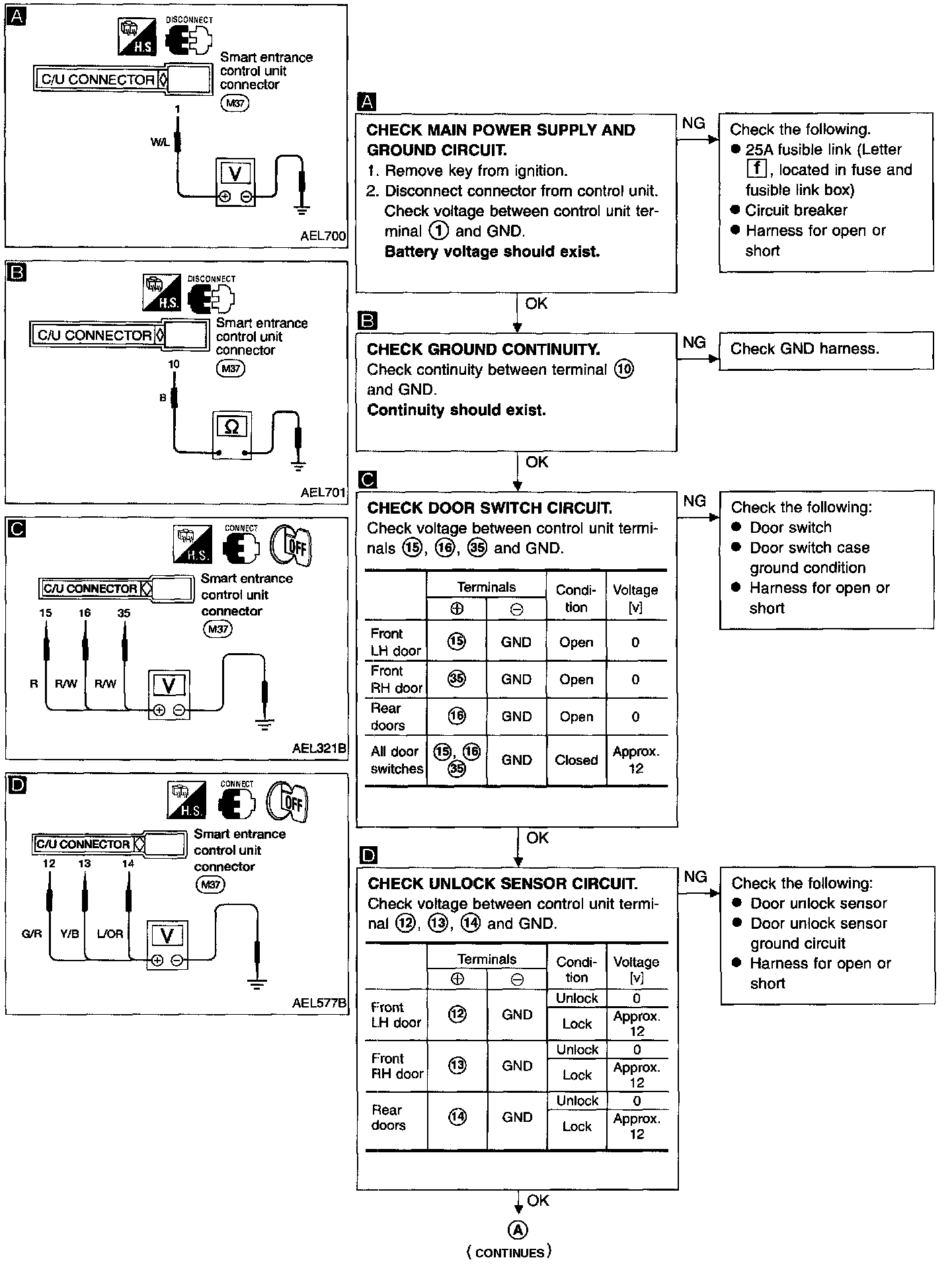

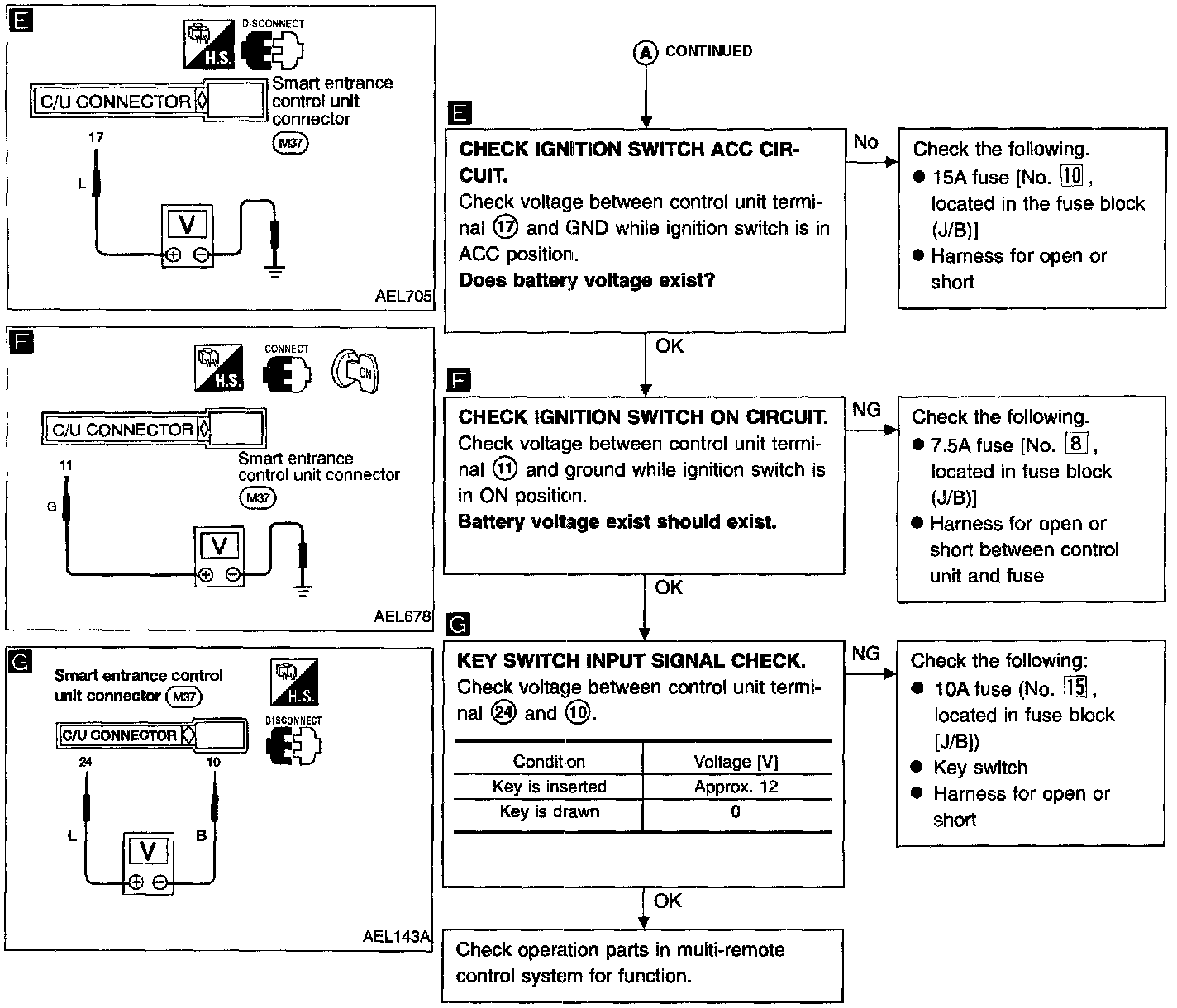

Diagnostic Procedure 2

All remote controls do not function even if remote controller is operated properly.

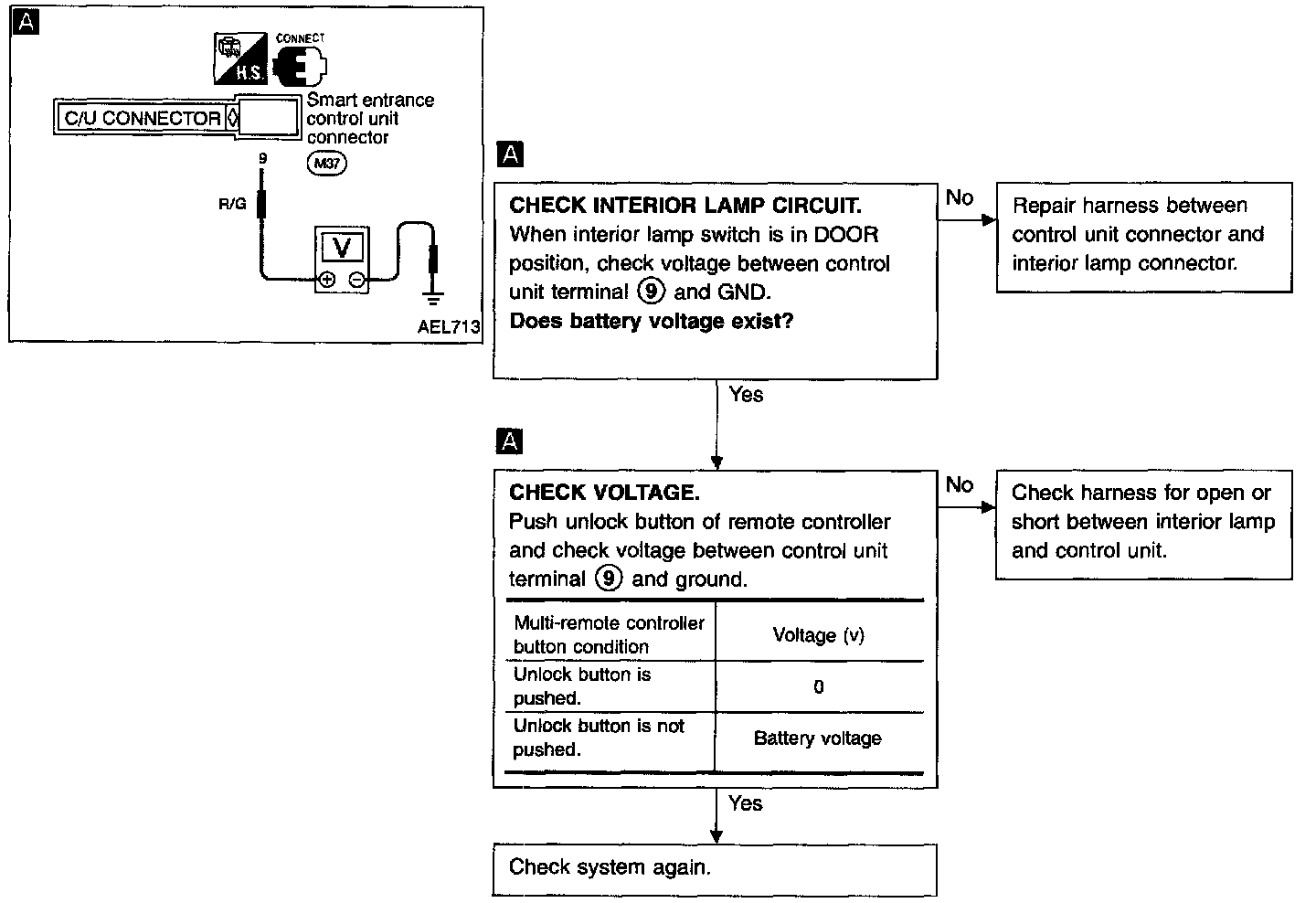

Diagnostic Procedure 3

Interior lamp does not turn on for 30 seconds when pressing unlock button of remote controller. Everything else functions.

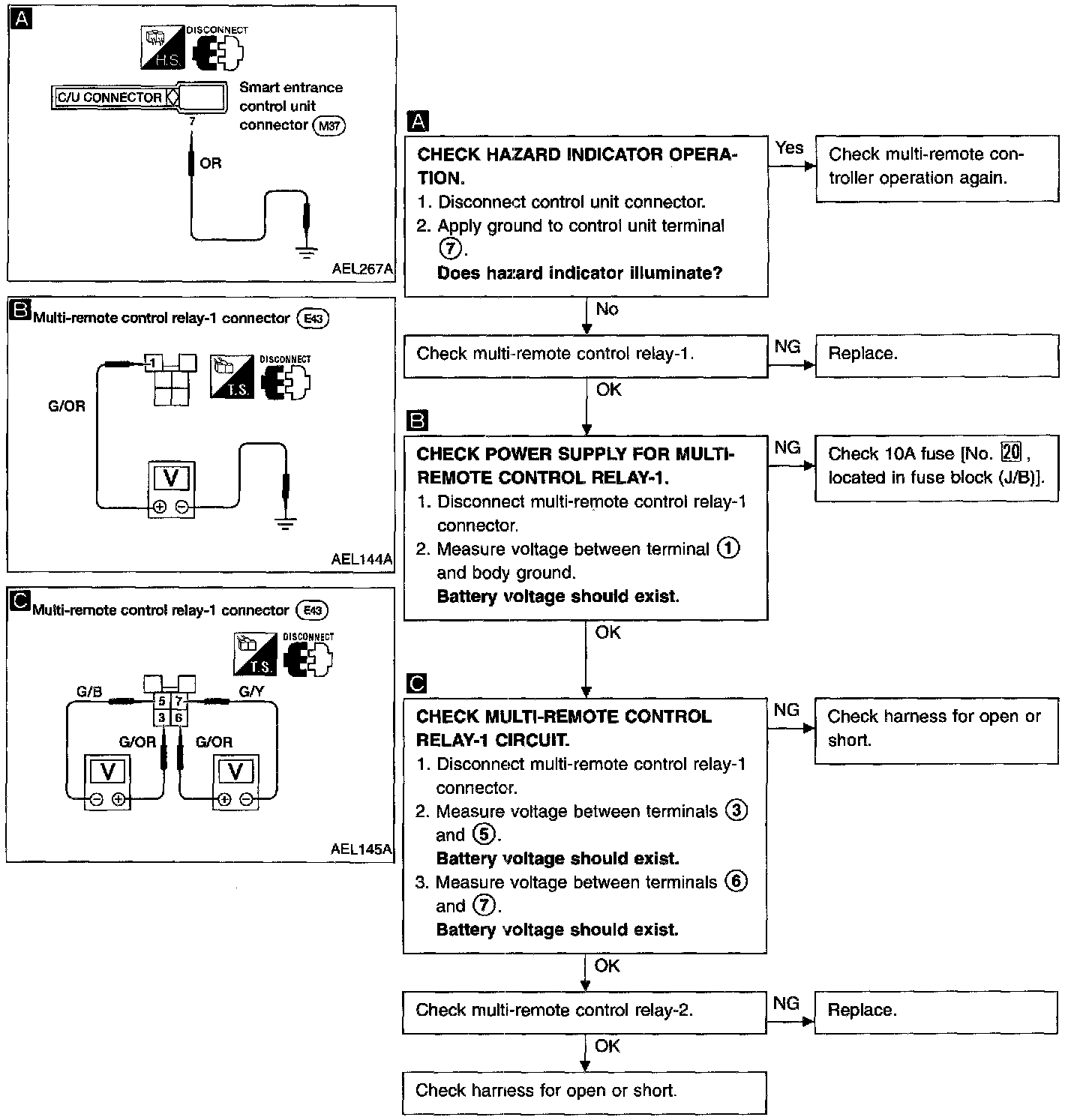

Diagnostic Procedure 4

Hazard indicator does not flash twice when pressing lock button of remote controller. Everything else functions.
