Clutch Release Bearing: Service and Repair

REMOVAL AND INSTALLATION





^ Remove release bearing by pulling bearing retainers outward.

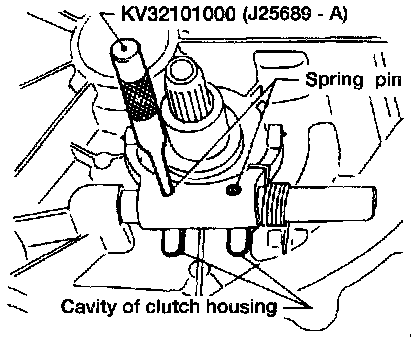

^ Align spring pin with cavity of clutch housing and tap out spring pin.
^ To install, reverse removal procedure.

INSPECTION





Check the following items, and replace if necessary.
^ Release bearing, to see that it rolls freely and is free from noise, cracks, pitting or wear
^ Release sleeve and withdrawal lever rubbing surface, for wear, rust or damage

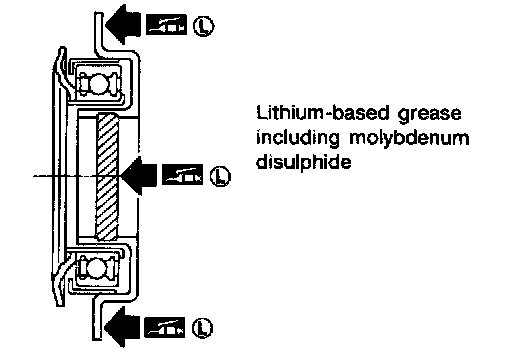

LUBRICATION
^ Apply recommended grease to contact surface and rubbing surface.
^ Too much lubricant may damage clutch disc facing.
