Main Power Supply and Ground Circuit

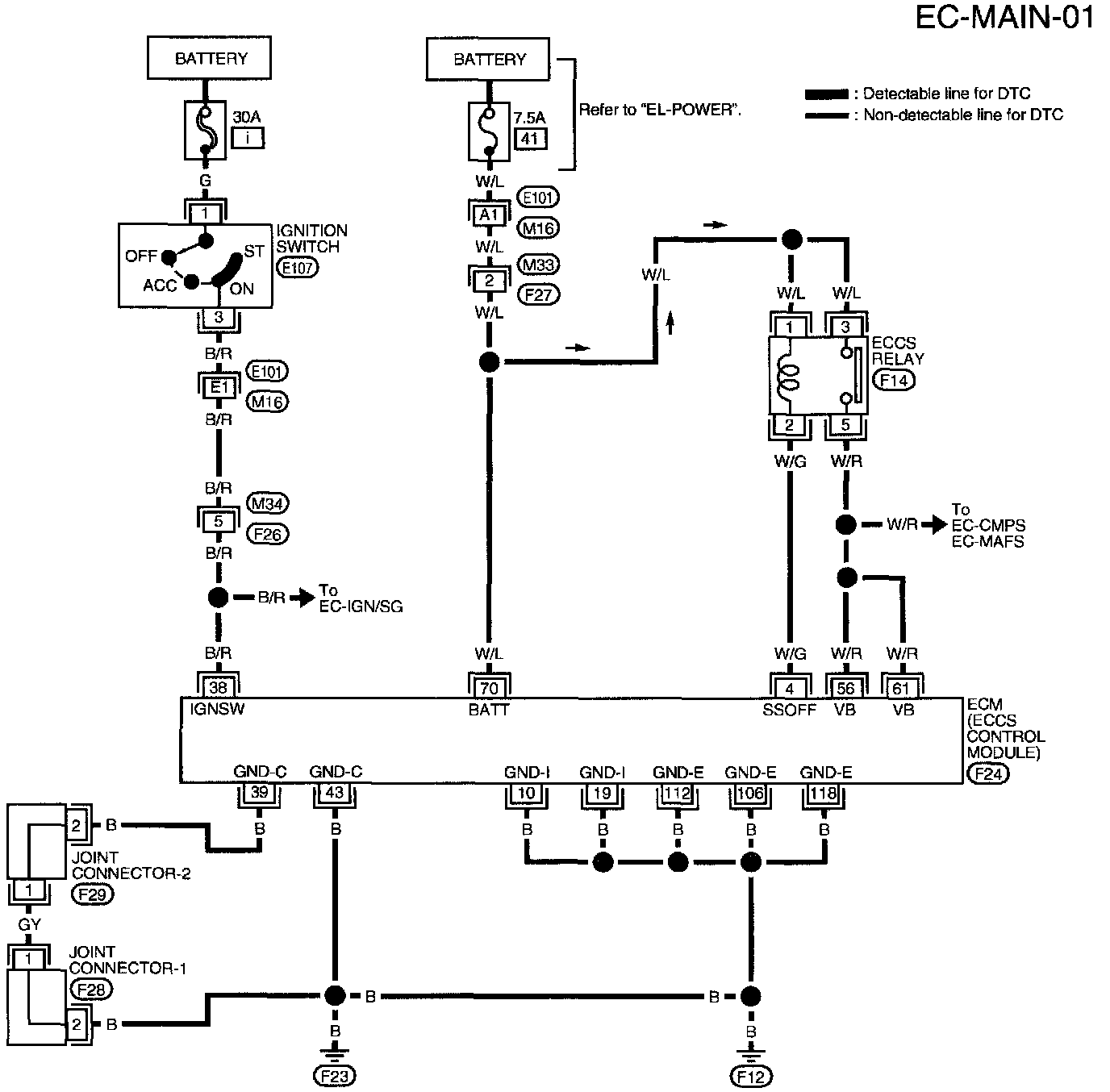

Circuit Diagram





Circuit Connectors





E101, M16 Engine Harness and Main Room Harness Terminal Arrangement





F28, F29 Joint Connector Terminal Arrangement
