Front Seat Belt

CAUTION:
- Do not disassemble buckle or seat belt assembly.
- Replace anchor bolts if they are deformed or worn out.
- Never oil tongue and buckle.
- If any component of seat belt assembly is questionable, do not repair. Replace the seat belt assembly.
- If webbing is cut, frayed, or damaged, replace seat belt assembly.
- When replacing seat belt assembly, use a genuine NISSAN seat belt assembly.
- After any collision, inspect all seat belt assemblies, including retractors and other attached hardware.

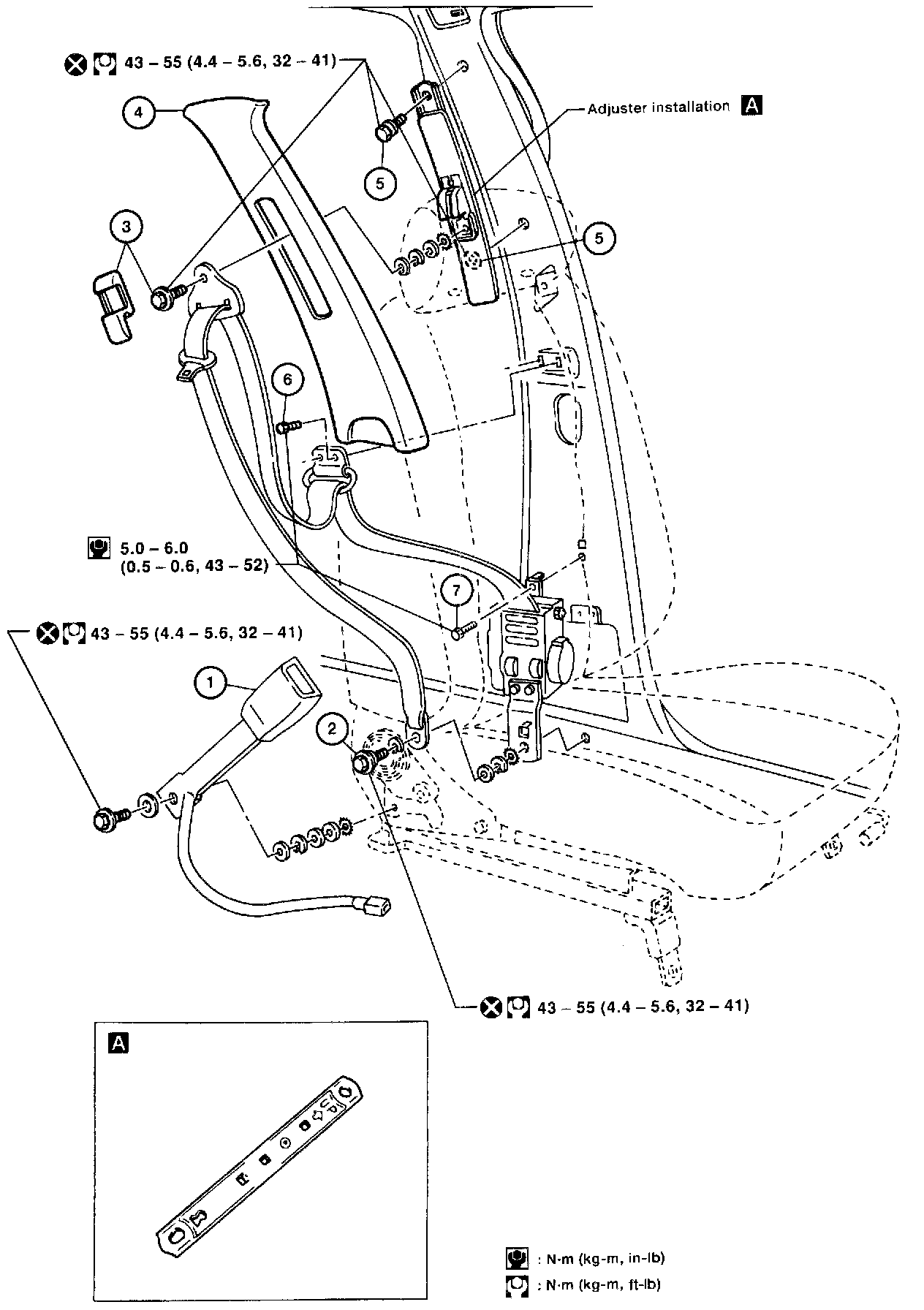

REMOVAL AND INSTALLATION
Remove front seat.
1. Remove buckle.
Remove front and rear kick plates.

2. Remove floor anchor bolt.
Remove center pillar lower garnish.

3. Remove adjuster cover and pillar anchor bolt.
4. Remove center pillar upper garnish.
5. Remove two adjuster bolts and adjuster assembly "A"
6. Remove two guide plate bolts.
7. Remove retractor bolt.
Remove retractor.

8. For Installation, reverse the Removal steps.
