Seat Belt Retractor Off-Vehicle Check

1. Remove the seat belt retractor assembly.

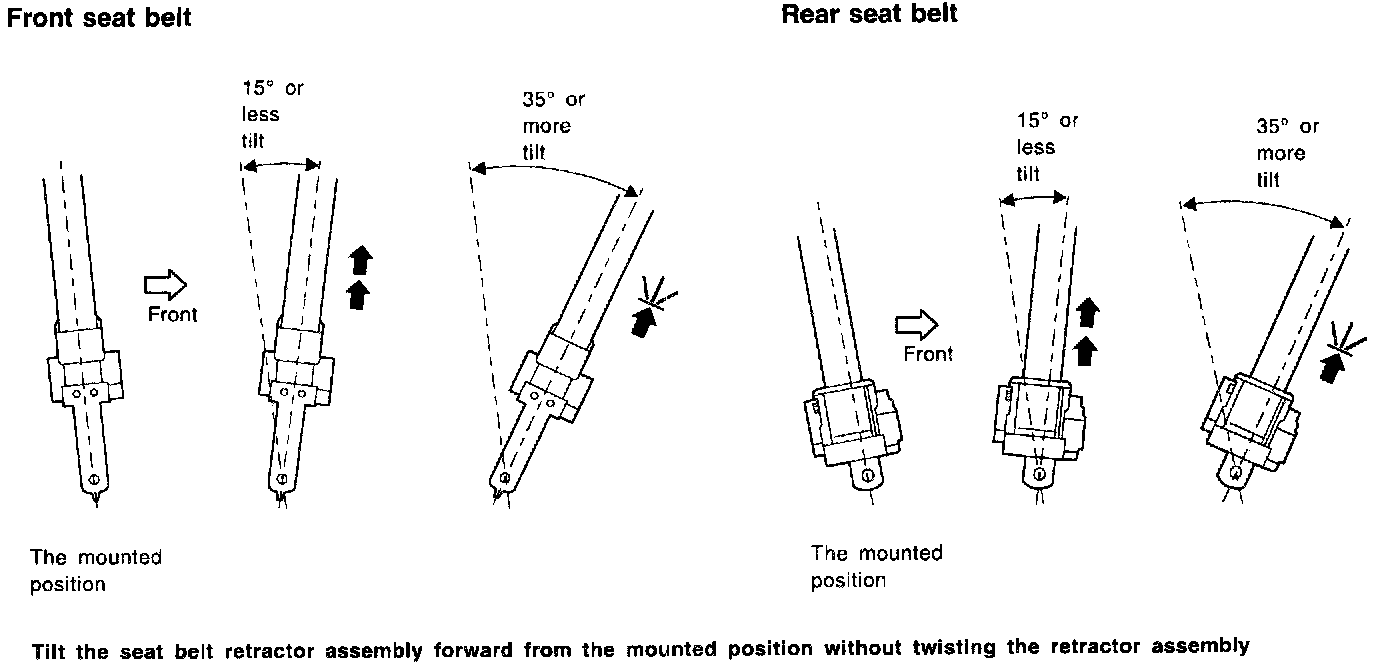

2. Slowly pull out belt while tilting the retractor assembly forward from the mounted position as shown in the illustration.

15 degrees or less tilt: Belt can be pulled out.
35 degrees or more tilt: Belt locks and cannot be pulled out.

EX. (The mounted position and angle differ among models.)

If NG replace the retractor assembly.
