Turn Signals: Testing and Inspection

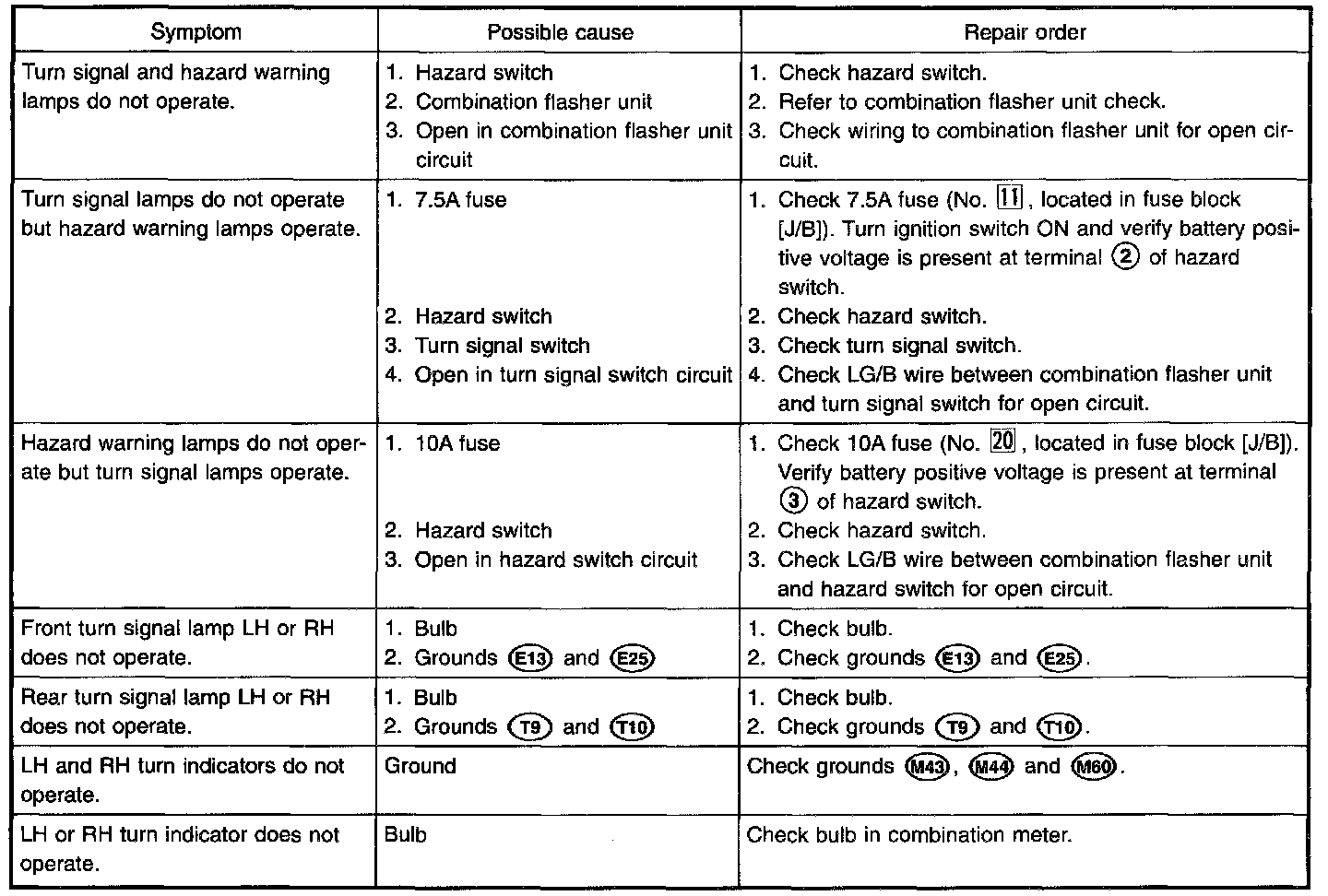

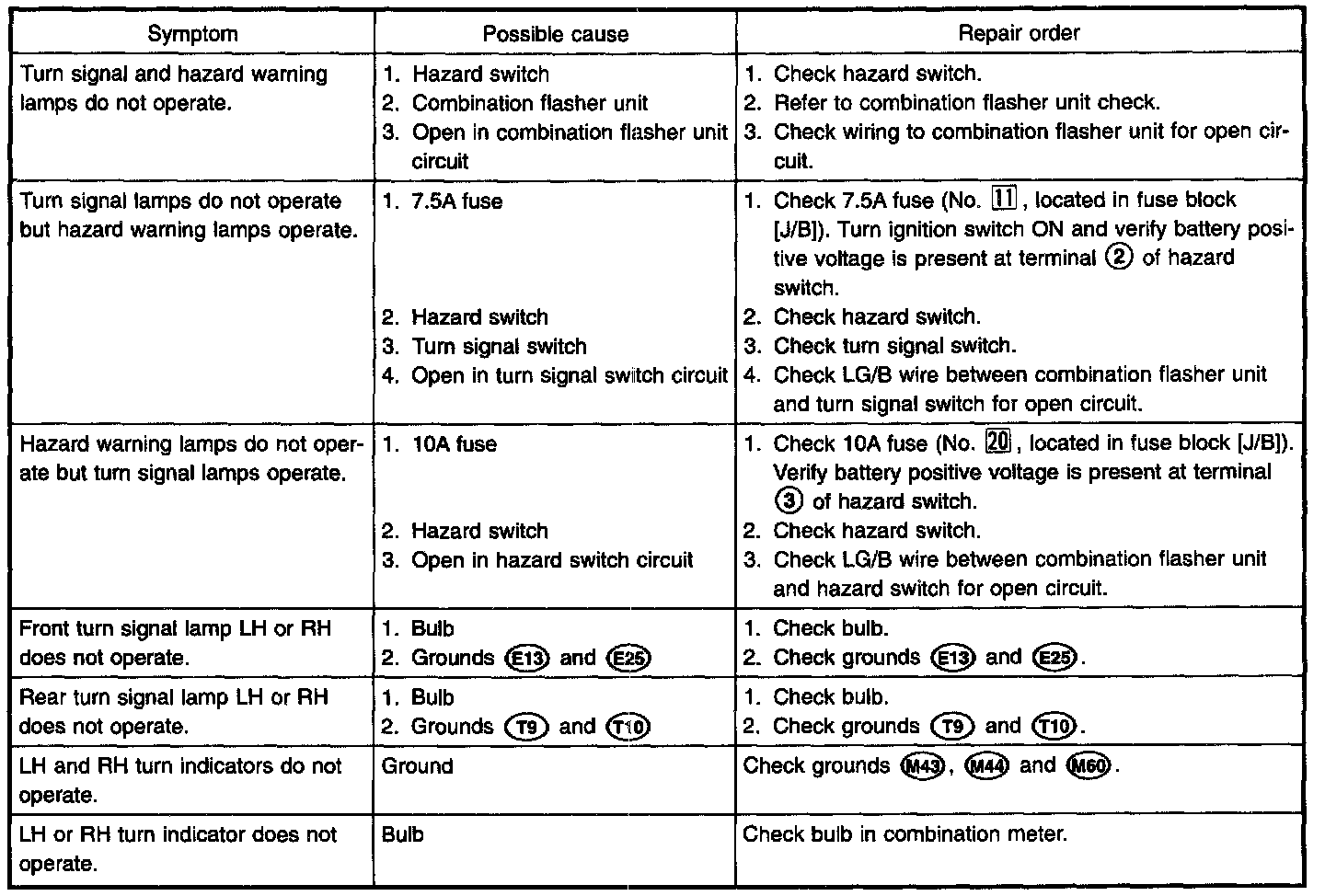

Trouble Diagnosis Chart





Combination Flasher Unit Check
^ Before checking, ensure that bulbs meet specifications.

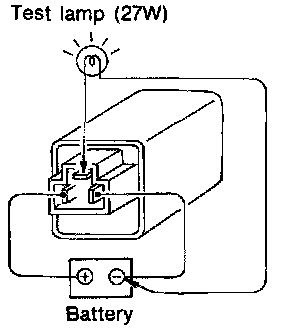

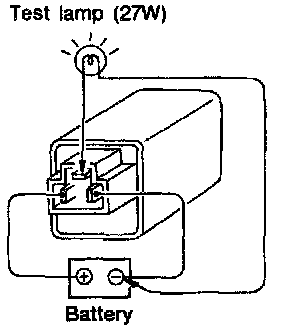

^ Connect a battery and test lamp to the combination flasher unit, as shown. Combination flasher unit is properly functioning if it blinks when power is supplied to the circuit.
