Electrical Diagrams

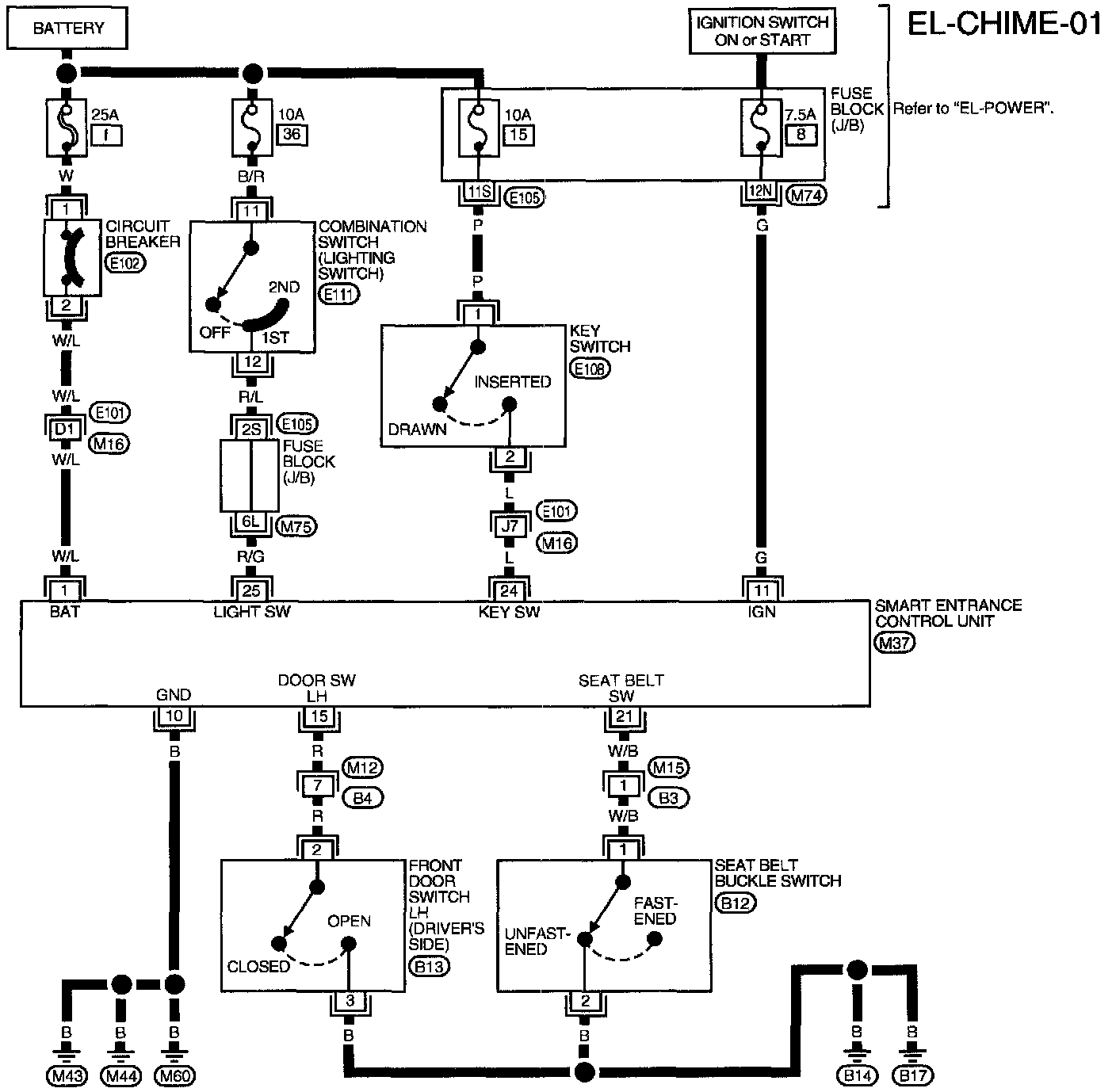

Models With Power Door Locks Circuit Diagram

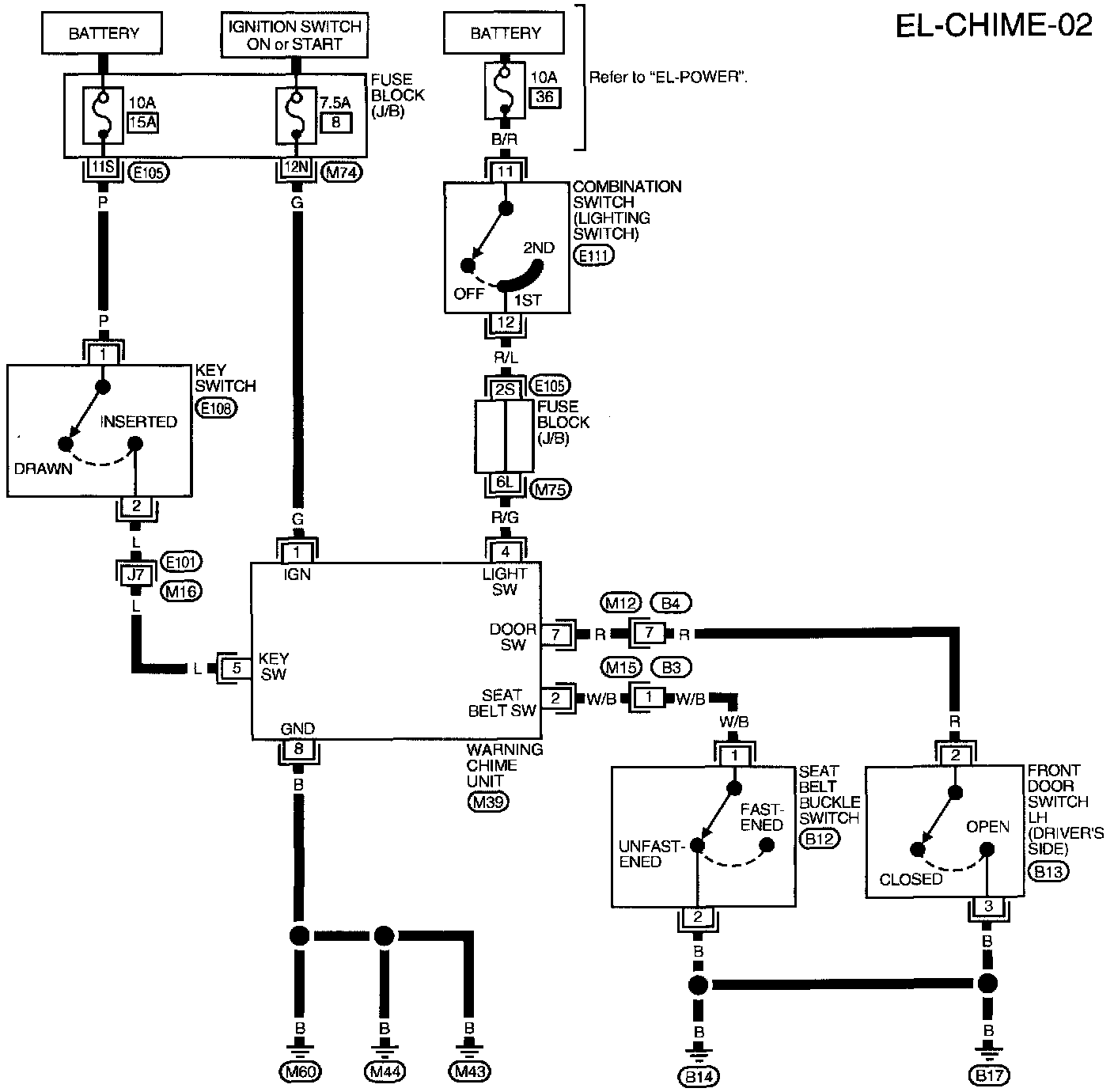

Models Without Power Door Locks Circuit Diagram





Models With Power Door Locks Circuit Connectors





Models Without Power Door Locks Circuit Connectors





E101, M16 Engine Harness and Main Room Harness Terminal Arrangement





M37 Control Units Terminal Arrangements
